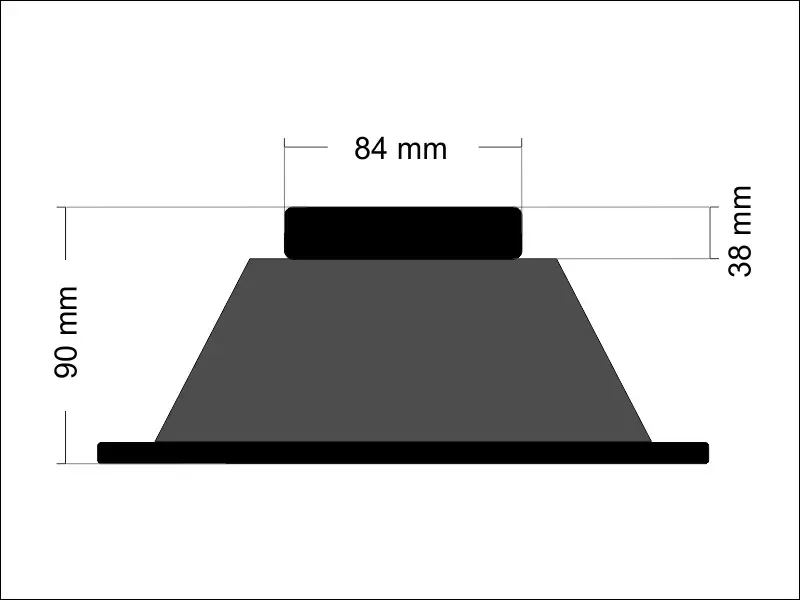

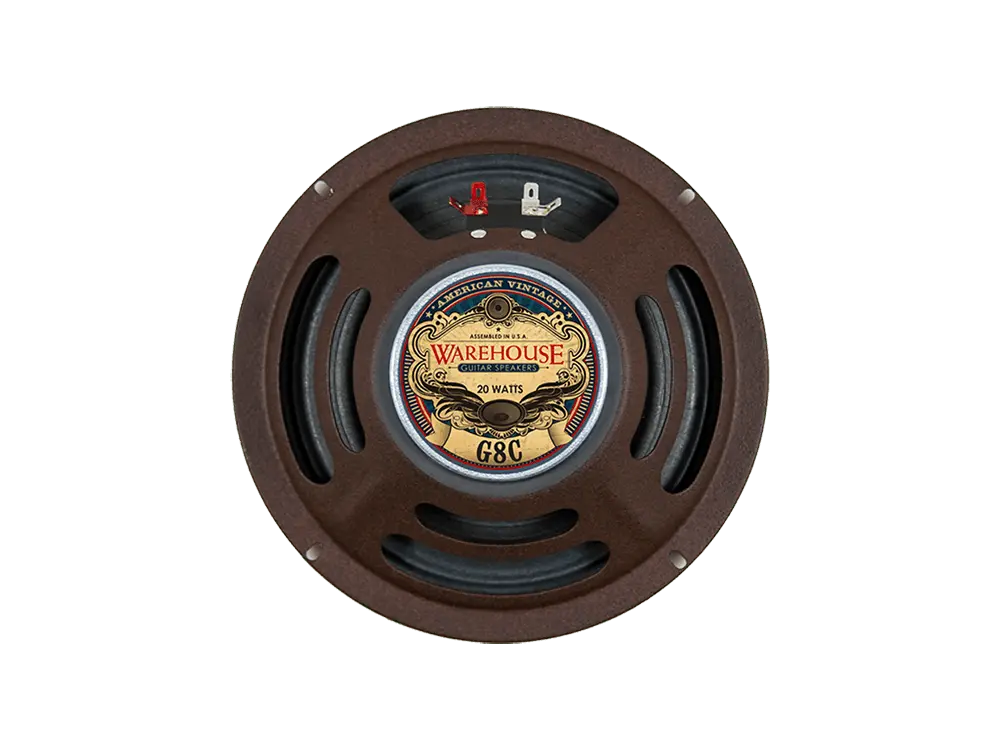

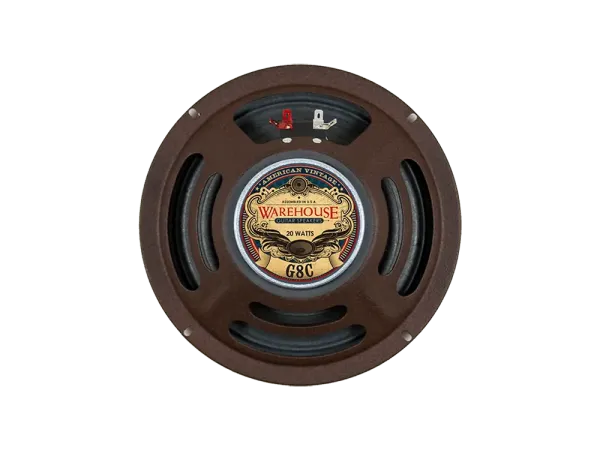

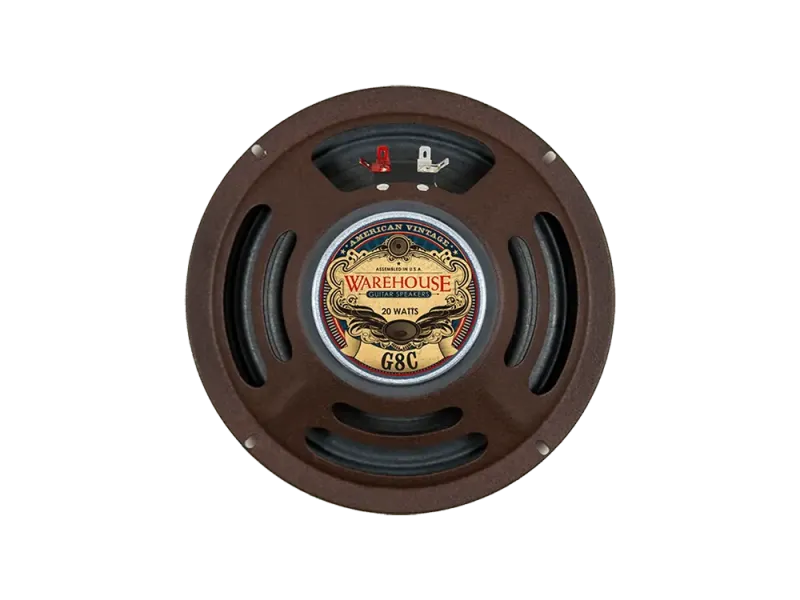

WGS G8C 8" / 20 W / 8 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

• Type: Bias Potentiometer
• Power Rating: 0,25 W log / 0,5 W linear
• Voltage Rating: 250 V DC Audio / 500 V DC linear
• Tolerance: 20%
• Shaft: 6 mm, Solid Shaft (slotted)
• Shaft length: 10 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

Transply, raw material
if you want to engrave by yourself

• Material: 1,5 mm Transply
• Size: 600 x 150 mm
• Colors: black
• Engraving: white

• Output transformer push-pull for 18 Watt amps
• Primary: 8400 Ohm C. T.
• Secondary: 4, 8, 16 Ohm
• Power: 18 Watt

Files:

• Datasheet

Retainer for 12AX7 and tubes with a similar size

• Primary: 230, 240 V @ 50 Hz
• Sec. 1: 600 V C.T. @ 200 mA
• Sec. 2: 6,3 V C.T. @ 5 A
• Sec. 3: 0V - 5V @ 2,5A / 6,3V @ 2A
• Marshall 36 Watt Style

• Datasheet

• Type: Electrolytic capacitor
• Capacitance: 220 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 15 mm x 20 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial
