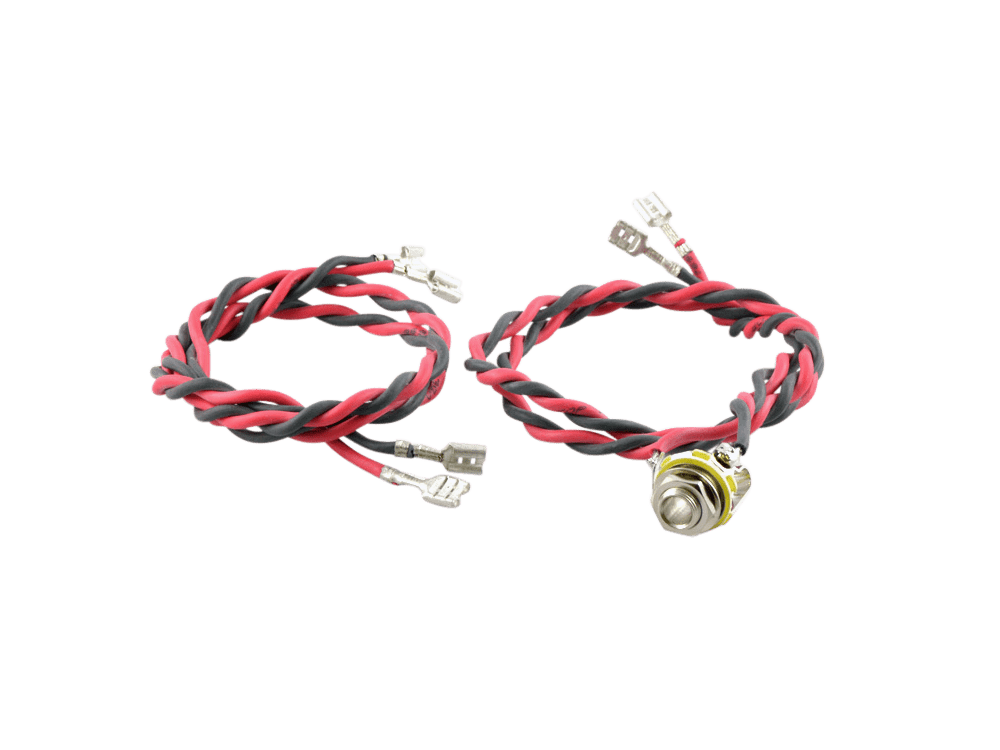

Wiring Harness, mono, for Loudspeakers / 2

Description

Wire Set for internal speaker connection
Number of speakers: 2
Type: Mono, parallel and serial
Wire: 2 x 1,5 mm² red - black
Jack socket / speaker crimps
Length each ca. 55 cm

Manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.

Needed for:

WGS G10C/S 10" / 75 W / 16 Ohm

The G10C/S is the smooth cone version of our G10C. It offers a slightly rounder top end with smoother breakup, while maintaining the punch and clarity you already love in a 10" speaker. It's really great for taming the top end in bright amps with its warm sound and depth in tone.

Thiele-Small Parameters

Resonant Frequency (Fs): 94.49 Hz
DC Resistance (Re): 6.3 Ohm
Coil Inductance (Le): 8 mH
Mechanical Q (Qms): 8.081
Electromagnetic Q (Qes): 0.6081
Total Q (Qts): 0.5655
Compliance Equiv. Vol. (Vas): 1.056 cu ft
Mech. Compliance of Susp. (Cms): 155.752 mm/N
BL Product (BL): T-M
Diaphragm Mass Inc. Airload (Mms): 18.2153 grams
Surface Area of Cone (Sd): 366.0962 cm squared
Sound Pressure Level (spl): 98.02 db

99,00 €

Jensen Jet Blackbird 12" / 100 W / 8 Ohm

Great dynamics, very rich harmonic texture, plenty of warmth, sparkling highs. Warm, smooth and distortion-friendly tone. Deep, fat low end, open, burnished mids and airy, silvery highs. Firm, authoritative and solid, handles well overdrive, bringing out colorful details and holding strong even at maximum distortion. Good definition with lots of high gain. Full-bodied and detailed with clean tones.
Versatile, successfully merging modern and vintage flavours. Can be used in small combos, for very clean, warm sound, and in powerful amps, for well controlled break-up.

Technical Details:

Size: 12"
Impedance: 8 Ohm
Rated Power (RMS): 100 W
Sensitivity @ 1 W, 1 m: 98 dB
Resonance Frequency fs: 95,1 Hz

Files:

229,00 €

Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK

It's hard to escape the sound of the G12H, just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix.

These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. Unsurpassed in a 4x12 for cranking out towering, huge power chords, the Heritage Series G12H (55) features the 55c/s 'bass' cone. This model is famous for its thick syrupy tones, with a deep growling back end, densely complex mid-range and a finely detailed top end.

General Specifications

Nominal diameter: 12", 305mm
Power rating: 30Wrms
Nominal impedance: Available 8Ω or 15Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Voice coil diameter: 1.75", 44.5mm
Magnet type: Ceramic
Magnet weight:50oz, 1.42kg
Frequency range: 55-5000Hz
Resonance frequency, Fs: 55Hz
DC resistance, Re: 6.53Ω and 12.11Ω

Mounting Information

Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Magnet structure diameter: 6.6", 168mm
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 4
Overall depth: 5.3", 135mm
Unit weight: 10.4lb, 4.7kg

169,00 €

Tonespeak Liverpool 1275 12" / 75 W / 16 Ohm

The Liverpool 1275 is the classic British rock tone,inspired by tones from the 80’s. A complex, thick and vocal midrange cuts through the upper-register, while nice, full, lower-mid grunt completes the warm, gutsy, tight lows. The highs, while clear, open and articulate remain warm and ear pleasing.

Spezification:

Nominal Impedance (Z): 16 Ohm
Rated Power IEC268-5: 75 Watt
Sensitivity (@1W/1 m): 100 dB/SPL
Frequency range: 75 – 5000 Hz
Resonant Frequency (Fs): 83 Hz
Voice Coil Diameter: 1,75"

Files:

Datasheet

129,00 €

Tonespeak Belfast 820 8" / 20 W / 4 Ohm

The Belfast 820 provides players and listeners with a well-tailored and satisfyingly clear response. This model gives your tone a defined contour⁠—open and present lows, soft mids, and glassy/articulate highs—that will make your lead and solo lines soar.

Upgrade your 8" guitar speaker cabinet with this high-sensitivity driver, combining a powerful ferrite magnet motor, a 1" copper voice coil, a paper composite cone, a pair of dual terminals for easy connectivity and installation, with a sturdy steel basket to hold it all in place.

British tone guitar speaker

8" (203 mm) steel basket diameter
20 watts, 4 ohm, 97 dB SPL
1" copper voice coil, Kraft paper former
10 oz ferrite magnet
Paper composite cone
Size, Nominal (inch & mm): 8" (203 mm)
RoHS Compliant: Yes
Nominal Impedance (Z) (Ω): 4
Rated Power IEC268-5 (W): 20 Watts
Rated Impedance (Ω): 4
Continuous Power (W): 20
Program Power (W): 40
Frequency Range (Hz): 88 - 11,000
Sensitivity (dB SPL) ¹: 97
Resonant Frequency (Fs) (Hz): 155
DC Resistance (Re) (Ω): 3.4
Voice Coil Inductance (Le) (mH): 0.12
Mechanical Q Factor (Qms): 15.49
Electrical Q Factor (Qes): 1.77
Total Q Factor (Qts): 1.59
Mechanical Resistance (Rms) (kg/s): 0.58
Compliance Equivalent Volume (Vas) (L): 8.31
Suspension Compliance (Cms) (mm/N): 0.11
Surface Area of Diaphragm (Sd) (cm²): 226.98
Moving Mass (Mms) (gm): 9.22
Magnetic Gap Height (mm): 6.0
Coil Winding Height (mm): 6.35
Motor Force Factor (BL) (T•M): 4.17
Efficiency (η₀) (%): 1.69
Efficiency Bandwidth Product (EBP) (Fs/Qes): 87.88
Basket Type: Stamped steel with black powder coating
Terminal Size (mm): 5.2 x 0.5
Voice Coil Diameter (mm): 25.4
Voice Coil Wire Material: copper
Voice Coil Former Material: Kraft paper
Voice Coil Winding Style: Single Layer
Magnet Material: Ferrite
Magnet Weight (g): 283.5
Cone Body Material: Paper composite
Dust Cap Material: Paper
Spider Material: Cotton
Net Weight (kg): 1.02

49,00 €

WGS Retro 30 12" / 75 W / 8 Ohm

The 12” Retro 30™ speaker is a brighter and more articulate version of the WGS Veteran 30™ speaker. The Retro 30™ also boasts deeper and tighter bottom end. This speaker is extremely versatile and comes alive on the dirty channel. For those who love to mix speakers, you should pair this with the Reaper™ or the ET65™.

Unit Weight: 10 pounds

Mounting Information

Diameter: 12.2”
Overall depth: 5.3”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8

Thiele-Small Parameters

Resonant Frequency (Fs): 103.76 Hz
DC Resistance (Re): 8.04 Ohm
Coil Inductance (Le): 0.33 mH
Mechanical Q (Qms): 9.73
Electromagnetic Q (Qes): 0.75
Total Q (Qts): 0.70
Compliance Equiv. Vol. (Vas): 16.28 cu ft
Mech. Compliance of Susp. (Cms): 0.09 mm/N
BL Product (BL): 13.85 T-M
Diaphragm Mass Inc. Airload (Mms): 27.48 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.63 db

129,00 €

Jensen C12K - 8 Ohms

CERAMIC Vintage

The JENSEN® "C" series speakers were developed because the world's supply of cobal (Co in AlNiCo) slump, making this raw material more expensive. While ceramic magnets are larger in size than comparable AlNiCo magnets of the same gauss strenght, their cost is lower. "C" series JENSEN® speakers use same cones and voice coils comparable to our AlNiCo series speakers, thus providing a similar tone but at a reduced price.

Technical Details:

Size: 12"
Impedance: 8 Ohm
Rated Power (RMS): 100 W
Sensitivity @ 1 W, 1 m: 99,1 dB
Resonance Frequency fs: 104 Hz

Files:

Datasheet

118,00 €

Jensen Jet Blackbird 12" / 40 W / 16 Ohm

The 40 watt version of the Jensen Blackbird has smoother top end compared to the 100 watt version, making it suitable not only for crisp clean sounds but also good for crunchy leads.

Gene: Blues, Jazz, Rock'n Roll, Rockabilly

Technical Details:

Size: 12"
Impedance: 16 Ohm
Rated Power (RMS): 40 W
Sensitivity @ 1 W, 1 m: 96 dB
Resonance Frequency fs: 93,2 Hz

Thiele/Small Parameter (8 Ohm Version)

Re: 5.9 Ω
Fs: 93.2 Hz
Qms: 14.29
Mms: 28.7 g
Qts: 1.36
Bxl: 8.20 Tm
Cms: 102 µm/N
Sd: 490.9 cm²
Vas: 34.6 l
Le (1kHz): 0.40 mH

210,00 €

WGS G12Q 12" / 20 W / 8 Ohm

Building on the popularity of our G12C, we developed the G12Q for those times when you want the speaker to add some natural, vintage breakup but maintain clarity. With a 20 oz magnet and a 1" voicecoil, the G12Q definitely has a vintage American flavor. We highly recommend it with 5E3 style circuits.

Thiele-Small Parameters

Resonant Frequency (Fs):91.91 Hz
DC Resistance (Re): 7.70 Ohm
Coil Inductance (Le): 0.26 mH
Mechanical Q (Qms): 20.75
Electromagnetic Q (Qes): 2.64
Total Q (Qts): 2.35
Compliance Equiv. Vol. (Vas): 22.17 cu ft
Mech. Compliance of Susp. (Cms): 0.12 mm/N
BL Product (BL): 6.57 T-M
Diaphragm Mass Inc. Airload (Mms): 25.71 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 95.92 db

89,00 €

Jensen P10Q - 8 Ohms

The "Living legends" of Rock and Roll guitar sounds are back! Original designs of the late 40's and early 50's have been recreated using many of the original parts suppliers. Highly efficient AlNiCo magnets and seamed paper cones are the foundation for the famous JENSEN® Sound. JENSEN® "P" Series Vintage AlNiCo magnet speakers represent an important contribution to the paste, present and, no doubt, the future of rock and roll music. They are loved by generations of guitarists around the world.

Technical Details:

Size: 10"
Impedance: 8 Ohm
Rated Power (RMS): 40 W
Sensitivity @ 1 W, 1 m: 93,8 dB
Resonance Frequency fs: 89,9 Hz
Bell: No Bell

Files:

Datasheet

135,00 €

Jensen C12 Nighthawk 12" / 70 W / 8 Ohm

Jensen Jet C12 Nighthawk

The Nighthawk – together with its Neo sibling, the Tornado Stealth 65 – is the only Jensen speaker fit with a 44mm (1 ¾”) voice coil. We selected this unique voice coil size as it is one of the key factors for a true rock-oriented tonal character. The Nighthawk lends itself greatly to any kind of classic and modern rock including focused, bright cleans, pushed crunch chords and singing lead tones.

Technical Details:

Size: 12"
Impedance: 8 Ohm
Rated Power (RMS): 75 W
Sensitivity @ 1 W, 1 m: 98,8 dB
Resonance Frequency fs: 83 Hz

129,00 €

Jupiter 12LC 12" / 50 W / 8 Ohm

Vintage American Ceramic Guitar Speaker
12" seamed cone with Large Ceramic Magnet, upgrade replacement for Jensen C12N.

Magnet: Large Ceramic
Power: 50 W
Sensitivity: 99,5 dB
Weight: 3,4 kgs
VC Diameter: 1.5″
8 Ohm

135,90 €

Jupiter 10SC 10" / 25 W / 16 Ohm

Vintage American Ceramic Guitar Speaker
10" seamed cone speaker with a small ceramic motor, an upgrade replacement for Jensen C10R.

Power: 25 W
Small ceramic magnet
weight: 1,4 kg
VC diameter: 1"
sensitivity: 96,5 dB
16 Ohm

89,00 €

WGS Reaper 12" / 30 W / 16 Ohm

The 12” Reaper™ guitar speaker is a DROP IN REPLACEMENT for Celestion™ G12H30 Anniversary Edition. This speaker sounds like a Green Beret on steroids. Cone breakup does not occur as early as the Green Beret. This speaker sounds great mixed with a Green Beret, Veteran 30, or by itself.

Unit Weight: 10 pounds

Mounting Information

Diameter: 12.2”
Overall depth: 5.3”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8

Thiele-Small Parameters

Resonant Frequency (Fs): 126.60 Hz
DC Resistance (Re): 8.20 Ohm
Coil Inductance (Le): 0.33 mH
Mechanical Q (Qms): 8.56
Electromagnetic Q (Qes): 1.01
Total Q (Qts): 0.90
Compliance Equiv. Vol. (Vas): 10.52 cu ft
Mech. Compliance of Susp. (Cms): 0.06 mm/N
BL Product (BL): 13.58 T-M
Diaphragm Mass Inc. Airload (Mms): 28.57 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.04 db

129,00 €

Jupiter 12SC Ribbed Cone 12" / 25 W / 16 Ohm

Vintage American Ceramic Guitar Speaker – Super Ribbed Cone
12" seamed cone speaker with a small ceramic motor, an upgrade replacement for Jensen C12R.

Magnet: Small Ceramic
Power: 25W
Sensitivity: 97.5dB
Weight: 1,7 kg
VC Diameter: 1″
16 Ohm

115,00 €

Jupiter M10C-P Midnight 10" / 25 W / 4 Ohm - Paper Coil

10" seamed ribbed cone with Large Ceramic Magnet, the replacement for C10N, paper voice coil.
Similar to the 10LC but with less output but a more balanced sound, with more sparkle on the top end. A slightly smoother sound that retains headroom.
Originally intended for studio or home use, many musicians claim it to be the closest to the original C10N from 4 and 5 decades ago.
Paper voice coil versions are most similar to the originals and impart a woody tone that is flatter when directly compared to our standard coil.

129,00 €

Celestion G12H Anniversary 12" / 30 W / 16 Ohm - MADE IN UK

Originally re-released a little over a decade ago, the G12H remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.

With a strong, aggressive low-end and powerful low-mids, the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones, easily cutting through loud stage levels for chord work, and imparting a hard edge to single notes.

A favourite in the 'boutique' amplifier market, the G12H is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

General Specifications

Nominal diameter: 12", 305mm
Power rating: 30Wrms
Nominal impedance: Available 8Ω or 16Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Voice coil diameter: 1.75", 44.5mm
Voice coil material: Round copper
Magnet type: Ceramic
Magnet weight: 50oz, 1.42kg
Frequency range: 75-5000Hz
Resonance frequency, Fs: 85Hz
DC resistance, Re: 6.7Ω and 13.1Ω

Mounting Information

Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Magnet structure diameter: 6.1", 156mm
Mounting slot dimensions: 0.31",7.9mmØ
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 4
Overall depth: 5.3", 135mm
Unit weight: 10.4lb, 4.7kg

149,00 €

Jupiter 10LC 10" / 50 W / 4 Ohm

Vintage American Ceramic Guitar Speaker
10" seamed ribbed cone with Large Ceramic Magnet, the replacement for Jensen C10N.

Large Ceramic Magnet
Power: 50 W
Sensitivity: 99 dB
Weight: 3,17 kgs
VC Diameter: 1.5″
4 Ohm

115,00 €

Jupiter M10C-P Midnight 10" / 25 W / 8 Ohm - Paper Coil

129,00 €

Celestion G15V-100 Fullback 12“ / 100 W / 16 Ohm

With a larger cone delivering an extended low end response the 100-watt Fullback has a big deep voice delivering smooth and expressive tones seemingly without effort.
While retaining our classic harmonically complex and finely detailed mid-range the larger 15 cone of the Fullback shifts this characteristic down a register. Clean sounds are warm and expressive revealing and enhancing the
qualities of your amp and guitar without unnecessary colouration. Overdrive sounds are complex and musical; push harder for a weighty contralto growl with a softer warmer mid-range.
Incorporating an eight hole chassis the Fullback is the ideal choice whether you’re looking for the perfect upgrade for your 15 combo or you’re looking for an interesting tonal alternative to a 12 guitar speaker.

Specifications

Nominal diameter 381mm / 15in
Power rating 100W
Rated impedance 8Ω or 16Ω
Sensitivity 99dB
Chassis type Pressed steel
Magnet type Ceramic
Magnet weight 1.42kg / 50oz
Voice coil diameter 2in / 50mm
Voice coil material Round copper
Frequency range 65-4000Hz
Resonance frequency, Fs 85Hz
DC resistance, Re 6.4Ω

Mounting Information

Cut-out diameter 351mm / 13.8in
Diameter 385mm / 15.2in
Magnet structure diameter 156mm / 6.1in
Mounting hole dimensions 9.2x7.9mm / 0.36x0.24in
Mounting hole PCD 369mm / 14.6in
Number of mounting holes 8
Chassis depth (inc gasket) 117mm / 4.58in
Magnet depth 36mm / 1.42in
Overall depth 152.9mm / 6.0in
Unit weight 4.8kg / 10.6lb

170,00 €

Jupiter 12LC 12" / 50 W / 16 Ohm

Vintage American Ceramic Guitar Speaker
12" seamed cone with Large Ceramic Magnet, upgrade replacement for Jensen C12N.

Magnet: Large Ceramic
Power: 50 W
Sensitivity: 99,5 dB
Weight: 3,4 kgs
VC Diameter: 1.5″
16 Ohm

135,90 €

Celestion G12H-75 Creamback - 12" / 75W / 8 Ohm - MADE IN UK

Back in the late 60s, the G12H was created by fixing an 'H' type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an 'H' magnet to the G12M-65 Creamback, create a speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone, with a tighter low end than the G12M-65 Creamback and a punchier, more dynamic high end. The H magnet brings additional focus, body and girth to the Creamback tone. It thickens single notes, resulting in a highly articulate, vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4x12 cab!

General Specifications

Nominal diameter: 12", 305mm
Power rating: 75W
Nominal impedance: Available 8Ω or 16Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Voice coil diameter: 1.75", 44.5mm
Magnet type: Ceramic
Magnet weight: 50oz, 1.42kg
Frequency range: 70-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, Re: 6.37Ω and 12.5Ω
Voice coil former material: Round copper

Mounting Information

Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Magnet structure diameter: 6.6", 168mm
Mounting slot dimensions: 0.31", 7.9mm Ø
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 8
Overall depth: 5.4", 138mm
Unit weight: 10.4lb, 4.7kg

149,00 €

Jensen Jet Tornado Neodym 12" / 100 W / 8 Ohm

One of the most versatile speakers available in the market today. With tight and focused low end, produces crystal, clear and clean tones with sweet highs and good depth and warmth, accented by shimmering but never too brittle highs and a warm harmonic tone. Articulate, when presented with overdrive distortion notes remain well defined with lots of bite. Very responsive, can be used in all types of music and at all levels of play. Excellent for 4 x 12 cabinets and combos, thanks to its limited weight. Excellent performer for both solid state and tube amplifiers, thanks to its modern power handling and tone balance.

Technical Details:

Size: 12"
Impedance: 8 Ohm
Rated Power (RMS): 100 W
Sensitivity @ 1 W, 1 m: 97,3 dB
Resonance Frequency fs: 72,4 Hz

Files:

Datasheet

179,00 €

WGS G8A 8" / 20 W / AlNiCo / 8 Ohm

The brand new G8A Alnico from Warehouse Guitar Speakers. Highly recommended for the Champ, Vibro Champ, and many other 8" combos.

Impedance: 8 Ohm
Power: 20 Watt

129,00 €

Customers who bought this product bought also the following products:

TT 12AT7 / ECC81 - Classic V1

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Warm and balanced overall sound, paired with high resolution and brilliance, which is why the TT12AT7 achieves the best results in both instrumental and audio/high-end amplifiers.

Features:

Warm and balanced sound
Excellent sound resolution and brilliance
Ideal for instrumental and audio/high-end amplifiers

Hint;
Often, 12AU7 and 12AT7 types are used instead of 12AX7 tubes in order to either reduce the overall power of the amplifier or just take back the overdrive of the preamp. Especially the 12AU7 brings a very large tonal difference compared to a 12AX7, which is usually much greater than when switching from a 12AX7 to 5751 or 12AT7.

When using a 12AU7 in a driver stage that is normally designed for 12AX7, the overall power of the power amp is usually reduced. How big this difference is depends on the amplifier or circuit. For example, a Marshall with a 12AX7 in the phase inverter stage set to volume 5 will then reach the same volume with a 12AU7 set to volume 6 (perceived volume, not measured).

Electrical Characteristics

Heater Voltage (Uf): 6.3V or 12.6V
Heater Current (If): 300mA at 6.3V, 150mA at 12.6V
Anode Voltage (Ua): Maximum 300V
Grid Voltage (Ug1): -2V (typical)
Anode Current (Ia): 10mA (typical)
Anode Power Dissipation: Maximum 2.5W per triode
Anode Resistance (ra): 11kΩ
Amplification Factor (μ): 60
Transconductance (S): 5.5mA/V
Input Capacitance (Cin): 1.6pF
Output Capacitance (Cout): 1.6pF

Mechanical Characteristics

Socket: B9A (Noval)
Number of Pins: 9

Pin Configuration

1 Anode (Triode 1)
2 Grid (Triode 1)
3 Cathode (Triode 1)
4 Heater (f)
5 Heater (f)
6 Anode (Triode 2)
7 Grid (Triode 2)
8 Cathode (Triode 2)
9 Center Heater (f)

Application Notes

Heater Operation: The tube can be operated with either 6.3V or 12.6V, depending on the circuit design.
Grid Resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable operation.
Coupling Capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high frequency disturbances.

18,20 €
