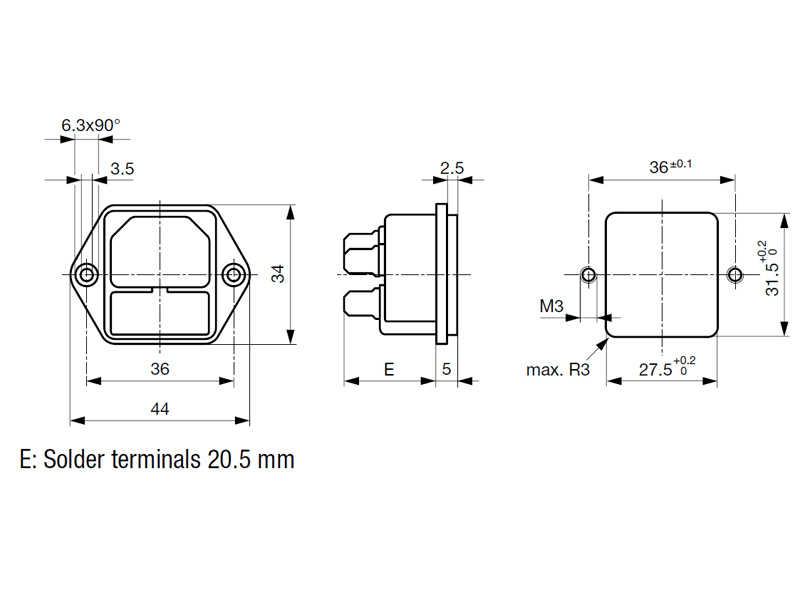

Power Jack IEC320 / C14 w/ fuseholder, Schurter

• 2 x screw M3 x 10 mm
• 2 x nut M3
• 2 x tooth lock washers

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 100 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

• Primary: 120, 230 & 240 V @ 50 Hz
• Sec. 1: 720 V C.T. @ 400 mA, 60 V Bias Tap
• Sec. 2: 6,3 V C.T. @ 7,5 A
• Sec. 3: 6,3 V C.T. @ 3 A

• Datasheet

• Primary Imp.: 2.2 kOhm
• Primary Ind.: 18.5 H
• Secondary: 4, 8 and 16 Ohm
• Power: 100 Watt

Files:

• Datasheet

• Type: Bias Potentiometer
• Power Rating: 0,25 W log / 0,5 W linear
• Voltage Rating: 250 V DC Audio / 500 V DC linear
• Tolerance: 20%
• Shaft: 6 mm, Solid Shaft (slotted)
• Shaft length: 10 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• screw-mount for internal installation.
• White
• Material PA 6.6
• max. harness diameter: 6,3 mm

• Size: 120 x 100 x 31 mm
• Color: black

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 25 + 25 µF
• Voltage Rating: 25 V
• Tolerance: -10% +30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 49 mm
• Termination Style: axial

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial
