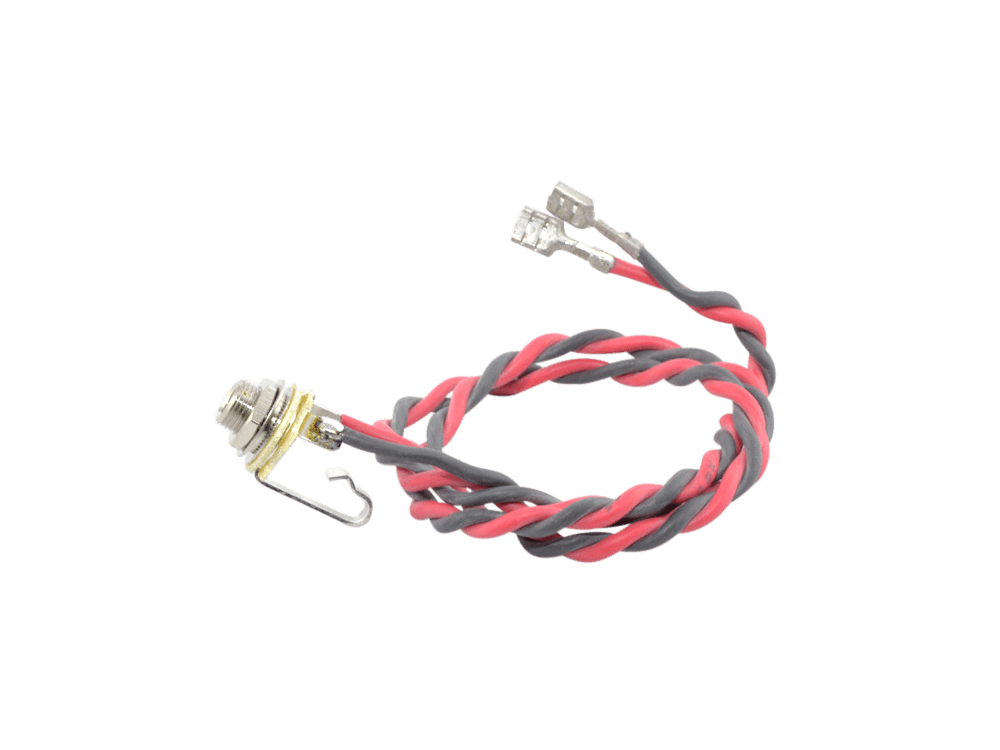

Wiring Harness, mono, for Loudspeaker / 1

Vintage American Ceramic Guitar Speaker
12" seamed cone with Large Ceramic Magnet, upgrade replacement for Jensen C12N.

• Magnet:  Large Ceramic
• Power: 50 W
• Sensitivity: 99,5 dB
• Weight: 3,4 kgs
• VC Diameter: 1.5″
• 16 Ohm

One of the most versatile speakers available in the market today. With tight and focused low end, produces crystal, clear and clean tones with sweet highs and good depth and warmth, accented by shimmering but never too brittle highs and a warm harmonic tone. Articulate, when presented with overdrive distortion notes remain well defined with lots of bite. Very responsive, can be used in all types of music and at all levels of play. Excellent for 4 x 12 cabinets and combos, thanks to its limited weight. Excellent performer for both solid state and tube amplifiers, thanks to its modern power handling and tone balance.

Technical Details:

• Size: 12"
• Impedance: 8 Ohm
• Rated Power (RMS): 100 W
• Sensitivity @ 1 W, 1 m:    97,3 dB
• Resonance Frequency  fs: 72,4 Hz

Files:

• Datasheet

The original G12M of the 1960s was Celestion's first guitar speaker to use a ceramic magnet and paved the way for high power guitar amplifiers. The G12M uses a medium weight magnet to produce a sound that is smooth and warm but bright enough to hold its own against any rock backline.Known simply these days as the 'Greenback', the G12M's fabled 'brown tone' is characterised by a warm, controlled low-end, a rich, vocal mid-range and a delicate, detailed top-end. Loaded into a 4x12 and driven hard, these speakers exude warm, crunchy chords and sweet searing single-notes

General Specifications

• Nominal diameter: 12", 305mm
• Power rating:20Wrms
• Nominal impedance: 8Ω and 15Ω
• Sensitivity: 96dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.57Ω and 12.13Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.9", 150mm
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.1", 130mm
• Unit weight: 7.9lb, 3.6kg

The G10C is a 10" ceramic speaker with a 35 oz magnet and seamed cone.

Unit Weight: 7 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 79.61 Hz
• DC Resistance (Re): 6.3 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 7.7956
• Electromagnetic Q (Qes): 0.6822
• Total Q (Qts): 0.6273
• Compliance Equiv. Vol. (Vas): 1.349 cu ft
• Mech. Compliance of Susp. (Cms): 198.897 mm/N
• BL Product (BL): 9.92 T-M
• Diaphragm Mass Inc. Airload (Mms): 20.0945 grams
• Surface Area of Cone (Sd): 366.0962 cm squared
• Sound Pressure Level (spl): 96.35 db

Building on the platform of the Blue the Gold is a higher-powered Alnico-magnet guitar speaker that recreates the unmistakable sonic signature of a ‘well played-in’ original.
Over time the high frequencies of a Blue soften and become less chalky as the cone becomes more flexible – a much sought after characteristic that the Gold exhibits straight out of the box.

Also present in the Gold sound from the outset is an added warmth and complexity in the midrange which coupled with the classic Alnico qualities of a laid-back attack rounded low end and brilliant bell-like highs deliver huge rhythm voicings and saturated vocal lead tones.
The Gold is a wonderfully expressive and revealing loudspeaker affording guitarists an unprecedented degree of dynamic control.

Specifications

• Nominal diameter 305mm / 12in
• Power rating 50W
• Rated impedance 8Ω or 15Ω
• Sensitivity 100dB
• Chassis type Pressed steel
• Magnet type Alnico
• Voice coil diameter 1.75in / 44.5mm
• Voice coil material Round copper
• Frequency range 75-5000Hz
• Resonance frequency, Fs 75Hz
• DC resistance, Re 6.4Ω or 11.8Ω

Mounting Information

• Cut-out diameter 283mm / 11.1in
• Diameter 309mm / 12.2in
• Magnet structure diameter 128mm / 5.0in
• Mounting hole dimensions 7.9mm / 0.31in Ø
• Mounting hole PCD 297mm / 11.7in
• Number of mounting holes 4
• Chassis depth (inc gasket) 92mm / 3.63in
• Magnet depth 73mm / 2.87in
• Overall depth 165mm / 6.5in
• Unit weight 4.2kg / 9.3lb

The 12” Reaper™ guitar speaker is a DROP IN REPLACEMENT for Celestion™ G12H30 Anniversary Edition. This speaker sounds like a Green Beret on steroids. Cone breakup does not occur as early as the Green Beret. This speaker sounds great mixed with a Green Beret, Veteran 30, or by itself.

Unit Weight:  10 pounds

Mounting Information

• Diameter: 12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 126.60 Hz
• DC Resistance (Re): 8.20 Ohm
• Coil Inductance (Le): 0.33 mH
• Mechanical Q (Qms): 8.56
• Electromagnetic Q (Qes): 1.01
• Total Q (Qts): 0.90
• Compliance Equiv. Vol. (Vas): 10.52 cu ft
• Mech. Compliance of Susp. (Cms): 0.06 mm/N
• BL Product (BL): 13.58 T-M
• Diaphragm Mass Inc. Airload (Mms): 28.57 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.04 db

Combining a hemp cone specifically chosen for its tonal character and a medium-weight ceramic magnet, the G12M-50 Hempback represents an exciting new development in Celestion’s never-ending pursuit of outstanding tone. Distinctive and well-defined, the Hempback delivers a balanced low end, plenty of mid-band character together with smooth, silky highs.
Targeted for use in American voiced amps, for example in combos such as a Deluxe Reverb® or Blues Jr.®, to deliver true American-flavoured tone and cleans that are second to none. Load up a Hempback for a sweet and smoky sound that’s musical and responsive, and let your hemp tone shine through.

Tube-Town's Quick-Test (as of Feb 2023):
Speakers with hemp cone have been around for years, but somehow they never really caught on. To our European ears they usually sound a bit muffled, sometimes even dull and also a bit lifeless, which is why the expectations for the Celestion Hempback were not particularly high, but the surprise was then all the greater.
The Hempack was tested in an open 112 REX powered by a TT JC18. The guitar used was a Tele with hot pickups. In this configuration, the speaker delivered wide and balanced sound right out of the box, no overemphasis or annoying frequencies.
The bass was clear, the Tele's low strings came through strong yet defined, the mids were round but not overbearing, and the highs were convincing with a pleasant yet restrained presence. And even at gain setting 10 there was no cause for complaint (as long as you didn't turn the treble control on the amp too far to the right). The sound was round and without sawing highs, but still had its own character and enough bite to assert itself in a band context.

Conclusion: In the environment specified by Celestion (open cabinet or combo), the Hempback can convince with a balanced sound image, and that with both clean and heavier sounds. It is fun to play it. The 50 watts of the speaker are perfectly sufficient for a variety of amplifiers and a sensitivity of 99 dB is not exactly little either, and the weight of 3.5 kg makes itself felt positively especially with combos, especially if you have to move them often.
So all in all: thumbs up.

General Specifications

• Nominal diameter: 305mm / 12in
• Power rating: 50W
• Rated impedance: 8Ω or 16Ω
• Sensitivity: 99dB
• Chassis type: Pressed steel
• Magnet type: Ceramic
• Magnet weight: 0.9kg / 35oz
• Voice coil diameter: 1.75in / 44mm
• Voice coil material: Round copper
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.17Ω & 12.95Ω

Mounting Information

• Cut-out diameter: 283mm / 11.1in
• Diameter: 309mm / 12.2in
• Magnet structure diameter: 150mm / 5.9in
• Mounting hole dimensions: 7.9mm / 0.31in Ø
• Mounting hole PCD: 297mm / 11.7in
• Number of mounting holes: 8
• Chassis depth (inc gasket): 91mm / 3.58in
• Magnet depth: 39mm / 1.52in
• Overall depth: 130mm / 5.1in
• Unit weight: 3.6kg / 7.9lb

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced.

General Specifications

• Nominal diameter: 10", 254mm
• Power rating: 45W Nominal
• Impedance: 8Ω
• Sensitivity: 96dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 14oz
• Frequency range: 95-5500Hz
• Resonance frequency, Fs: 98Hz
• DC resistance, Re: 6.4Ω

Mounting Information

• Cut-out diameter: 9.0", 229mm
• Diameter: 10.0", 254mm
• Magnet structure diameter: 4.9", 124mm
• Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 8
• Overall depth: 4.0", 102mm
• Unit weight: 3.5lb, 1.6kg

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

The high-power 12” BlackHawk™ alnico speaker has arrived! Now your 1x12” 100 watt amp can really purr.... This guitar speaker will give your amp pristine top end, tight mids, and all just the right amount of warmth and bottom end.
Drop in replacement for EV™ SRO™ speaker.

Unit Weight:  9 pounds

Mounting Information

• Diameter: 12.2”
• Overall depth: 6.4”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 88.14 Hz
• DC Resistance (Re): 7.84 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 6.32
• Electromagnetic Q (Qes): 1.03
• Total Q (Qts): 0.88
• Compliance Equiv. Vol. (Vas): 21.04 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 11.16 T-M
• Diaphragm Mass Inc. Airload (Mms): 29.46 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.26 db

The Neo V-Type has been designed to be a cost-effective, lightweight neodymium magnet guitar speaker option both for manufacturers and for after-market upgrades, with no compromise on tone.

This sweet sounding speaker has a superbly balanced sonic signature that imparts a vintage musicality to your tone. Clean sounds have just the right amount of upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and some raw rhythmic grind, but expect a little extra definition and note separation for your searing, single note lead lines thanks to some neodymium magnet magic.

Specifications

• Nominal diameter: 305mm/12in
• Power handling: 70W
• Nominal impedance: 8Ω or 16Ω
• Sensitivity: 98dB
• Chassis type: Pressed Steel
• Voice coil diameter: 44mm/1.75in
• Voice coil material: Round copper
• Magnet type: Neodymium
• Frequency range: 75Hz-5000Hz
• Resonance Frequency: 75Hz

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 510 x 420 x 240 mm
• 1 x 12"
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.  7,5 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

The G8C ceramic speaker will breathe new life into your small combo.  This little monster puts out some serious sound. A serious upgrade for your Fender Champ.

Thiele-Small Parameters

• Resonant Frequency (Fs): 148.07 Hz
• DC Resistance (Re): 6.7 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 9.6715
• Electromagnetic Q (Qes): 0.9538
• Total Q (Qts): 0.8682
• Compliance Equiv. Vol. (Vas): 0.257 cu ft
• Mech. Compliance of Susp. (Cms): 110.714 mm/N
• BL Product (BL): T-M
• Diaphragm Mass Inc. Airload (Mms): 10.4353 grams
• Surface Area of Cone (Sd): 214.0839 cm squared
• Sound Pressure Level (spl): 95.78 db

The G12M Greenback is perhaps the definitive vintage Celestion ceramic magnet guitar speaker. Developed in the mid-sixties, it was quickly adopted by players like Hendrix, Clapton, Beck and Page, who typified the louder and more aggressive blues rock playing styles that came to characterize that era.The G12M-65 Creamback produces the familiar woody G12M tone, but handles greater power making it ideally suited for today's amps, when a vintage tone is desired. The increased power handling brings with it low end grunt complementing the warm and vocal mid range, crunchy upper- mids and sweet, refined highs.

General Specifications

• Nominal diameter: 12", 305mm
• Power rating: 65Wrms
• Nominal impedance: 8Ω & 16Ω
• Sensitivity: 97dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.7Ω & 13.1Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.9", 150mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 8
• Overall depth: 5.1", 130mm
• Unit weight: 7.9lb, 3.6kg

Vintage American Ceramic Guitar Speaker
10" seamed cone speaker with a small ceramic motor, an upgrade replacement for Jensen C10R.

• Power: 25 W
• Small ceramic magnet
• weight: 1,4 kg
• VC diameter: 1"
• sensitivity: 96,5 dB
• 16 Ohm

Punch Sound speakers offer great dynamics and super-fast response, giving the player an extremely solid bass sound.
Equipped with ferrite magnets and steel baskets, they are ideal for classic styles where a clean, tight and bright sound is required.

Specifications

• Nominal Diameter: 385 mm / 15 in
• Nominal Impedance: 8 Ω
• Rated Power AES: 250 W
• Continuos Program Power: 500 W
• Sensitivity @ 1W/1m: 96.7 dB
• Voice Coil Diameter: 65 mm (2.5")
• Voice Coil Winding Depth: 13 mm
• Magnetic Gap Depth: 8 mm
• Flux Density: 1.15 T
• Magnet Weight: 1450 g
• Net Weight: 5.4 Kg
• Magnet Type: Ferrite
• Basket Material: Pressed Sheet Steel
• Voice Coil Winding Material: Copper
• Voice Coil Former Material: Aluminium
• Cone Material: Paper
• Cone Treatment: No
• Surround Material: Treated Cloth
• Dust Dome Material: Solid Paper

Thiele & Small Parameters

• Re: 6.60 Ω
• Qms: 4.26
• Qts:0.51
• Cms: 164 µm/N
• Vas: 133.1 l
• X max: +/- 3.4 mm
• N: 2.30 %
• Fs: 47.0 Hz
• Qes: 0.57
• Mms: 69.7 g
• Bxl: 15.31 Tm
• Sd: 754.8 cm²
• X var: +/- 7.0 mm
• Le (1KHz): 1.07 mH

The 10" that thinks it's a 12". This speaker was developed to recapture the legendary sound of Celestion's 1970s 10s - a 10" speaker with a surprisingly meaty tone.Low in output but with the weighty low-end balance of a 12", the G10 Greenback features a complex, creamy mid-range and smooth, vintage top-end.In small combos this speaker adds real class, and when combined in a 4x10 gives rise to a raunchy, full-bodied tone, rich in low-end thump.

Tested by Tube-Town: The Celestion 10" Greenback may not have the sonic range of its big brother - which is of course physically impossible - but it still delivers a full sound that is a bit more restrained in the highs than the 12" Greenback, making it sound rounder and softer in the highs, even with more overdrive in the sound.
All in all, the Celestion 10" Greenback is a true rock and blues speaker that we would use in open cabinets or combos to get the most out of the speaker. Do not use closed cabinets that are too small, as the speaker needs to breathe, otherwise the "British touch" that the speaker has will be lost. The 30 watt power rating also gives the speaker a bit more headroom than the 12" Greenback, making it a bit more flexible to use than the original.

General Specifications

• Nominal diameter 10", 254mm
• Power rating: 30Wrms
• Nominal impedance: Available 8Ω or 16Ω
• Sensitivity: 95dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 14oz
• Frequency range: 95-5500Hz
• Resonance frequency, Fs: 98Hz
• DC resistance, Re: Available 6.4Ω or 12.05Ω

• Cut-out diameter 9.0", 229mm
• Diameter: 10.0", 254mm
• Magnet structure diameter: 4.9", 124mm
• Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 4
• Overall depth: 4.0", 102mm
• Unit weight: 3.5lb, 1.6kg

Finally, the wait is over. We have created a 10" speaker that captures all the tone and mojo of our extremely popular 12" Green Beret.   The Green Beret 10 boasts the same midrange push, articulate top end and warm, harmonically rich breakup of its larger namesake.  It also sports an impressive amount of low end for a 10" speaker.   With a 1.5" voice coil and a paper former, this speaker drips with vintage tone.    If you've been looking for classic British tone in a 10" speaker the Green Beret 10 delivers.

Tube-Town Review: Due to the smooth cone used in the 10" WGS Green Beret, its top end is much more subtle compared to the original 12" Celestion Greenback G12M, but also to the 10" Celestion Greenback. However, the midrange is not overemphasized and the whole speaker sounds full and balanced, with a distinct "American touch" to the overall sound.
We recommend the 10" Green Beret for everything from blues to rock to modern metal, but less so for blackface-typical clean sounds, for which there are better suited 10" speakers. In order for the speaker to develop its full sonic spectrum, it should be used either in an open cabinet or combo, or in a large-volume closed cabinet. A closed cabinet that is too small will dampen the speaker too much and cut the sound.
The WGS 10" Green Beret is also a real upgrade for many budget combos that are equipped with inexpensive 10" speakers and often sound a bit thin and sharp, especially when it comes to harder tones.

Thiele-Small Parameters (8 ohm version)

• Resonant Frequency (Fs): 117.31 Hz
• DC Resistance (Re): 6.8 Ohm
• Coil Inductance (Le): mH
• Mechanical Q (Qms): 9.429
• Electromagnetic Q (Qes): 1.884
• Total Q (Qts): 1.57
• Compliance Equiv. Vol. (Vas): 15.59 cu ft
• Mech. Compliance of Susp. (Cms): 0.082 mm/N
• BL Product (BL): 11.71 T-M
• Diaphragm Mass Inc. Airload (Mms): 22.4417 grams
• Surface Area of Cone (Sd): 336.0962 cm squared
• Sound Pressure Level (spl): 96.62 db

With a 90-watt power rating, the Celestion Cream is purpose-built for vintage tones, whatever kind of amp you use. By applying new technologies and manufacturing methods developed during the creation of our Creamback speakers, we’ve been able to deliver a higher power rating while preserving the very essence of an alnico guitar speaker.

Delivering a glorious, laid-back attack, the Cream exudes warm lows and a brilliant bell-like chime. It has smooth and organic mids, further characterised by a fine-grained detail that adds a high-definition quality to the vocal range.

The Cream has been specially created to bring alnico class to all kinds of amps from 1-watt to 90-watts. It conveys a satisfying warmth, detailed expressiveness and exceptional musicality, even at low power levels.

General Specifications

• Nominal diameter: 12", 305mm
• Power rating: 90W
• Nominal impedance: 8Ω
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Alnico
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.7Ω
• Made in UK

The F12M-150 is a full range, LIVE response speaker, purpose designed for use with amp modellers and IRs.
Its unique design features two additional tweeter cones integrated into the main woofer cone (making it “Triple Cone”).
This enables the speaker to deliver near full-range frequency performance: from 60Hz up to 12kHz, for a rich and detailed sound, whatever your set-up.

Designed with Celestion’s Pro Audio know-how, response is flat and neutral, ensuring no unwanted colourations that could overwhelm the input signal.
But with an optimised woofer cone and lighter moving mass the F12M-150 Triple Cone is designed to closely mimic the responsiveness of a traditional guitar speaker,
delivering all the tactile feel you would expect from playing through a conventional guitar rig. It’s not just FRFR, it’s Full Range LIVE Response.

Specifications

• Nominal diameter 305mm / 12in
• Power rating 150W
• Rated impedance 8Ω
• Sensitivity 97dB
• Chassis type Pressed steel
• Magnet type Ceramic
• Magnet weight 0.9kg / 35oz
• Voice coil diameter 2in / 51mm
• Voice coil material Round copper
• Frequency range 60-12,000Hz
• Resonance frequency, Fs 70Hz
• DC resistance, Re 6.07Ω

Parameters

• D 0.26m / 10.24in
• Fs 69.4Hz
• Mms 44.772g / 1.58oz
• Qms 10.446
• Qes 0.992
• Qts 0.906
• Re 6.07
• Vas 46.89l / 1.66ft3
• BI 10.923
• Cms 0.118
• Rms 1.868
• Le (at 1kHz) 0.12

Mounting Information

• Cut-out diameter 283mm / 11.1in
• Diameter 283mm / 11.1in
• Magnet structure diameter 145mm / 5.7in
• Mounting hole dimensions 7.9mm / 0.31in Ø
• Mounting hole PCD 297mm / 11.7in
• Number of mounting holes 8
• Chassis depth (inc gasket) 94mm / 3.7in
• Magnet depth 33mm / 1.3in
• Overall depth 127mm / 5in
• Unit weight 3.6kg / 7.9lb

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

Cabinet corner leather black, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.

Cabinet corner leather light brown, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.

Raised Head with cross recess
Material: Steel
Strength class: 4.8
Surface: Zinc-plated
DIN: 7985
ISO: 7045
Price: per pcs.
