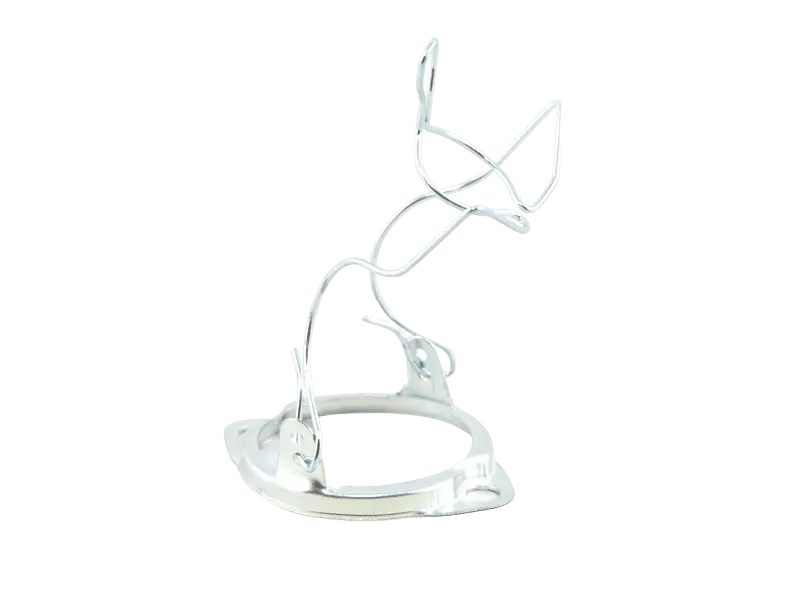

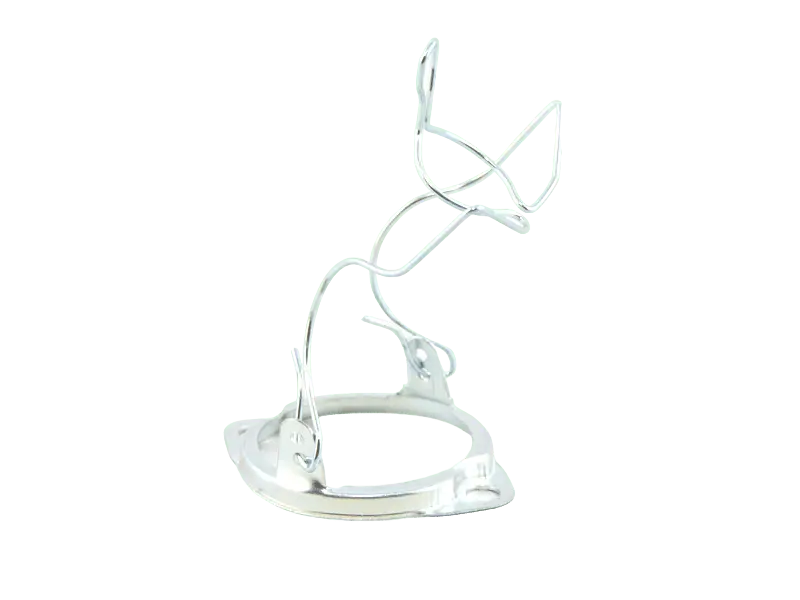

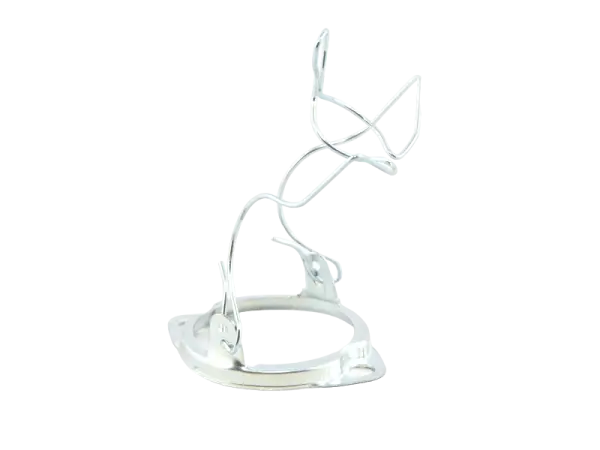

Retainer 12AX7

• Rubber grommets for reverb tanks, package of four.
• Mounting Hole Diameter = 3/8"
• Outer Diameter = 1/2"

Size for all EL84 tubes and all other tubes of the same size

Outside diameter: 39.8 mm
Inner diameter: 25.9 mm
Height: 53 mm

Retainer for EL34 / 6L6 Tubes

Wall thickness max: 2,5 mm
Cable diameter: 6,4 - 7,4 mm
Material: PA 6.6, UL 94 V-2
Color: black
Operating temperatures: –35 to +105 °C

Silicon Wire 0,5 mm²

• 1m black
• 1m red
• 1m yellow
• 1m green
• 1m blue
• Operation Voltage Uo/U: 300 / 300 V AC
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C

Silicon Wire 0,25 mm²

• 1m black
• 1m red
• 1m yellow
• Operation Voltage Uo/U: 300 / 300 V AC
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C



Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Type: LIH/125 Stranded wire - halogen free
• Conductor: stranded copper - tinned
• Conductor strands: 16 x 0.2 mm
• Insulation: TPE-S (12Y), flammable
• Cross sectional area: 0,5 mm²
• Outer Ø: 1.6 mm
• Temperature Range
• static / dynamic: -40 to +125°C / -25 to +125°C
• Operating voltage: 900V
• Insulation resistance: min. 200MΩ x km at +20°C

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.
