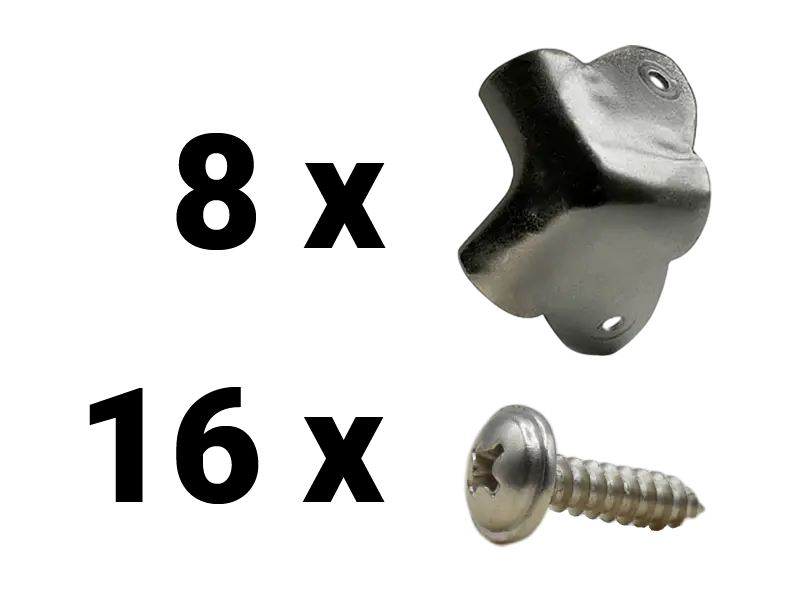

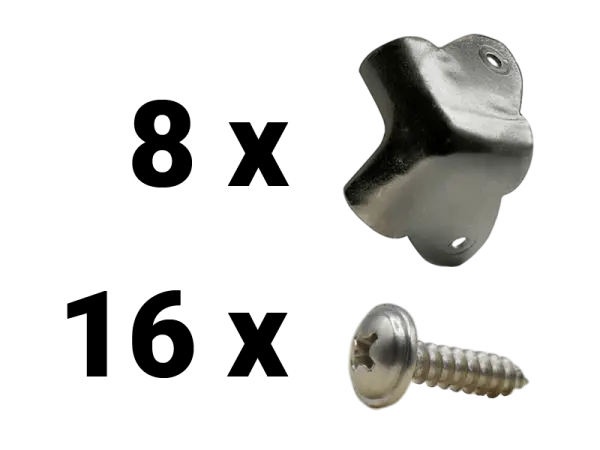

Set Corners w/ cutaway 2 leg, silver incl. Screws

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size based on the very popular 112AM Lemberg:

• Width: 500 mm
• Height: 410 mm
• Depth: 240 mm
• Speaker cutout: 12"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

High Quality Speaker Cabs for the DIY

Specifications

• Size: ca. 510 x 420 x 240 mm
• 1 x 12"
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.  7,5 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

Spezification

• Size:
  • Outside(B x H x T): 510 x 240 x 240 mm
  • Innside:(B x H x T): 474 x 204 x 240 mm
• fits Chassis: #052 (siehe list bellow)
• Hardware: none
• Weight: ca. 4 kg
• Wood:
  • Body: 18 mm Pine Plywood
  • Front/Backpanels: Body: 15 mm Pine Plywood
• Surface: untreated

Files:

• Drawing

[content:3210136]

Specifications

• Size: ca. 660 x 570 x 280 mm
• Speaker cutout: d=360 mm
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Net-Weight: ca.12 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

High Quality Speaker Cabs for the DIY

Specifications

• Size: ca. 590 x 400 x 300 mm
• 1 x 12"
• Material:
  • Body: 15 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca. 9,8 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

Empty Smallhead-style amplifier housing with open back for self covering, painting or staining.
The headshell is raw and comes without any other hardware. The dimensions are the same as the normal TTC SmallHead.
Made of 15 mm FinePly plywood, corner radius 12 mm.

Specifications

• Size: 660 x 230 x 210 mm (Outside)
• Chassis-Cutout: 410 x 55 mm
• Weight: ca. 6 kg
• Wood: 15 mm Birch Plywood

[content:3210136]

High Quality Speaker Cabs for the DIY

Specifications

• Size (WxHXD): 460 x 370 x 240 mm
• 1 x 10"
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.  6 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

Empty amplifier housing for TT-Chassis #030
The headshell is made of 18 mm Pine Plywood and can be painted or tolexed by the customers to their own ideas. The front and back panel and the holders are not assembled but included. They can get assembled if needed (woodglue is included).
Hardware, such as corners, handles or feet are NOT included.

Note: the side brackets inside are NOT needed when using chassis 036 - model 2020.

Specifications

• Size: 510 x 240 x 240 mm (Outside)
• Hardware: Screws are included.
• Weight: ca. 4 kg
• Wood: 18 mm Pine Plywood
• Dovetail joints
• Made in Germany

[content:3210136]

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size:

• Width: 350 mm
• Height: 335 mm
• Depth: 225 mm
• Speaker cutout: 8"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

Case Handle imitation leather,Dog-Bone Style

• Mounting fittings: Steel, nickel plated
• Color: Dark brown
• WITHOUT NUTS AND SCREWS

Cliff 1166 mono jack

• Mono jack, switched
• for PCB mounting
• for 6.3 mm jack plugs
• Used in various Marshall amplifiers or as a replacement jack in JCM 900 cabinets

Files

• Datasheet

1/4" mono jack, switched, with chrome ferrule and straight PCB pins
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: straight
• Connection type: solder connections
• Housing: metal
• Color: silver
• Special feature: contacts gold-plated
• Cable pickup: max 7 mm
• Manufacturer: HiCon

• Rubber foot with steel insert
• Size: d = 38 mm, h = 25 mm
• Pack of 4

• matches original Marshall "Salt & Pepper" Grillcloth (ME-FRETM0012), same manufacturer
• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

• Mini, Layout Type C
• Version 2020, U-Chassis
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany

Files:

• Datasheet V2020
• Datasheet

Set of metal corners for housing consisting of:

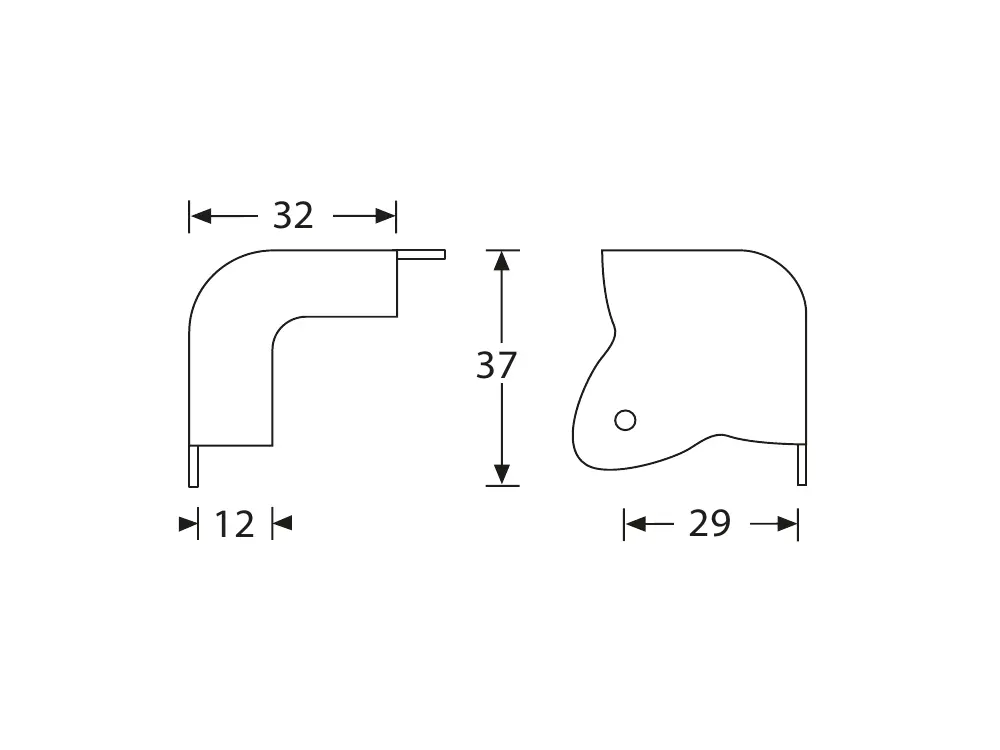

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

• Type: Toggle Switch
• Version: DPDT  ON-ON
• Assembly Ø: 12.2 mm
• Switching current: 1,5 A
• Rating: 1,5 A / 250VAC, 3 A / 125VAC
• Insulation resistance: Min. 500 V/DC/100 MΩ
• Contact Resistance: Max. 50MΩ
• Termination Style: solder-lugs

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for snap-on mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C
