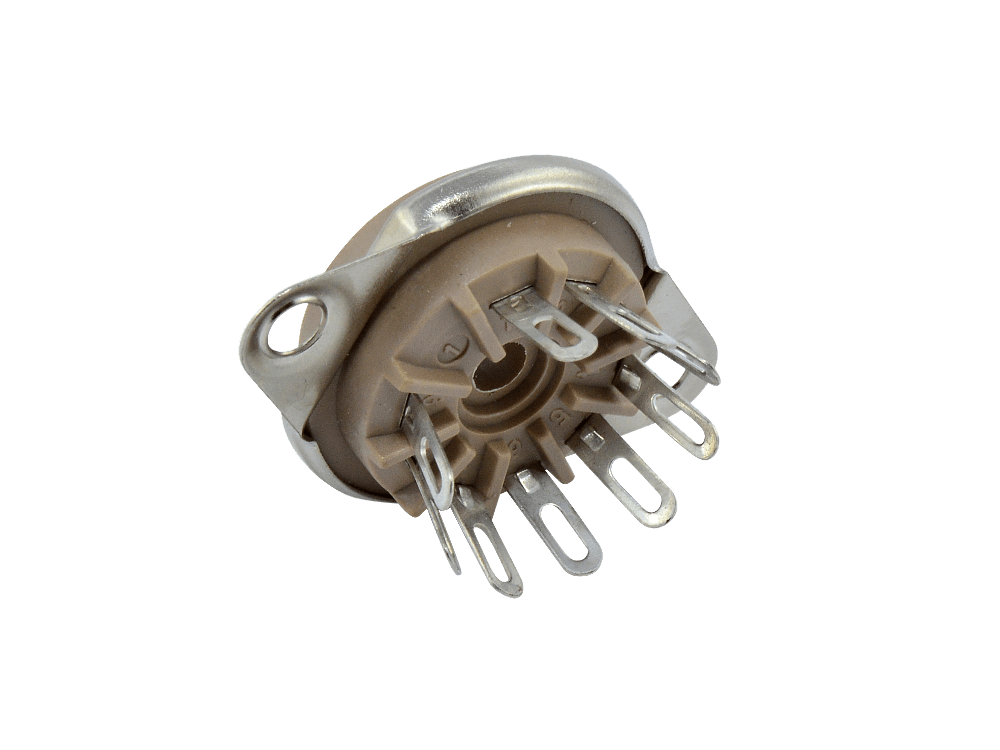

Socket Noval Belton, Chassis VT9-ST-2

Tube-Shield for Belton socket VT9-ST-C

• Color: silver
• Length: 40 mm
• Including Base and Shield

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, red solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

TT-Chassis Fender Style 5F1 Tweed Champ
Optimized version of the 5F1 chassis for use with a separate power switch, isolated input and output jacks to prevent ground loops, Belton socket, replaceable power cord. Furthermore, this chassis is slightly longer than the original, which makes the work "inside" the chassis easier. Made of aluminum.

• Dimensions: 260 x  65 x 105 mm (W x H x D)
• Material: 2 mm Aluminium

Files

• Datasheet(PDF)

• Extended JTM45 Chassis
• Size: (WxHxD) 432 x 65 x 170 mm
• PT cut-out: 70 x 69 mm
• Material: 2 mm Aluminium (AllMg3)
• Made in Germany

Files:

• Datasheet

• Version 2020
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

Files:

• Datasheet V2020
• Datasheet V2013

Bracket for mounting noval sockets horizontal e.g. in 19" Racks

• Material: 1,5 mm Aluminium
• Attention: designed for Belton sockets

TT-Chassis Fender 5F2 Style
Optimized version of the 5F2 chassis for use with a separate power switch, isolated input and output jacks to prevent ground loops, Belton socket, replaceable power cord. Furthermore, this chassis is slightly longer than the original, which makes the work "inside" the chassis easier. Made of aluminum.

• Dimensions: 260 x  65 x 105 mm (W x H x D)
• Material: 2 mm Aluminium

Files

• Datasheet

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

Files

• Faceplate Template

• Mini, Layout Type B, Version 2020
• Size: 285 x 165 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

Please note: The chassis may show traces and marks due to production.

Files:

• Datasheet V2020
• Datasheet V2013 (discontinued)

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

Files:

• Datasheet

• Extended JTM45 Chassis
• Size: (WxHxD) 432 x 63 x 170 mm
• PT cut-out: 70 x 69 mm
• Material: 1,5 mm Steel, galvanize
• Made in Germany

Files:

• Datasheet

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

Same as the Chassis 040 - PX18 but with with octal sockets for the powertubes, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 432 x 170 x 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)

Files:

• Datasheet

TT-Chassis Aluminium - Typ 042

Chassis for the JC18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos and of course the JC18 headshell

• Size : 432 x 170 x 65 mm
• Material: 2 mm Aluminium

Files:

• Datasheet

• Mini, Layout Type C
• Version 2020, U-Chassis
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany

Files:

• Datasheet V2020
• Datasheet

• Marshall 18 Watt Style Chassis - 1974
• for use in a combo
• Size: (WxHxD) 530 x 65 x 152 mm
• Material: 2 mm Aluminium (AllMg3)
• Mounting: with cage nuts (not included)

Files:

• Datasheet (PDF)
• Template Faceplate

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

Files

• Faceplate Template

• Type: Toggle Switch
• Version: SPDT, ON-OFF-ON
• Rating: 3 A / 250VAC, 6 A / 125VAC
• Drill Ø: 6 mm
• Termination Style: solder-lugs

2 tubes, matched as pair

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

• 6,3 mm jack
• Same as Switchcraft 12A but with longer thread
• mono, switched
• Installation diameter: 10 mm

Files:

• Datasheet

• Size:
  • Width: 90 cm
  • Length: 60 cm
• Material: 94 % Polypropylen, 6 % Acrylic
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Fender Strap Handle

• Fender #0990947000
• Plastic covered with steel inner core
• End plates: Steel, nickel plated
• Color: Black
• Mounting hardware: Screws and t-nuts included

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

• Rubber foot with steel insert
• Size: d = 25 mm, h = 11 mm
• Pack of 4
• Screws included

Panel Mount Potentiometer - 3/8"

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Fender Blackface Style Knob
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 30 x 16,1 mm
• Mounting: Set-Screw

The ET10 is the 10” version of one of our most popular speakers: the ET65. The ET10 boasts a tone reminiscent of its 12” counterpart, but with a bit more of a pronounced midrange. The low end from this 10 is surprisingly heady, but remains tight in all situations. Top it off with a smooth but articulate top end, and you have one of the most highly anticipated ten inch speakers to date.

Unit Weight: 6 lbs

Thiele-Small Parameters

• Resonant Frequency (Fs): 113.32 Hz
• DC Resistance (Re): 6.626 Ohm
• Coil Inductance (Le): 0.16 mH
• Mechanical Q (Qms): 6.72
• Electromagnetic Q (Qes): 0.72
• Total Q (Qts): 0.65
• Compliance Equiv. Vol. (Vas): 17.06 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 10.63 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.25 grams
• Surface Area of Cone (Sd): 324.29 cm squared
• Sound Pressure Level (spl): 100.17 db
