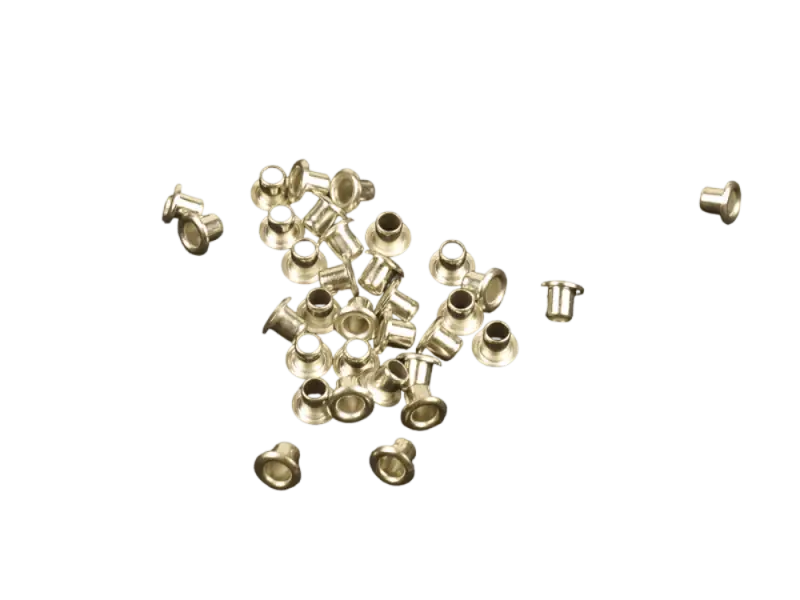

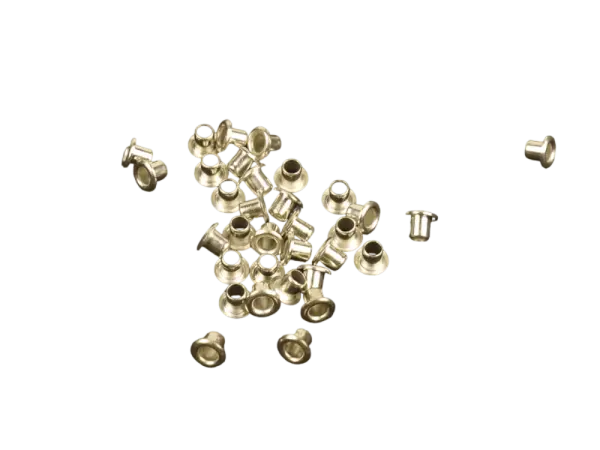

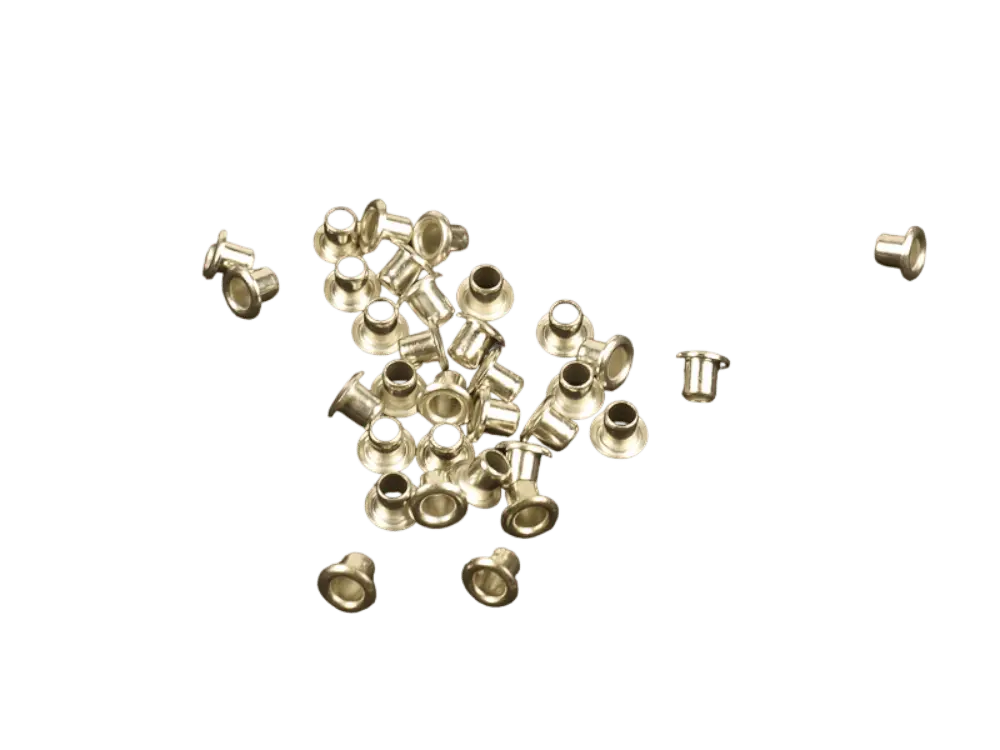

Eyelet 1/8 x 0.125 - 50 pcs

Fender Style Fiberboard black, set of 2

This set contains two pieces of black fiberboard material that can be used to create your own fiberboards or flatwork. Simply drill the necessary holes for eyelets, cut them to the desired lengths, and assemble your custom components.

Specifications:

• 1 x 0.093" thick vulcanized black fiberboard. Size: 16" x 3"
• 1 x 0.06" thick vulcanized black fiberboard (isolation board). Size: 16" x 3"

In summary, the Fender Style Fiberboard set includes two pieces of black fiberboard material, perfect for DIY projects requiring custom flatwork or fiberboards. The set features both a standard thickness fiberboard and an isolation board, providing versatility for various applications.

The signal lamps for front panel installation are designed for screw mounting with a recommended installation hole of Ø8mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

The signal lamps for front panel installation are designed for screw mounting with a recommended installation hole of Ø6mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

• for 4.0 mm laboratory plugs
• Connection Type: solder connection
• Mounting hole diameter: 8.3 mm
• Contact material: nickel-plated brass
• Rated voltage: 30 VAC / 60 VDC
• Rated current: max. 25 A



1/4" stereo jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

High Power Rotary Switch

• Can be used as Voltage or Impedance selector
• 1 pole / 3 position
• 3 A @ 250 VAC
• 6 A @ 125 VAC
• Solder lugs
• Size: 28 mm x 39,5 mm
• Frontpanel drill: 10,5 mm
• Shaft Diameter 6 mm, D-Shaft

• Type: Toggle Switch
• Version: 3PDT, ON-ON
• Assembly Ø: 6.2 mm
• Rating: 3 A / 250VAC, 6 A / 125VAC
• Termination Style: solder-lugs
• Size: 18 x 136 x 12,3 mm

Panel Mount Potentiometer

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

TT-Chassis Dumble ODS 50 Watt Style, Rev A

• Size: 490 x 204 x 65 mm
• Material: 1,5 mm Steel
• Mounting: with cage nuts (not included)
• Made in Germany

Technical Data:

• Core M6
• Primary: 120V-230V-240V @ 50Hz
• Secondary HT: 345V-0-345V @ 300mA
• Secondary Heater: 3.15V-0-3.15V @ 6A
• Secondary Bias: 50V @ 150mA
• Secondary: Auxiliary 0V-6V-12V @ 1,5A

Files:

• Datasheet
