Tube-Town Turret-Sockel PCB

Mobile Preview: Tube-Town Turret-Sockel PCB

Description

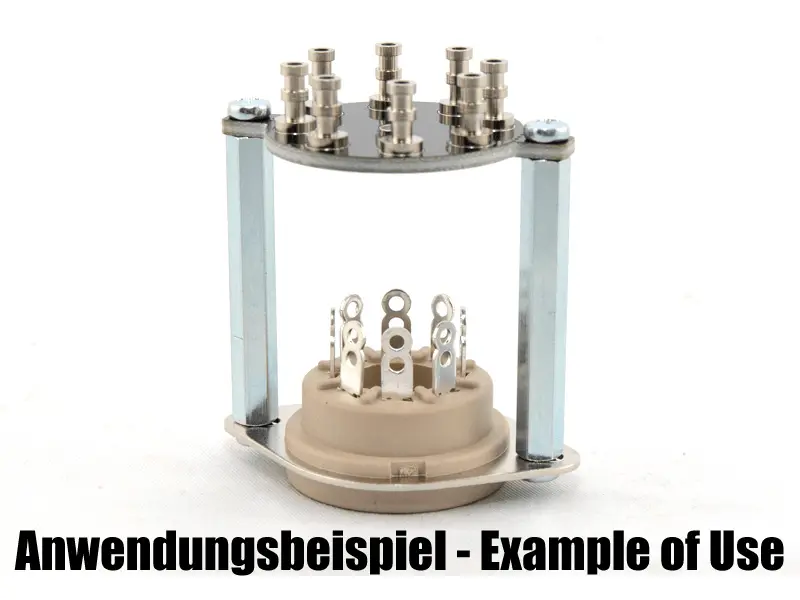

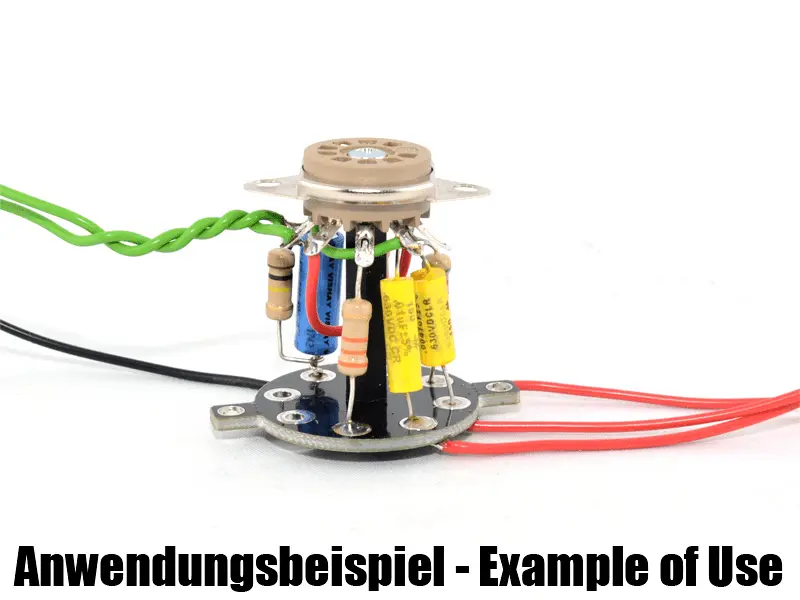

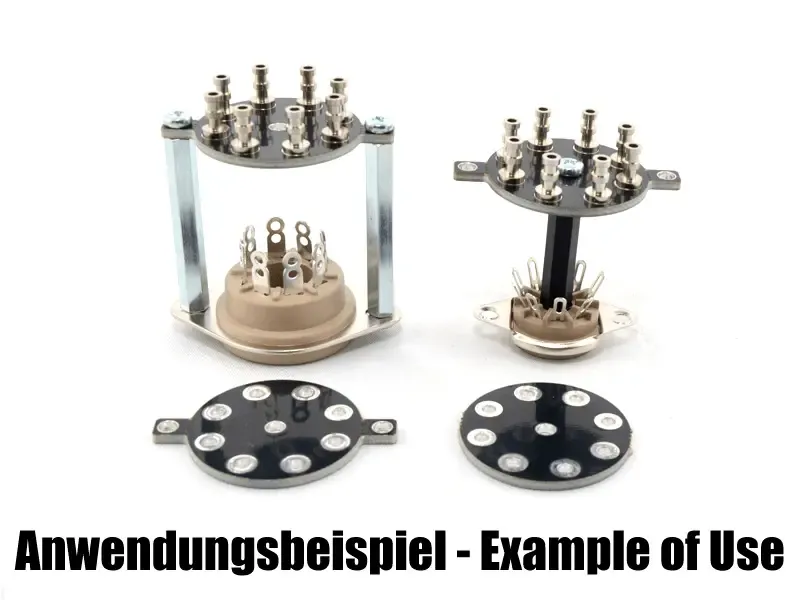

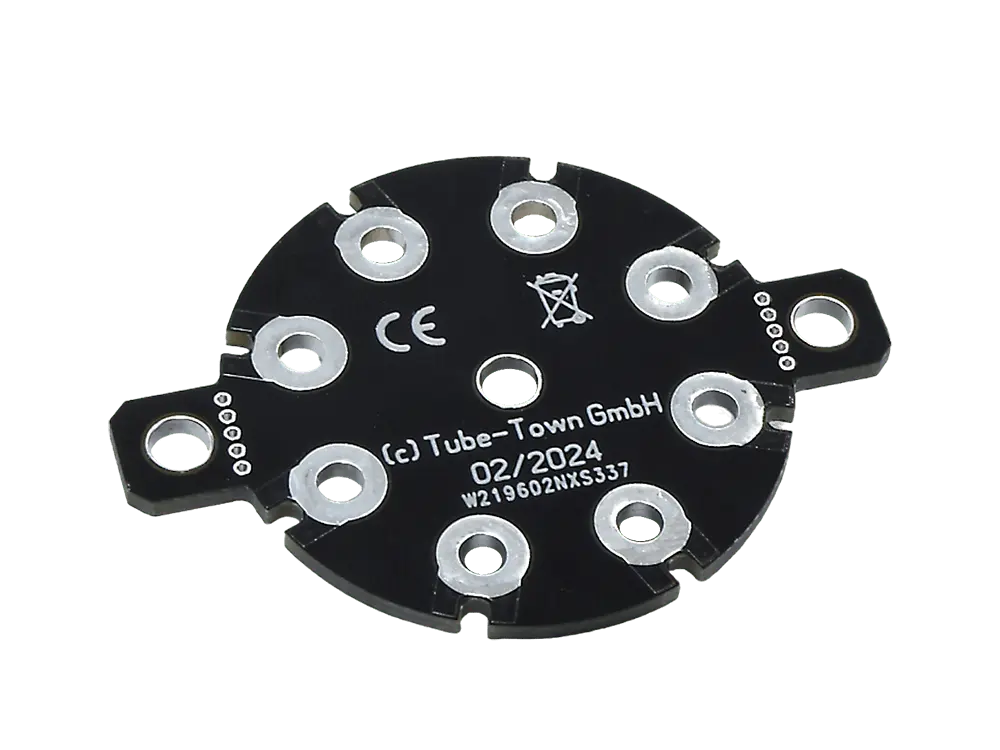

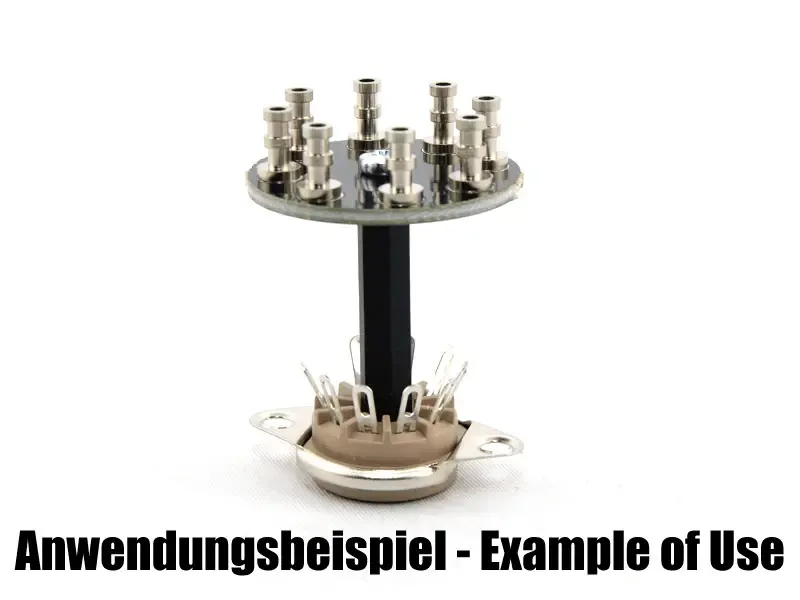

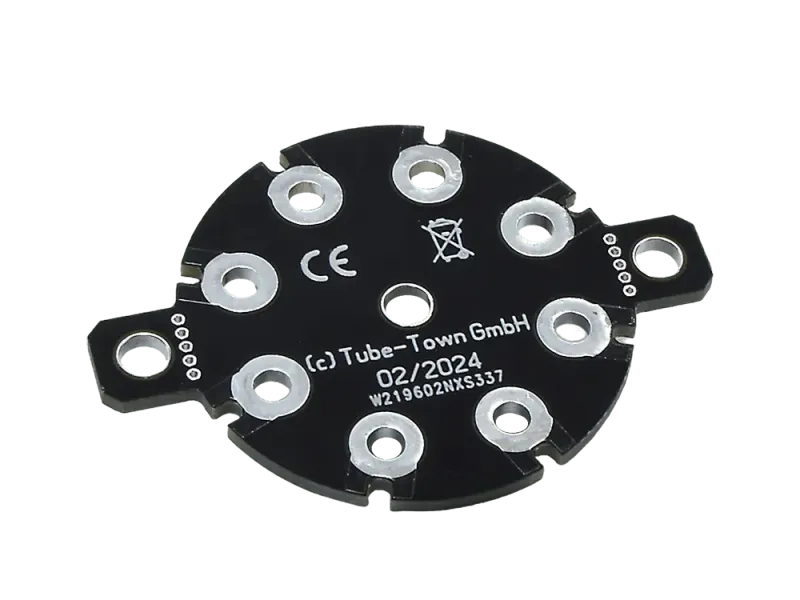

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

Version 2024
1,6 mm, black solder mask
can be used directly as "eylet board"
turrets for 2mm boards can also be used
the pin distance is more than 2,5 mm
conform with actual VDE regulations
operating voltage 500 V DC
designed for Belton noval and octal sockets
with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
recommended spacer bolts: 30 - 40 mm, M3
check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.
