TT-Chassis Fender Style 5F1 Champ - Improved Version

Product No.:
tt-ch039
Temporarily out of stock. Please see hint for delivery time notice Temporarily out of stock. Please see hint for delivery time notice
RoHs:
conform
Hint:
Available again ca. 01.09.2026
Weight:
0.9 kg per piece
29,80 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

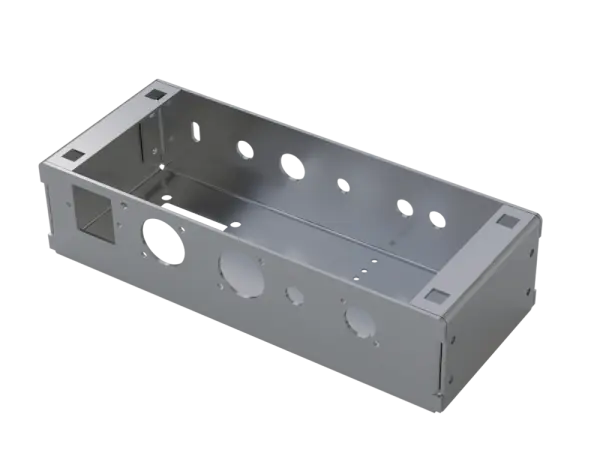

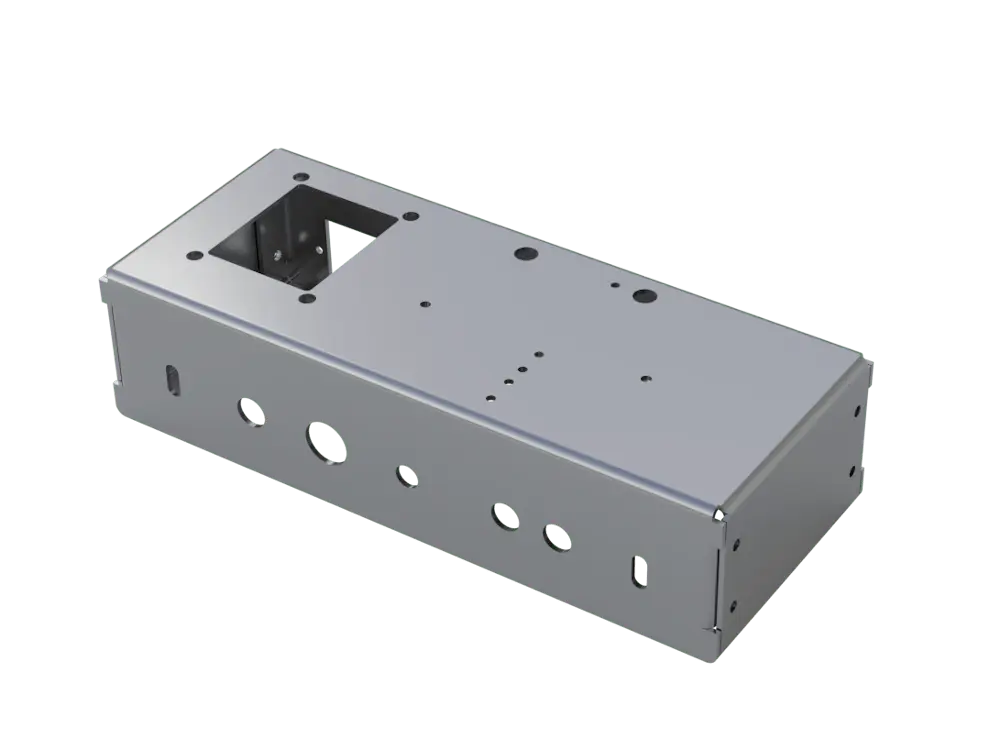

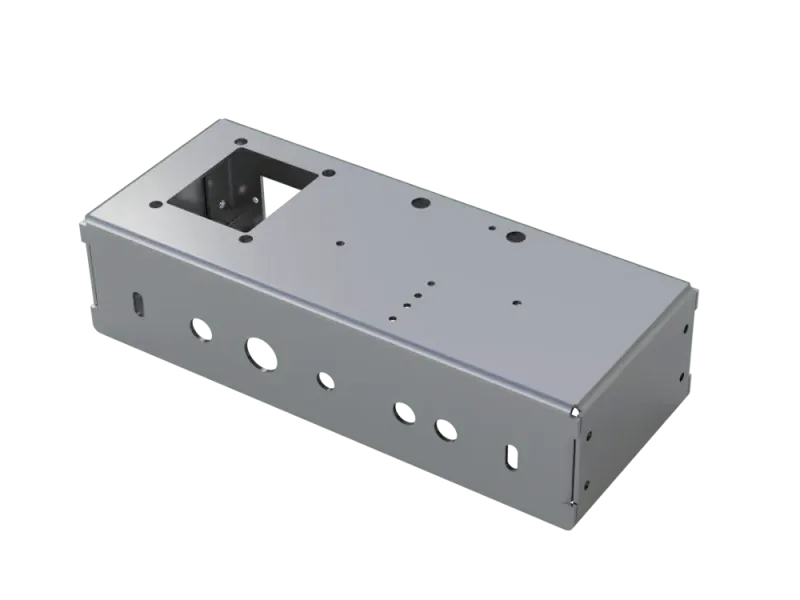

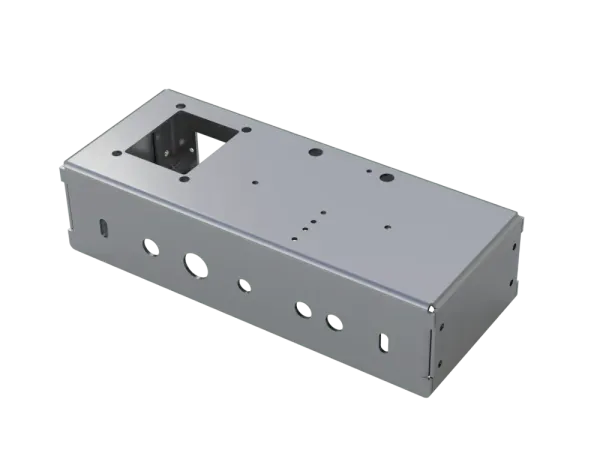

TT-Chassis Fender Style 5F1 Tweed Champ
Optimized version of the 5F1 chassis for use with a separate power switch, isolated input and output jacks to prevent ground loops, Belton socket, replaceable power cord. Furthermore, this chassis is slightly longer than the original, which makes the work "inside" the chassis easier. Made of aluminum.

  • Dimensions: 260 x  65 x 105 mm (W x H x D)
  • Material: 2 mm Aluminium
