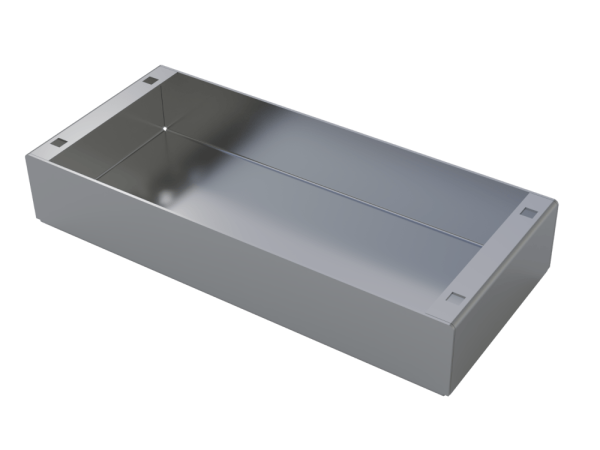

TT-Chassis 062 - 365 x 160 x 65

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

Clamp for capacitors

• Material: Steel, galvanized
• Diameter: 35 mm

• Type: Cancap
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 35,5 mm x 51,4 mm
• Termination Style: radial, solder-lugs

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

With a soft and detailed sound, as well as sufficient headroom, the TT 12AU7/ECC82 enhances the sound characteristics of any amplifier, whether it's for guitar, bass, or high-end. These tubes deliver a dynamic range, captivating listeners and musician with uncompromising clean sounds and rich overdrive.

Features:

• Detailed sound
• Ideal for both low and high gain amplifiers

Tip:
Often, 12AU7 and 12AT7 types are used instead of 12AX7 tubes to either reduce the overall power of the amplifier or to just reduce the overloading of the preamp. In comparison to a 12AX7, the 12AU7 brings about a very large sonic difference, typically much greater than switching from 12AX7 to 5751 or 12AT7.

When using a 12AU7 in a driver stage normally designed for 12AX7, the overall power of the power stage is usually reduced. The extent of this difference depends on the amplifier or circuit. For example, a Marshall amplifier with a 12AX7 in the PI stage set at volume 5 will then reach the same volume level with a 12AU7 at volume 6 (perceived volume, not measured).

Electrical Properties

• Heater Voltage (Uf): 6.3V or 12.6V
• Heater Current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode Voltage (Ua): Maximum 300V
• Grid Voltage (Ug1): -8.5V (typical)
• Anode Current (Ia): 10.5mA (typical)
• Anode Dissipation: Maximum 2.75W per triode
• Anode Resistance (ra): 7.7kΩ
• Amplification Factor (μ): 17
• Transconductance (S): 2.2mA/V
• Input Capacitance (Cin): 1.6pF
• Output Capacitance (Cout): 1.6pF

Mechanical Properties

• Socket: B9A (Noval)
• Number of Pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater Operation: The tube can be operated at 6.3V or 12.6V, depending on the circuit design.
• Grid Resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable operation.
• Coupling Capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

• Pri: 0-115-220-230-240 V (schwarz-grün-gelb-lila-rot / black-green-yellow-purple-red)
• Sec1: 300 V @ 0,1 A (rot / red)
• Sec2: 6,3 V @ 2 A (grün / green)
• Sec3: 12,6 V @ 1 A (blau / blue)
• long leads ca 200 mm
• Size ca. h=38mm d=90mm
• 50/60 Hz EN 61558

Screw set for Torodial-Transformers

1 x Screw M5*30 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t27

Screw set for Torodial-Transformers

1 x Screw M5*40 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t30
tt-t50

Screw set for Torodial-Transformers

1 x Screw M5*50 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t135
tt-t139

Screw set for Torodial-Transformers

1 x Screw M5*60 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t106
tt-t107
tt-t185
tt-t244

Screw set for Torodial-Transformers

1 x Screw M6*70 mm
1 x Screw Lock Nut M6
2 x Washer M6

suitable for this TT Transformers:

tt-t340
tt-t260

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial
