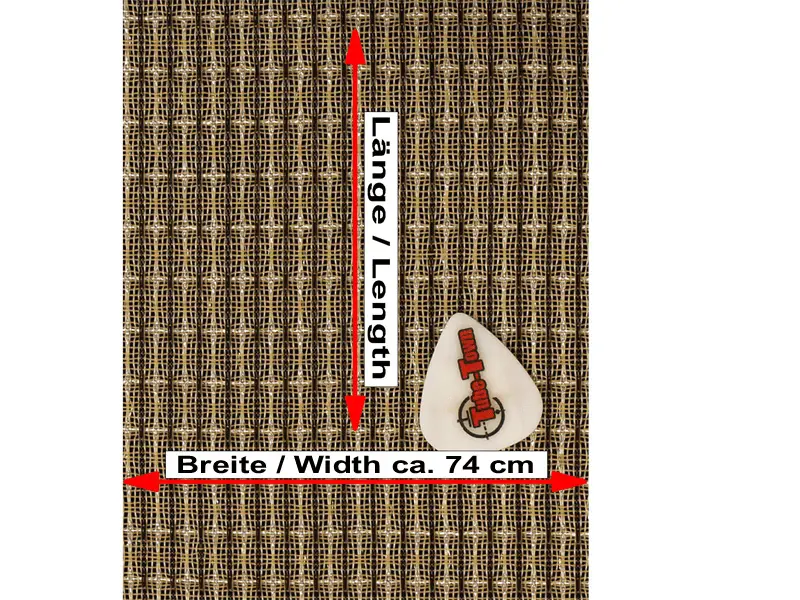

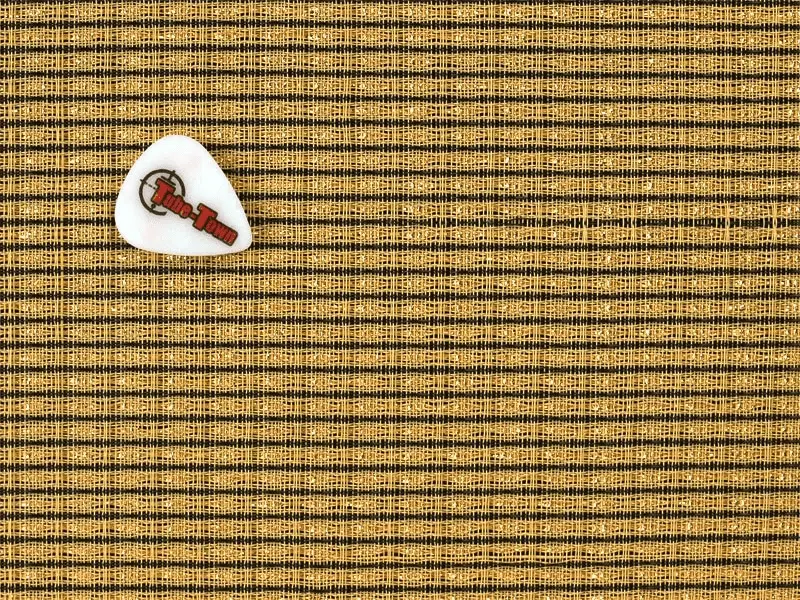

Grillcloth Tube-Town Vintage Gold - 74 x 100 cm

Screw set for loudspeaker mounting

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Rubber foot with steel insert
• Size: d = 38 mm, h = 15 mm
• Pack of 4
• Screws included

NP2X-BAG

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

Large 19" Tilt Back Legs with mounting hardware.
For Vibro-King®, Super 4-10.

Set of componentes for building the TT 5F1 - V2020 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Chassis
• Transformers (Hammond 1760C, TT-5E3-VPO)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Headshell or Combo

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• RCA Phono socket gold plated with Teflon insulation
• 1 x black
• 1 x red
• 1 x white
• 1 x yellow
• Installation diameter: 6 mm

Carbon Composition Resistors

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm

Carbon Composition Resistors

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm

Carbon Composition Resistors

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm

Carbon Composition Resistors

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm
