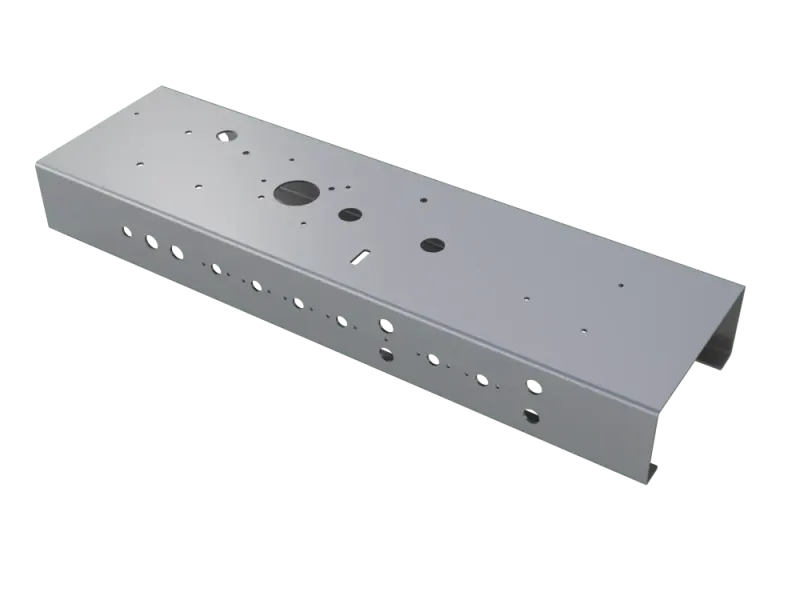

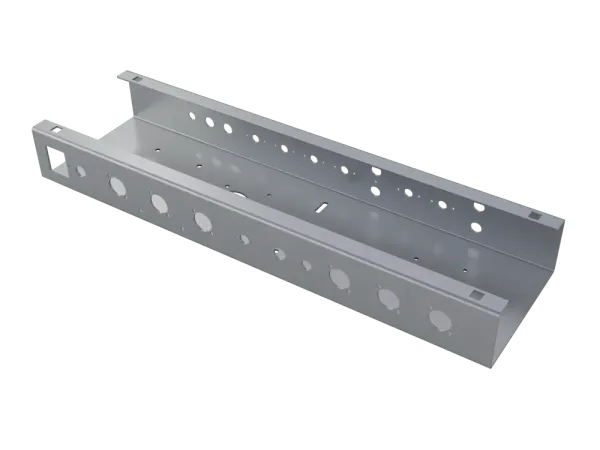

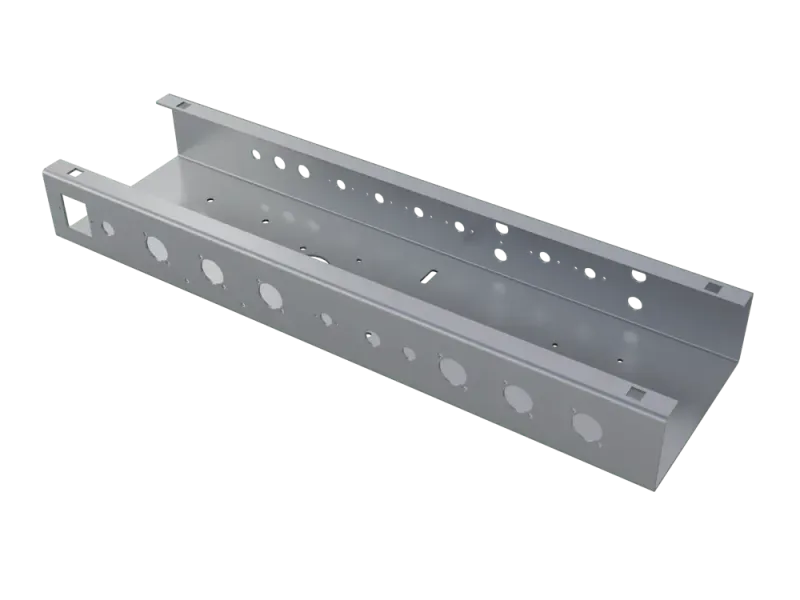

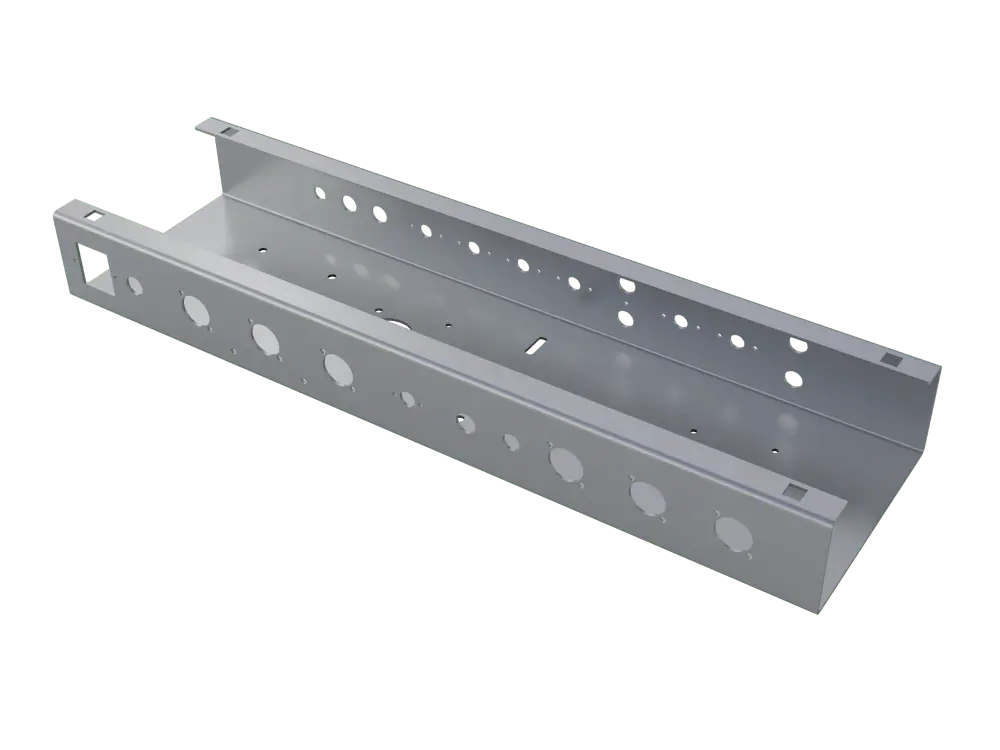

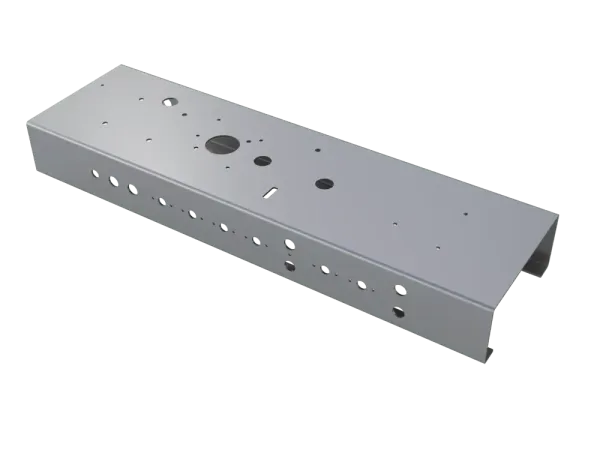

TT-Chassis 026 - Marshall 18Watt / 1974 Style

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Specifications

• Marshall 18 Watt Style Combo
• Size: 610 x 508 x 226 mm
• Chassis Cut-Out: 420 x 60 mm
• Tolex: Marshall Style Black
• Grillcloth: Marshall Style 1974X
• Hardware: Gold Handle
• Piping: Gold
• Back: Open-Back
• Weight: ca. 12 kg
• Speaker: None
• Wood: 12 mm Birch
• Backpanel Hight: 190 mm

Screws for mounting the speakers are included.
If you order loudspeakers together with the cab we mount them free of charge and if you order the speaker-cab together with a wire-set we will make the wiring for you too and you get a ready-to-play speaker cab.
The shipping weight may differ from the actual weight of the product.

DISCLAIMER: Due to continuous improvement, all specifications are subject to change without notice. [content:3210136]

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

Files:

• Datasheet

Octal Socket Belton VT8

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Marshall® Style 18W Amp Kit, Point-to-Point

Set of componentes for building the TT 18W Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout and if you want to build a 18 Watt combo than check the >>Project page of the Combo too

INCLUDED:

• Transformers (Power and Output, tt-ma18pw-INT and Hammond 1750PA)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis - please order the chassis which you want. The chassis tt-ch024 should be used for a head version of the amp and the chassis tt-ch026 for a combo build.
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Specifications

• Marshall 18 Watt Style Combo
• Size: 610 x 508 x 226 mm
• Chassis Cut-Out: 420 x 60 mm
• Tolex: Marshall Style Black
• Grillcloth: Marshall Style 1974X
• Hardware: Gold Handle
• Piping: Gold
• Back: Open-Back
• Weight: ca. 12 kg
• Speaker: None
• Wood: 12 mm Birch
• Backpanel Hight: 190 mm

Screws for mounting the speakers are included.
If you order loudspeakers together with the cab we mount them free of charge and if you order the speaker-cab together with a wire-set we will make the wiring for you too and you get a ready-to-play speaker cab.
The shipping weight may differ from the actual weight of the product.

DISCLAIMER: Due to continuous improvement, all specifications are subject to change without notice. [content:3210136]

PVC piping for baffles and cabinet front panels

• Size 5 x 14 mm
• 4 m piece

Strap Handle Heavy Duty

• Plastic covered with steel inner core
• End plates: Steel, nickel plated
• Color: Black
• WITHOUT MOUNTING HARDWARE

• Texture and color like the original Marshall Bluesbreaker 1974x Weaves, same manufacturer
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

PVC piping thin, without lip

• Ø 2.5 mm
• 2 m piece

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

• Size: 63,5 x 124 x 45,1 mm
• Material: 1,5 mm Steel (DC01 / Sendzimer) - Extra heavy !
• Made in Germany

Files:

• Datasheet

• Size: ca. 60 x 90 cm (only available in this size)
• ORIGINAL FENDER
• Material: 100% Polypropylen
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

• Type: Panel Mount Potentiometer
•   Push-Pull
• Power Rating: 0,5 W
• Voltage Rating: 750 V DC
• Shaft: 6.35 mm, solid shaft
• Shaft length: 15 mm
• Drill Ø: 9,4 mm
• Termination: Solder lugs
• Dimension: 24 mm

Soldering Lug, 3 legs, Size M4

• Made of brass, silver-plated
• Pack of 5

Signal lamp square red

• Operating voltage: 230 V~
• Power: 0,05 W
• Light/housing color: red
• Connection: soldering lugs
• Installation Ø: 10 mm
• Installation depth: 35 mm
• Overall dimensions (ØxL): 12x42 mm

• Outside Diameter: 13,50 mm
• Inside Diameter: 5,30 mm
• Pack with 12 pcs.
