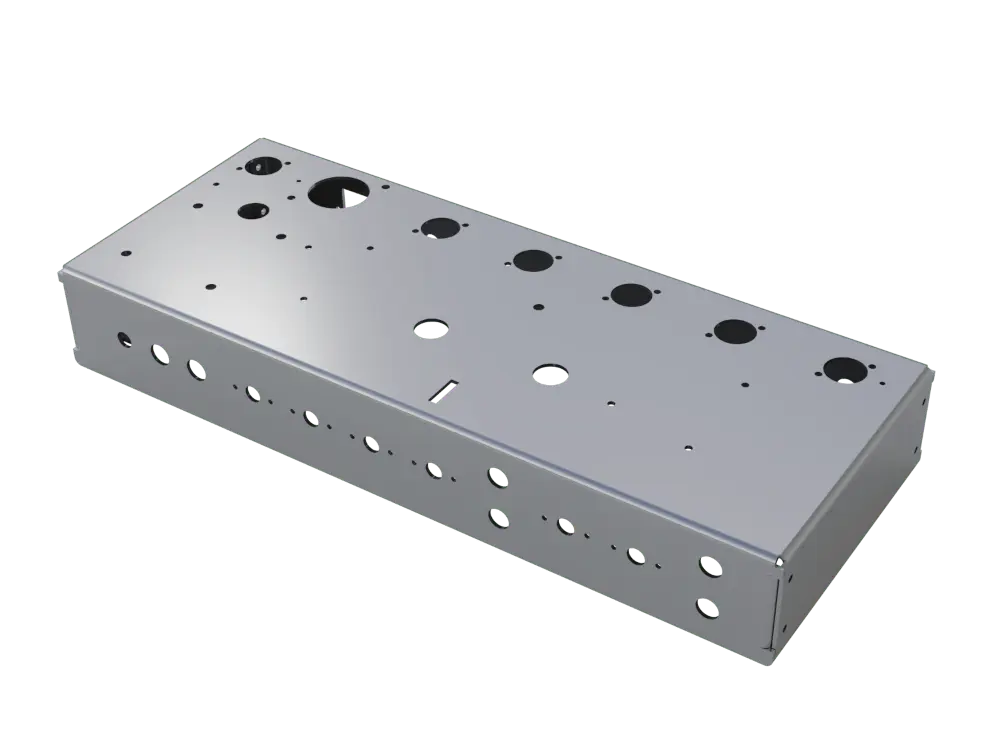

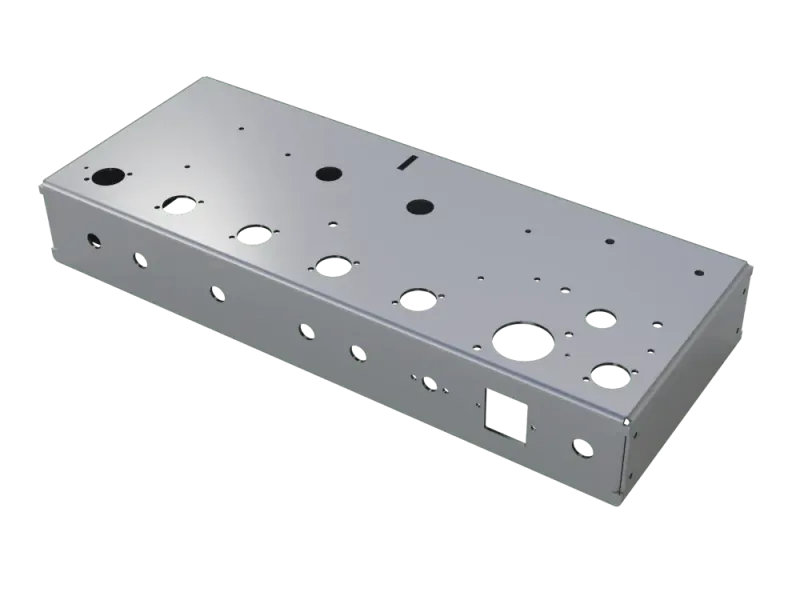

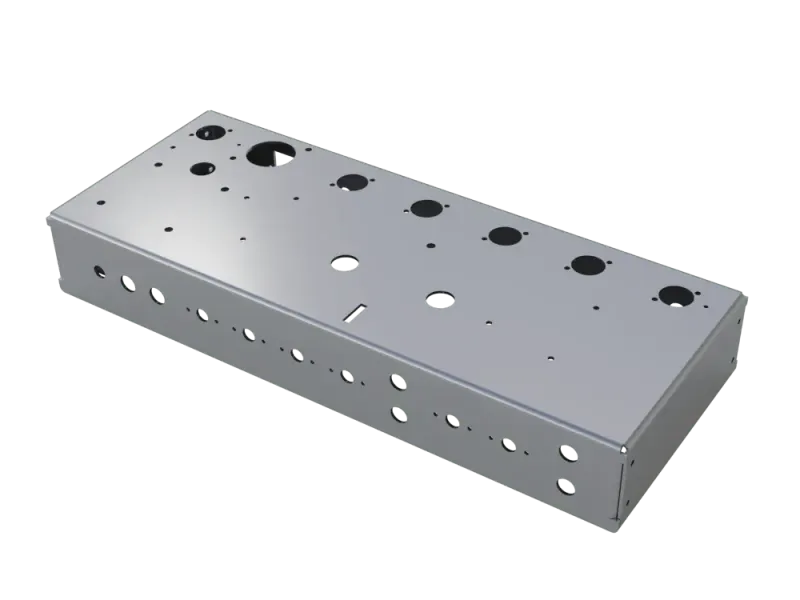

TT-Chassis 024 - British 18Watt

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Empty Smallhead-style amplifier housing with open back for self covering, painting or staining.
The headshell is raw and comes without any other hardware. The dimensions are the same as the normal TTC SmallHead.
Made of 15 mm FinePly plywood, corner radius 12 mm.

Specifications

• Size: 660 x 230 x 210 mm (Outside)
• Chassis-Cutout: 410 x 55 mm
• Weight: ca. 6 kg
• Wood: 15 mm Birch Plywood

[content:3210136]

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

TT-Cabs amplifier housing based on the Marshall Small-Head size.
Custom shop version with fixed size but freely selectable tolex and piping.

Specifications

• Size: ca. 660 x 230 x 210 mm
• Chassis Cut Out: ca. 420 x 58 mm
• Tolex: customer preference
• Hardware: Marshall Gold
• Piping: Gold
• Weight: ca. 6 kg
• Wood: 12 mm Birch

[content:3210136]

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

Files:

• Datasheet

Octal Socket Belton VT8

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Specifications

• Size: 465 x 230 x 215 mm (Outside), 435 x 200 x 215 mm (Inside)
• TT Chassis: TT Chassis 001 ( not included)
• Hardware: No Hardware included
• Weight: ca. 4 kg
• Wood: 15 mm Pine Plywood

Matchless Style Combo, 1X12, fits our 18W Chassis

• Size:
  • A (width): 610 mm
  • B (height): 508 mm
  • C (depth): 226 mm
• Chassis Cutout: ca 420 x 55 mm
• Tolex: customer preference
• Grillcloth: customer preference
• Hardware: customer preference
• Back: Open-Back
• Weight: ca. 15 kg
• Speaker: None
• Wood: 12 mm birch plywood

[content:3210136]

A 100% Matchless® Spitfire Clone, Point-to-Point

Set of componentes for building the TT Spit F. Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Transformers (Power and Output, tt-ma18pw-INT and Hammond 1750PA or TT-MA18-OT)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Marshall® Style 18W Amp Kit, Point-to-Point

Set of componentes for building the TT 18W Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout and if you want to build a 18 Watt combo than check the >>Project page of the Combo too

INCLUDED:

• Transformers (Power and Output, tt-ma18pw-INT and Hammond 1750PA)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis - please order the chassis which you want. The chassis tt-ch024 should be used for a head version of the amp and the chassis tt-ch026 for a combo build.
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Soldering Lug, Size M3

• Made of brass, silver-plated
• Angled
• Pack of 5

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

Noval Socket Ceramic Chassis mount

• w/mounting bracket
• solder lugs
• for 12AX7, EL84 and similar

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

• This brass adapter sleeve converts a 6mm shaft potentiometer or 18T knurled shaft potentiometer to ¼" shaft (6.35mm), allowing for ¼" knobs to be used on a wider range of potentiometers. ¼" tall.
