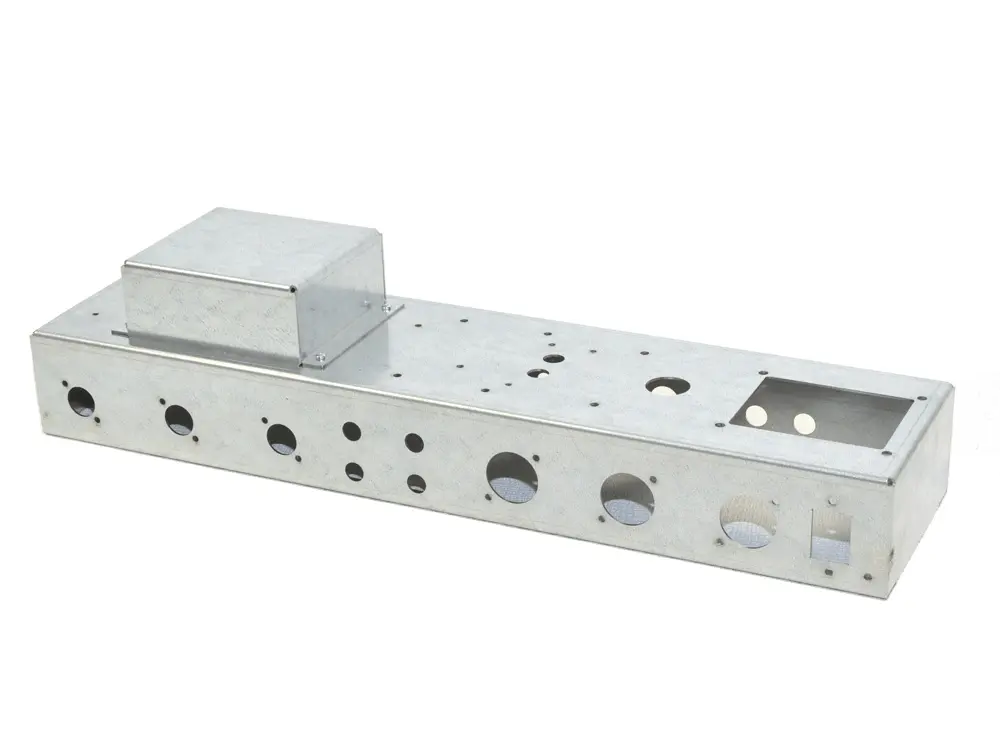

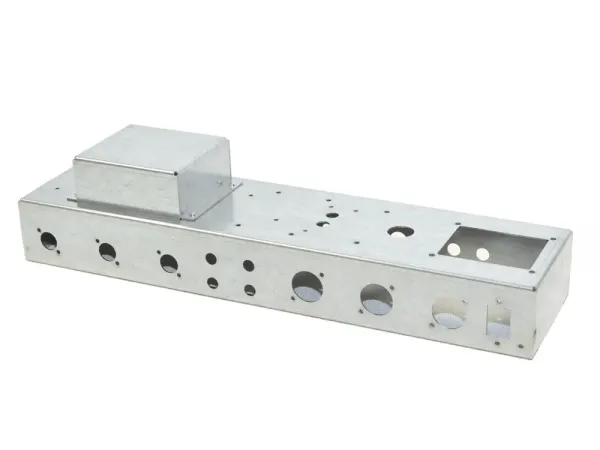

TT-Chassis Fender Style 5F6A Extended

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

Output transformer for 5F6

• Pri.: 4200 Ohm C.T.
• Sec.: 0-4-8-16 Ohm
• Power: 50 Watt (28 Hz -3dB)
• Made in Europe

Files:

• Datasheet

• Powertransformer for (Bandmaster Tweed, Bandmaster Reverb AA1069, AA270, AA763, Silverface, Blackface, Tweed) (Baseman Combos, Baseman Tweed, Baseman 5F6, 5F6A, Baseman 59) (Pro Tweed, Pro, Pro Blackface, AB763, Pro Reverb AA1069, AA270, AB668, Silverface) (Super Tweed, Super Brownface, 5F4, 6G4, 6G4A, Super Reverb AA270, AA763, AB568, AB763, Blackface, Silverface) (Vibroverb 6G16, AA763, Blackface)
• Fender Part Number 125P5D and 022798

Files:

• Datasheet

• Choke for Fender 125C1A & 022699
• Bandmaster, Dual Showman, Pro Reverb, Twin Super
• 4 H

Files:

• Datasheet

• Faceplate for TT Kit 5F6
• Color #C14 silver brusched, black
• Material: 1,5 mm Transply
• Front and rear pane

Files:

• Template

Faceplate for TT Kit YAH100

• Color #C01 black/white
• Material: 1,5 mm Transply
• Front and Rear panel

Files:

• Template

TT 5F6 V2 Classic Amp Kit

Set of componentes for building the TT 5F6 V2 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Transformers (Power, Choke and Output)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

• Faceplate for TT Kit 5F6
• Color #C14 silver brusched, black
• Material: 1,5 mm Transply
• Front and rear pane

Files:

• Template

Very linear working 12AX7 / ECC83 with long anode plates and spiral heating, which makes the tube less sensitive to interference from AC heating.
We recommend this tube for audio and high-end amps as well as for "modern" Fender amps with more overdrive, but also as an input tube in old Marshall JCM800s.

Note: Tubes equipped with long plates are commonly associated with a "warmer" or "richer" sound, whereas those with shorter plates tend to deliver a "tighter sound". However, tubes featuring long plates exhibit increased sensitivity to vibrations and mechanical disturbances, rendering them less ideal for critical applications.

Files

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

COMBINATED DOUBLE TRIODE
ECC832 is 12DW7 pre-amplifying double triode. It combines 12AX7 and 12AU7, where the 12AX7 is used as 1st stage and the 12AU7 as 2nd stage.

Files:

• Datasheet

4 tubes, matched as quad

Totally Tweed! The preferred OEM tube of ’50s-era Fender Tweed Champ and Deluxe amplifiers The Tungsol 6V6 has a geometry designed to safely handle the higher voltages used in guitar amps – plus heavier plate and grid materials. The result.. better mids and bottom while keeping the smooth top of the classic 6V6’s. The Tungsol 6V6 breaks up evenly from low E to high up the neck. Blues players will LOVE these tubes for the way they sing!

Files:

• Datasheet

Rectifier

• Resistance: 10k Ohm
• Power: 0,25 W
• Max Voltage: 250 V
• Grid 12,5/10 mm
• Ø: 15,0 mm
• h: 7,0 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 4700 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 49 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 6 mm x 10 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials
