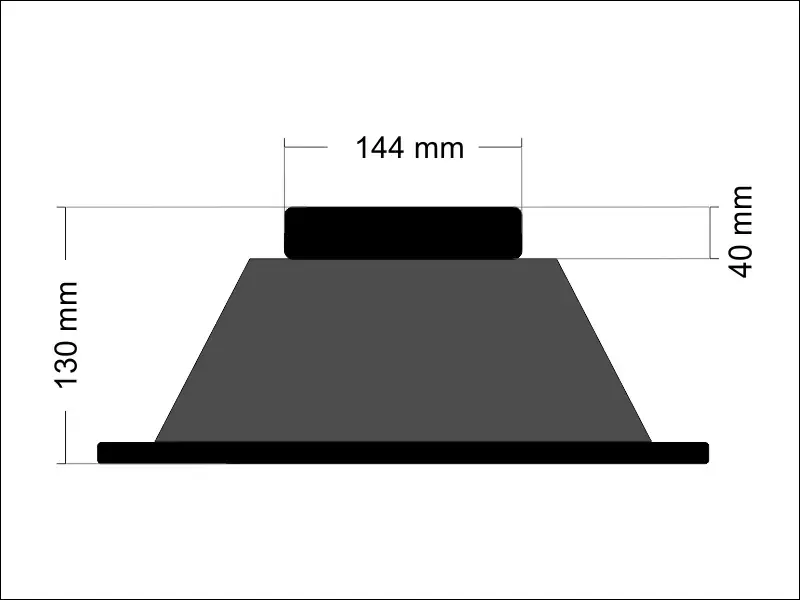

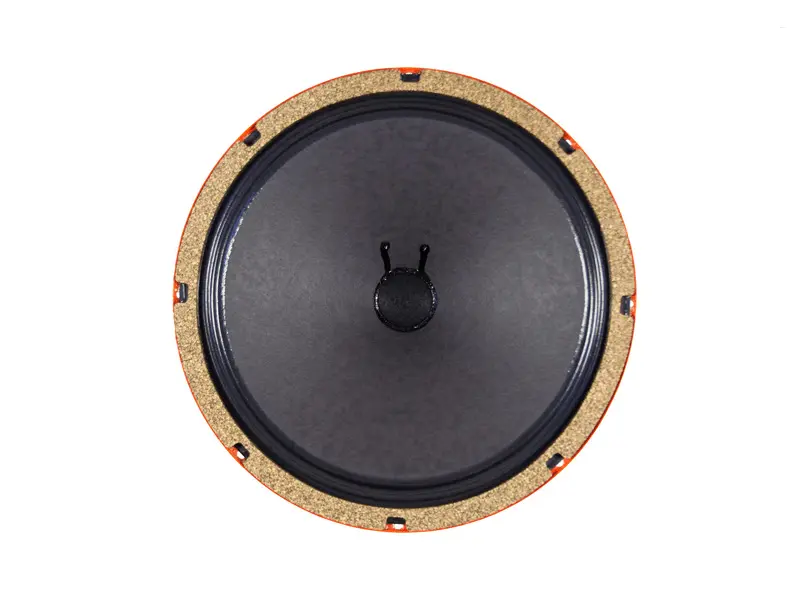

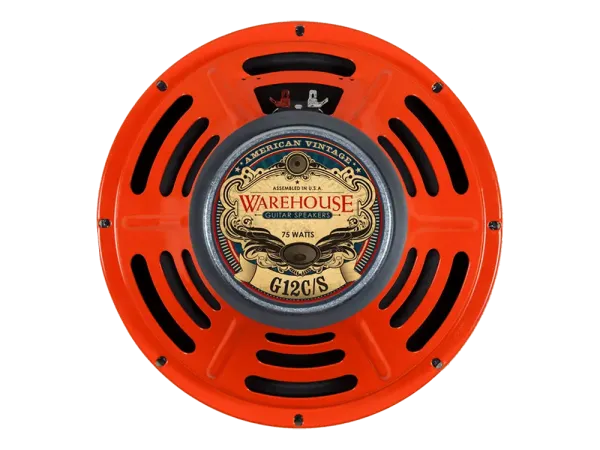

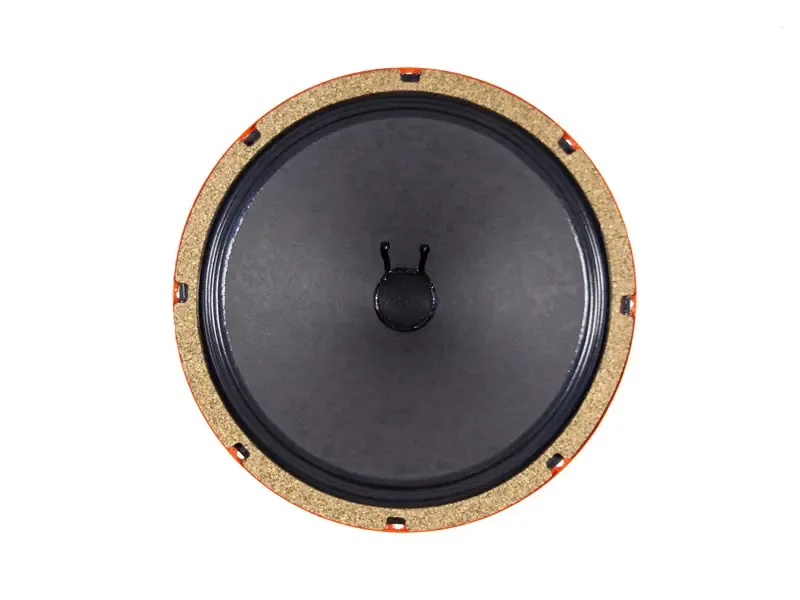

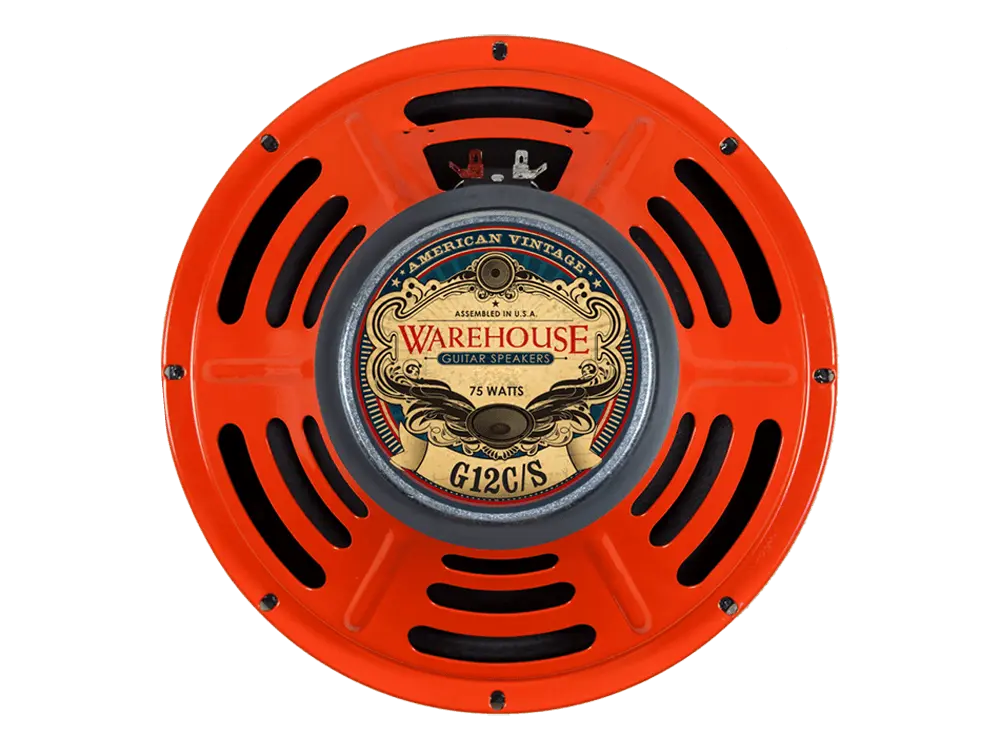

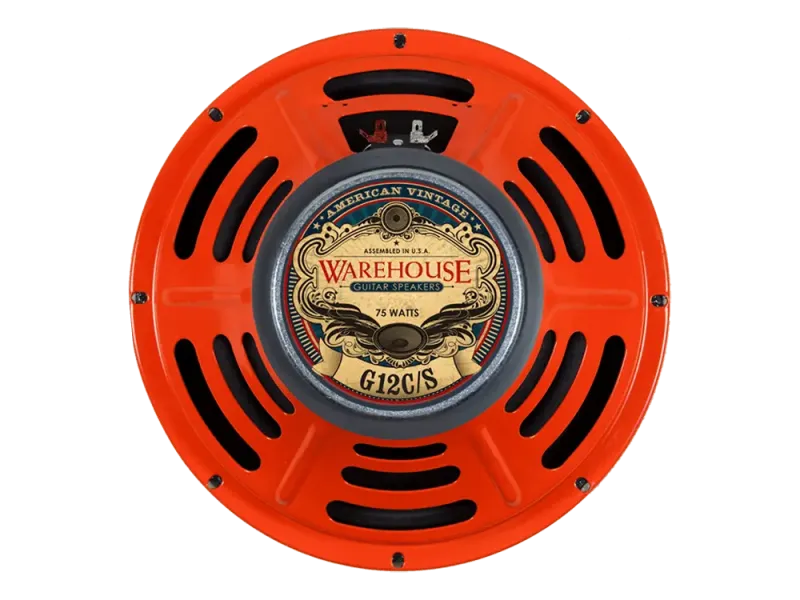

WGS G12 C/S 12" / 75 W / 8 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Clamp for capacitors

• Material: Steel, galvanized
• Diameter: 40 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

The Sovtek 12AX7WA is a defacto standard in 12AX7 tubes for many years yet because of its high dependability and its low noise floor.

4 tubes, matched as quad

JJ EL84 / 6BQ5 Red Label

Files:

• Datasheet

• Type: Multisection Capacitor
• Capacitance: 32 + 32 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

4 tubes, matched as quad

The 6L6WXT+ features larger plate dimensions and 20 percent higher output than the Sovtek 5881WXT. Extremely low noise and a excellent detailed and harmonic sound, plenty of power and very easy to handle - even while using in "hot" setups.

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet
