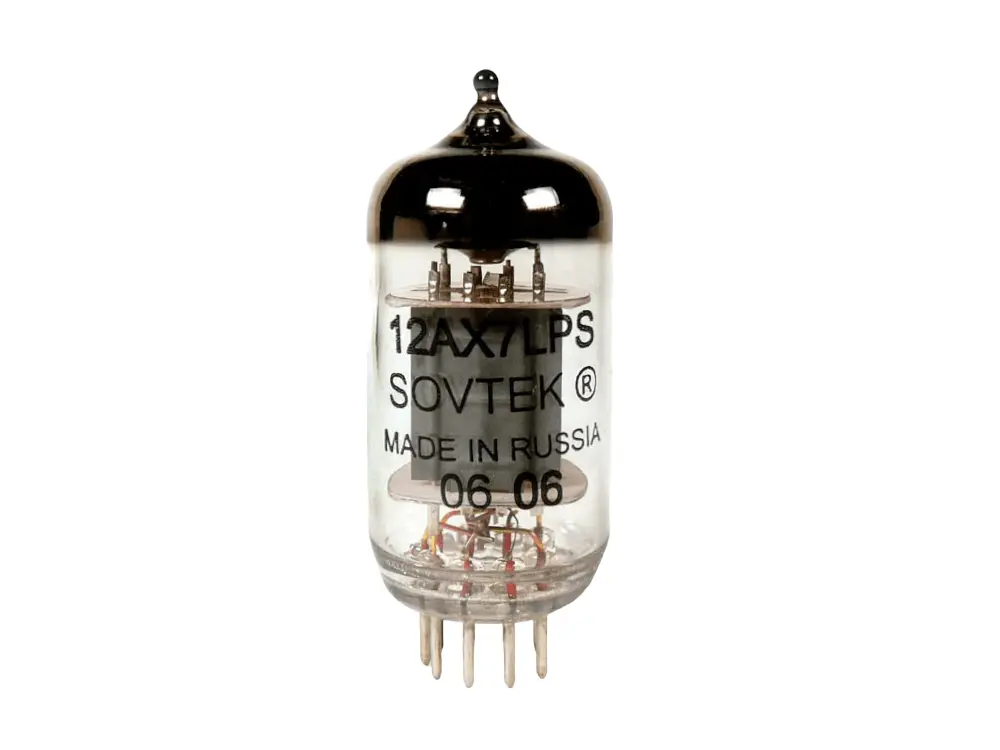

Sovtek 12AX7 / ECC83 LPS

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Tube-Town E83CC Preamp-Tube

High-quality 12AX7 / ECC83 / 7025 preamp tube with low background noise and reduced feedback tendency due to short anode plates, as well as a powerful bass and a dense sound. Very suitable for input stages with high amplification or amplifiers with generally high gain.
Dropin replacement for all 12AX7, ECC83, 7025, and E83CC tubes.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.
