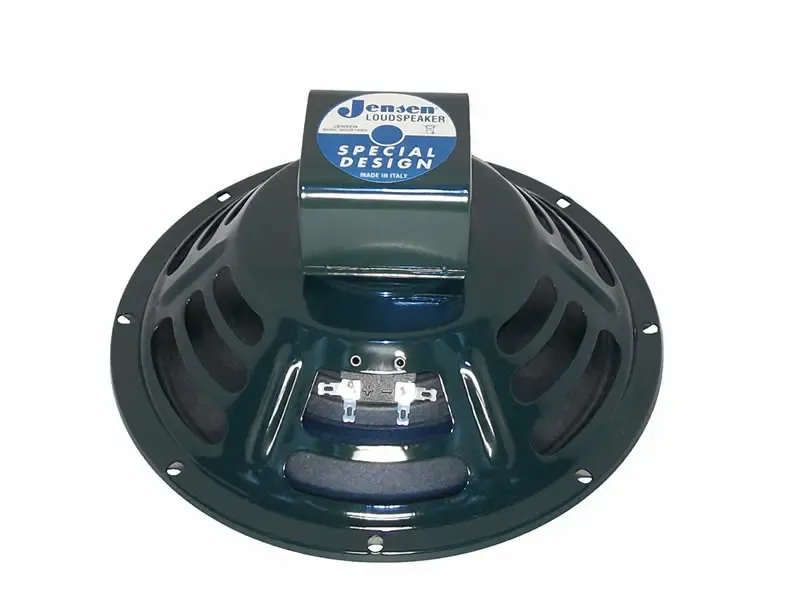

Jensen P10R - 8 Ohms

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Vishay ORANGE DROP® 225P

• Type:  Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,1 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 7 x 14 x 18 mm
• Termination Style: radial
• Grid: 15

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,047 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 5 x 11 x 18 mm
• Termination Style: radial
• Grid: 15

• Type: Electrolytic can capacitor
• Capacitance: 10 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: radial
• Grid: 2,0

Images are for reference only. See Product Specifications

• Resistance: 25k Ohm
• Power: 0,25 W
• Max Voltage: 250 V
• Grid 12,5/10 mm
• Ø: 15,0 mm
• h: 7,0 mm

TT Selection: Balanced
Both systems with balanced gain

ECC82 / 12AU7 medium gain pre-amplifying double triode.
Provides a very smooth sound with well-defined tones suitable for audio and guitar amplifiers.


Files:

• Datasheet

Very linear working 12AX7 / ECC83 with long anode plates and spiral heating, which makes the tube less sensitive to interference from AC heating.
We recommend this tube for audio and high-end amps as well as for "modern" Fender amps with more overdrive, but also as an input tube in old Marshall JCM800s.

Note: Tubes equipped with long plates are commonly associated with a "warmer" or "richer" sound, whereas those with shorter plates tend to deliver a "tighter sound". However, tubes featuring long plates exhibit increased sensitivity to vibrations and mechanical disturbances, rendering them less ideal for critical applications.

Files

• Datasheet

4 tubes, matched as quad

The Sovtek 5881 delivers a warm, round tone that "sweetens" any vintage or modern guitar amp design. Chances are if an amp uses 6L6-style output tubes, it has Sovtek 5881's in its sockets. Built to rigid military standards, the 5881 will tolerate higher voltages than any other 6L6. In fact, they're frequently used as replacements for the old 7027 model in vintage Ampegs.
