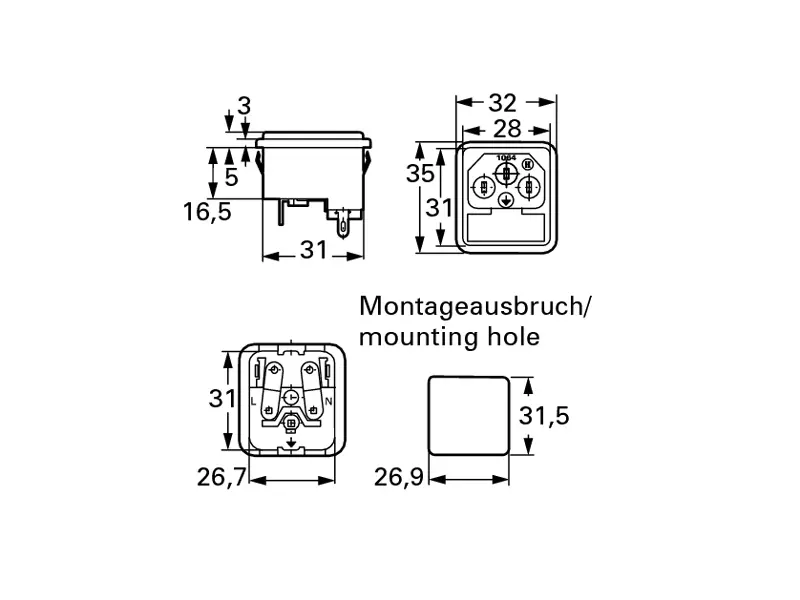

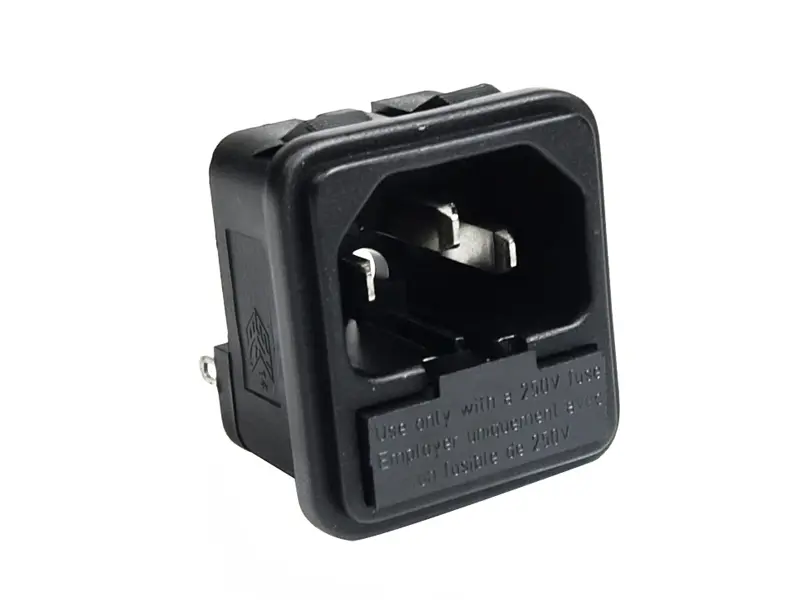

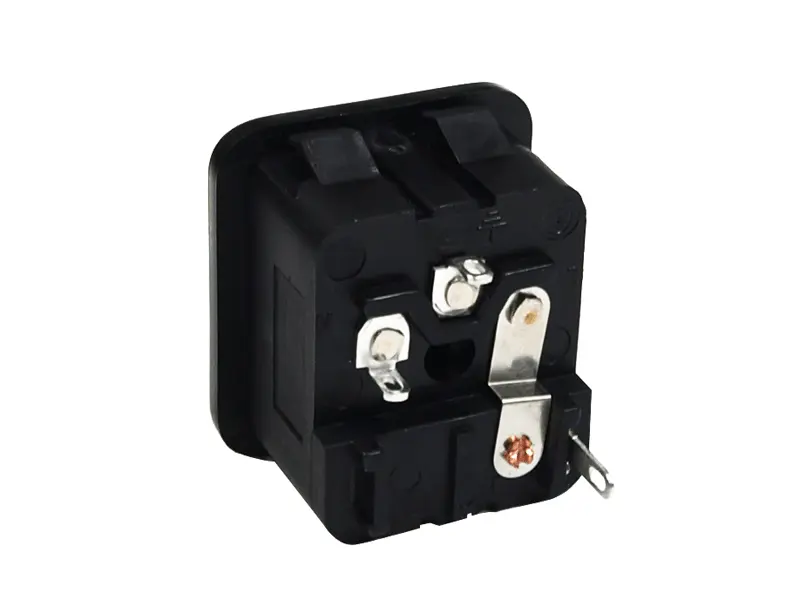

Power Jack IEC320 / C14 w/ fuseholder, Snap-in, Schurter

• Power Jack with built-infuse holders 5.0 x 20 mm
• Housing: polyamide
• for snap-on mounting
• Double-pole + protective ground 10 A / 250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1

• Mini, Layout Type B, Version 2020
• Size: 285 x 165 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

Please note: The chassis may show traces and marks due to production.

Files:

• Datasheet V2020
• Datasheet V2013 (discontinued)

• Size: 365 x 160 x 65 mm
• 2 mm Aluminium
• Made in Germany
• Mounting: with cage nuts (not included)
• With two cutouts for power plug

Files:

• Datasheet

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

Files

• Faceplate Template

• Version 2020
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

Files:

• Datasheet V2020
• Datasheet V2013

• Mini, Layout Type C
• Version 2020, U-Chassis
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany

Files:

• Datasheet V2020
• Datasheet

• TT-Chassis Aluminium - Typ 003
• Size : 590 x 190 x 64 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• Made in Germany
• Version 2019 Update: Reinforced corners

Files:

• Datasheet
• Datasheet (old)

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

Files

• Faceplate Template

• U-Shape Chassis
• Version 2020 U
• Size: 480 x 160 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• Mounting: with cage nuts (not included)

Files:

• Datasheet V2020
• Datasheet old version

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

High Power Rotary Switch e.g. for impedance selector switch

• open version
• 1 x 3 Pos, 4-times
• Break-before-make
• Max. Voltage: 380 VAC / 220 VDC
• Max. Current: 3A / 100 VA per contact
• Connection solder contacts
• Shaft Diameter 6 mm, D-Shaft

The switch has four 1 x 3 Pos switches.
Higher switching capacity can be achieved by parallel connection

• Mini, Layout Type C
• Version 2020, U-Chassis
• Size: 285 x 167 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany

Files:

• Datasheet V2020
• Datasheet

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

• Type: Toggle Switch
• Version: DPDT  ON-ON
• Assembly Ø: 12.2 mm
• Switching current: 1,5 A
• Rating: 1,5 A / 250VAC, 3 A / 125VAC
• Insulation resistance: Min. 500 V/DC/100 MΩ
• Contact Resistance: Max. 50MΩ
• Termination Style: solder-lugs

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023)
• Steel nickel plated
• Internal radius: 12 mm
• 16 x Screws with extra flat head, silver

Angled Power Cable, 5m, Black

This universal power cable features an angled plug for space-saving installation. Perfect for replacing an old cold device cable.

Specifications

• Connector Type: Schuko plug (Type F, CEE 7/7) > C13 device socket (cold device connection)
• Max. Current Rating: 10 A
• Operating Voltage: 250 V (AC)
• Cable Type: H05-VV-F3G
• Cable Length: 5 m
• Conductor Cross-Section: 1 mm²
• Color: Black
• Compliance: CE, WEEE

4 tubes, matched as quad

Superior power Beam tetrode with large plate dimensions and improved grid structure for increased power handling capabilities. Excellent tone and performance compared to most other 6L6 or KT66 types.

• Modeled after the vintage RCA 6L6GC "blackplate"
• Mica spacers with metal springs eliminate tube rattle and microphonics
• 5881/KT66 equivalent
