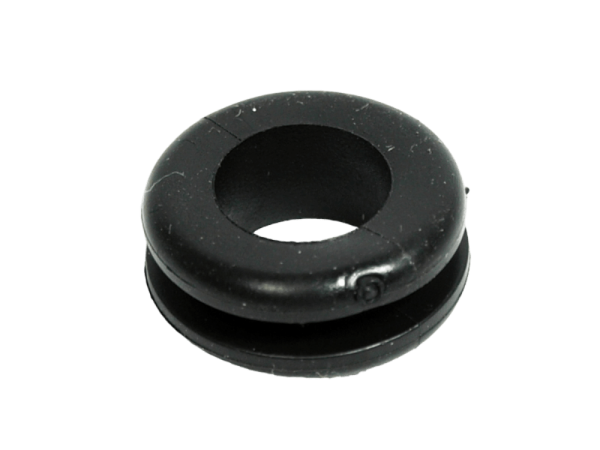

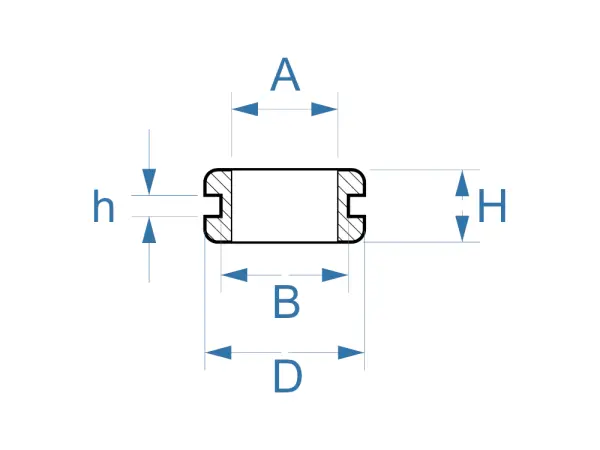

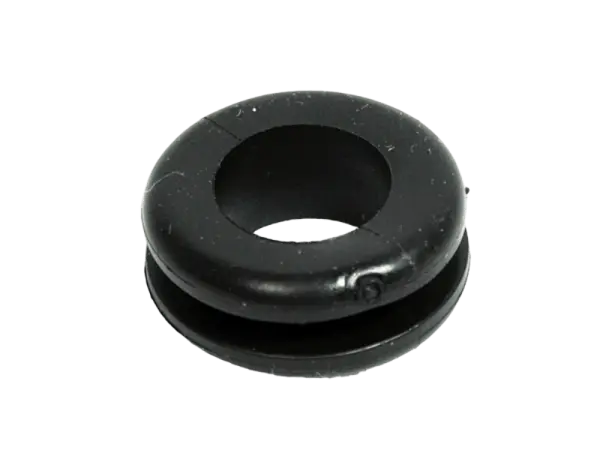

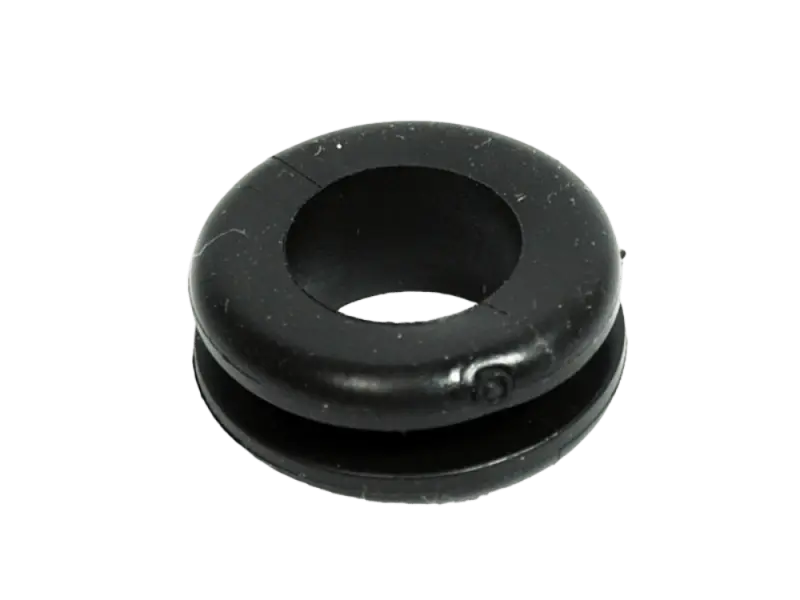

Grommet 10 mm

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

Files

• Faceplate Template

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

Files

• Faceplate Template

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

Files:

• Datasheet

Protective contact plug (Type F, CEE 7/7) > Loose cable ends.
The power cable with open ends and crimped wire end sleeves for confectioning. This power cable comes with a plug (angled) for connecting to electrical devices. The power cable can be creatively and versatilely used.

Technical Specifications

• Connection Type: Protective contact plug (Type F, CEE 7/7)
• Connection 2 Type: Loose cable ends
• Maximum Current Rating: 10 A
• Operating Voltage: 250 V (AC)
• Cable Length: 2m
• Conductor Cross-section: 0.75 mm²
• Cable Type: H05-VV-F3G
• Color: Black
• Markings: CE

1/4" stereo jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

Files

• Datasheet



The 12” Veteran 30™ speaker from WGS is tonally superior to Celestion's™ Vintage 30™ speaker. The tonal improvement is in the upper-mids. The Veteran 30™ speaker has smoothed out the upper-mid "spike" notorious in the Vintage 30™ speaker.

Unit Weight:  10 pounds

Mounting Information

• Diameter:12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 94.84 Hz
• DC Resistance (Re): 7.99 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 12.15
• Electromagnetic Q (Qes): 0.78
• Total Q (Qts): 0.74
• Compliance Equiv. Vol. (Vas): 18.53 cu ft
• Mech. Compliance of Susp. (Cms): 0.10 mm/N
• BL Product (BL): 13.25 T-M
• Diaphragm Mass Inc. Airload (Mms): 28.88 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.84 db

for building turret boards

4 tubes, matched as quad

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet
