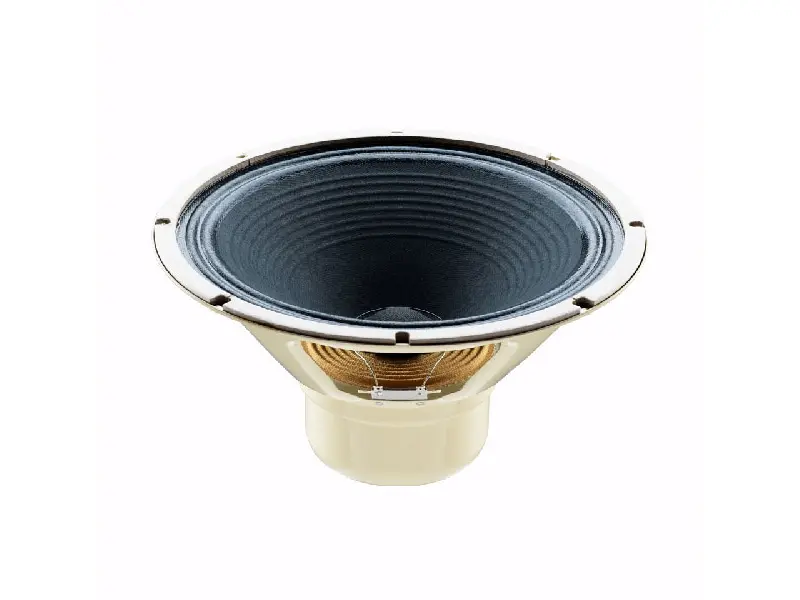

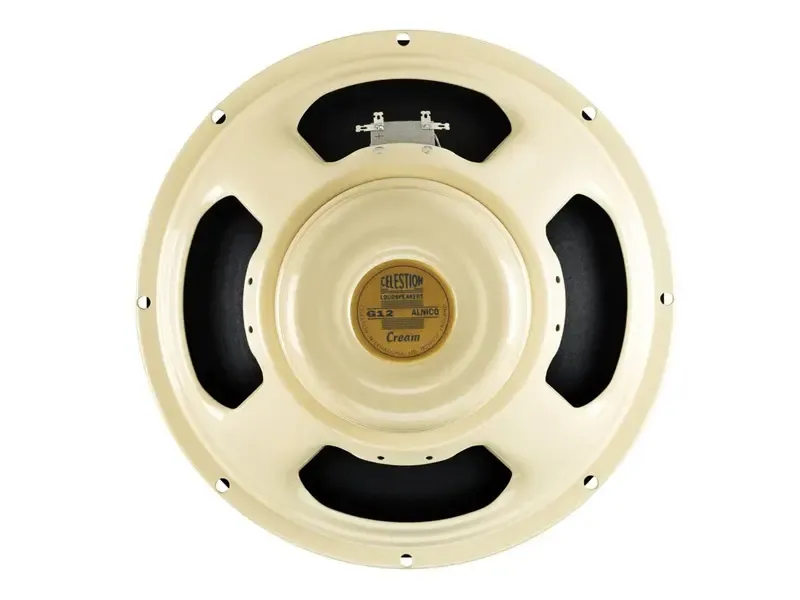

Celestion Cream AlNiCo 12" / 90 W / 8 Ohm - MADE IN UK

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Universal Primary: 120/220/230/240V 50/60 Hz
• Powertransformer for (Bronco, AA764, AB764, Blackface, Silverface) (Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface) (Harvard, 6G10) (Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A) (Princeton, Brown, AA964, Blackface, Silverface) (Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface)
• Fender Part Number 125P1B and 022772
• 291AEX uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.

Files:

• Datasheet

• Threading: 9/16 - 24

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.

Faceplate for TT Amp-Kit 5Ä3 - MKII

• Color: #C14 brushed silver / black
• Material: 1,5 mm Transply
• Front + Rear Panel

Files:

• Template

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.
