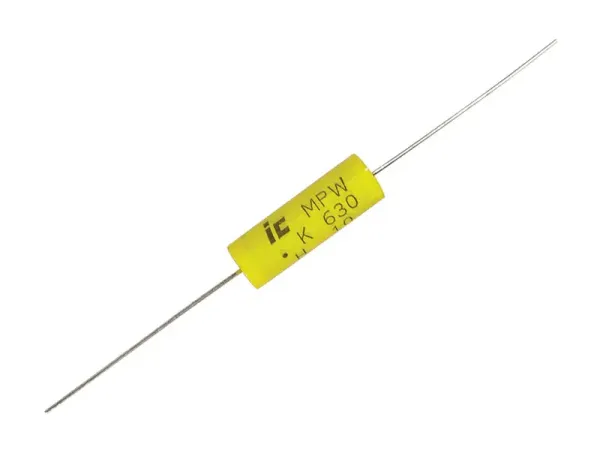

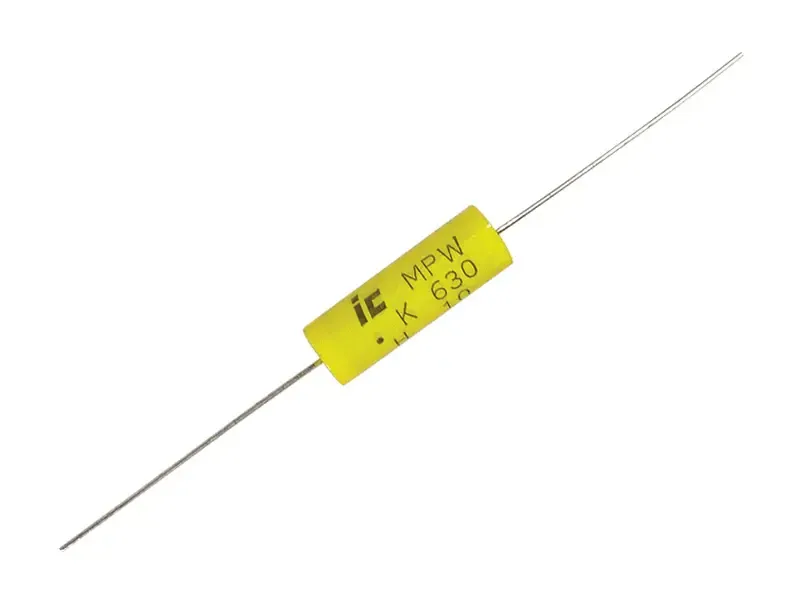

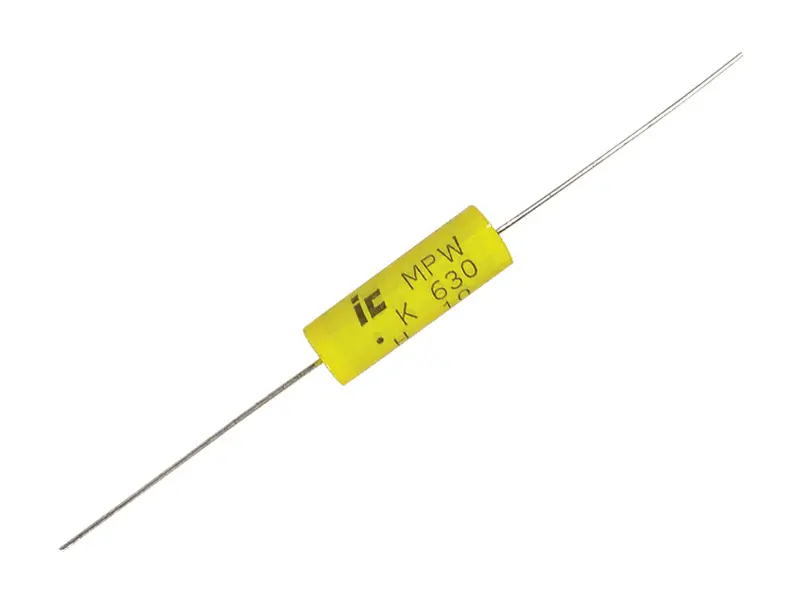

Polypropylene Capacitor, axial, 630V, 0.0022uF

Description

MPW axial leaded metallized polypropylene film capacitors
Self Healing
Low ESR
Tolerance: +10% @ 1 kHz, 25°C
Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
Size: Ø 6,5 x 14,5 mm
Dielectric: Polypropylene
Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)
