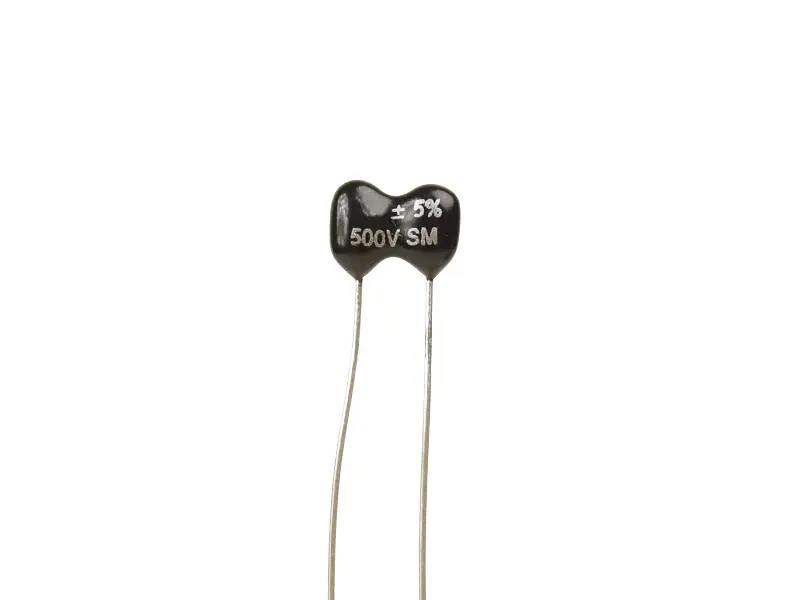

Silver Mica 100 pF

Description

Mica Capacitors

Voltage Rating: 500 V
Tolerance: 5%
Operating Temperature Range: - 50°C / + 150°C
Termination Style: radial
