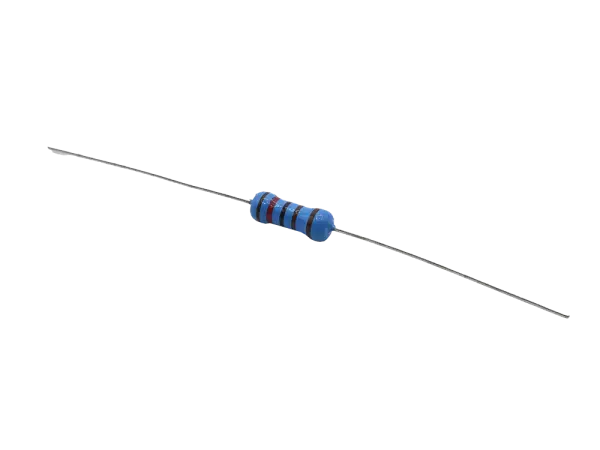

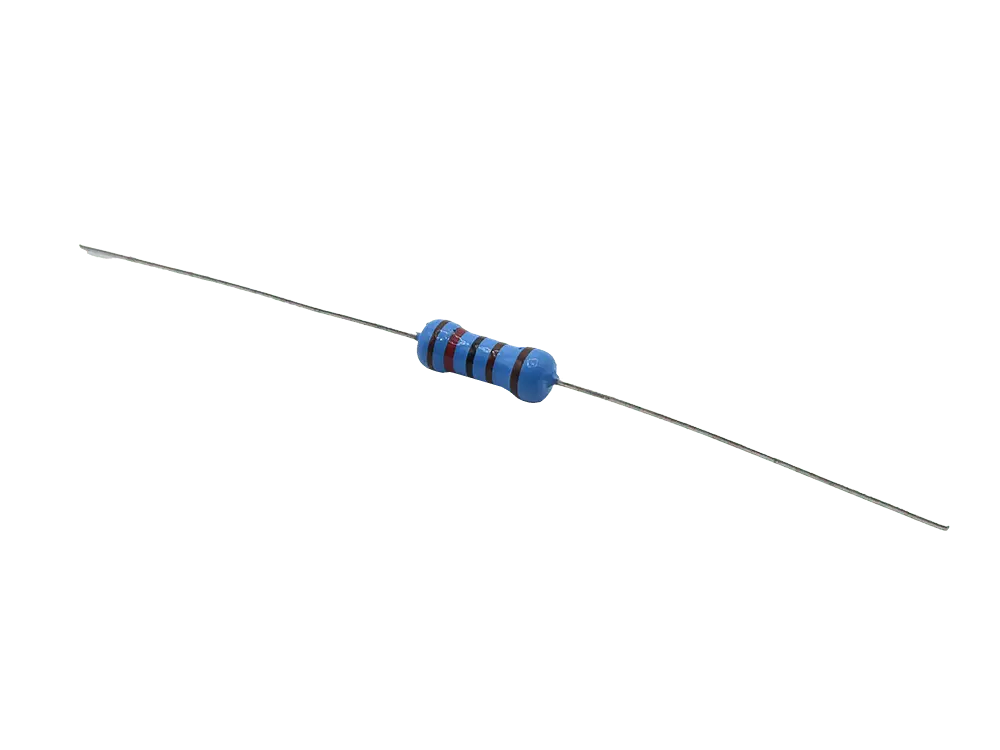

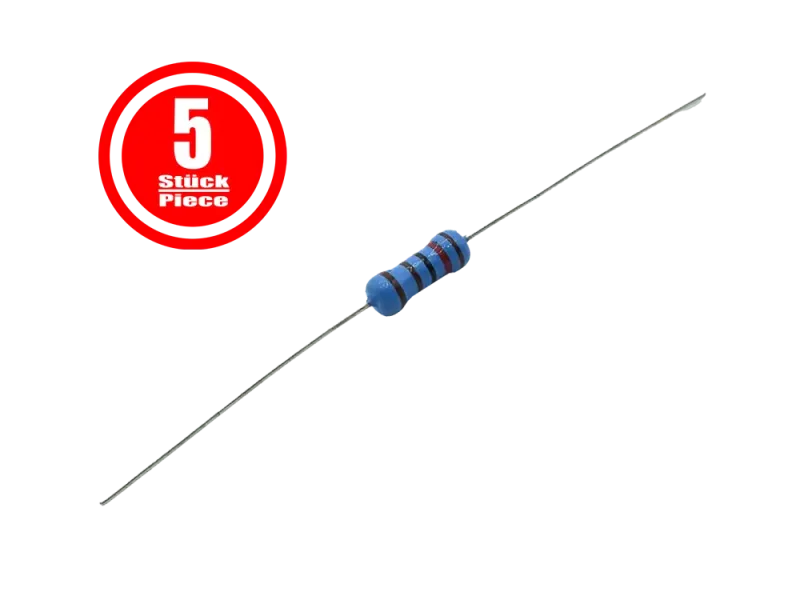

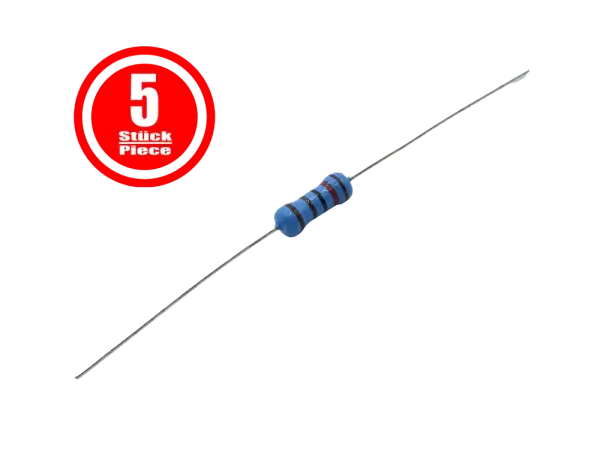

Metalfilm Resistor 10k Ohm / 1% / 0,5 W - Pack of 5

Product No.:: rxi-10k-5
: In stock. Delivery time depends on the destination country*
Stock:: Pack
RoHs:: conform
Weight:: 0.001 kg per Pack

0,85 €
0,17 € per Piece

incl. VAT excl. Shipping costs

Pack:

Quantity

Bookmark

Ask Question

Description

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating
