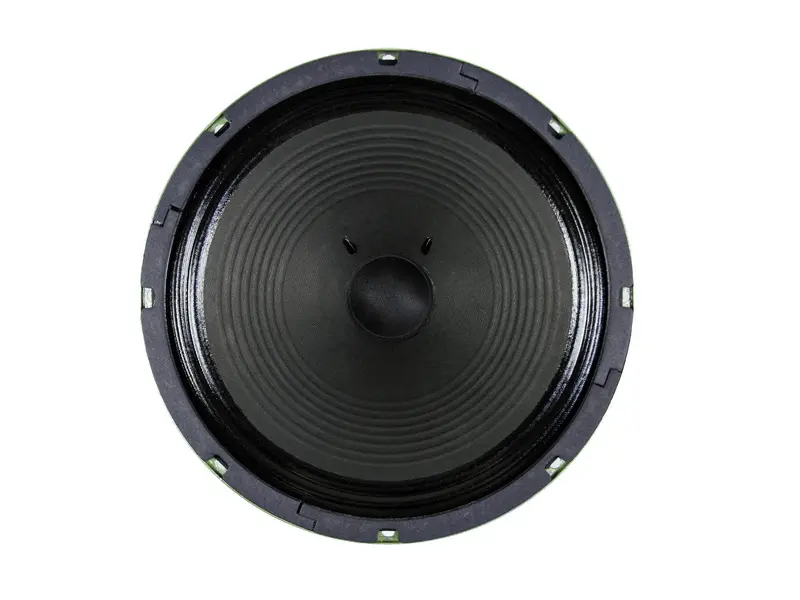

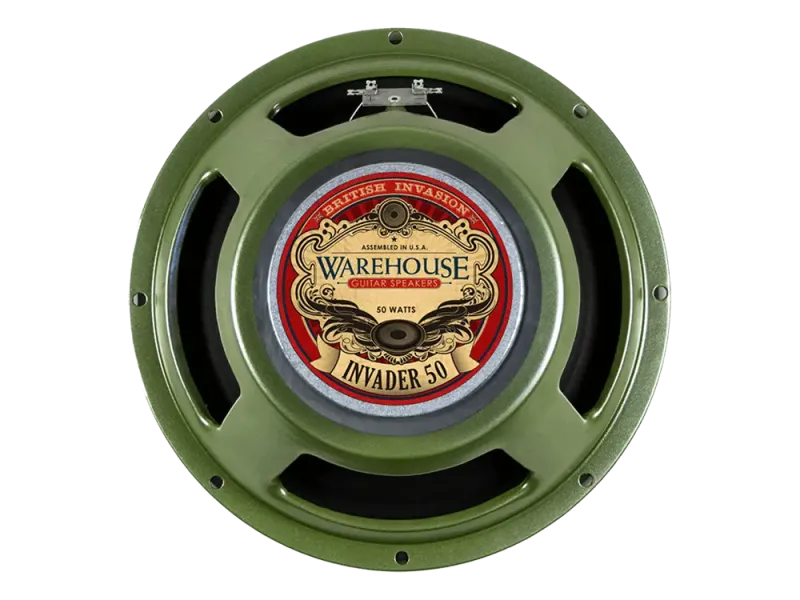

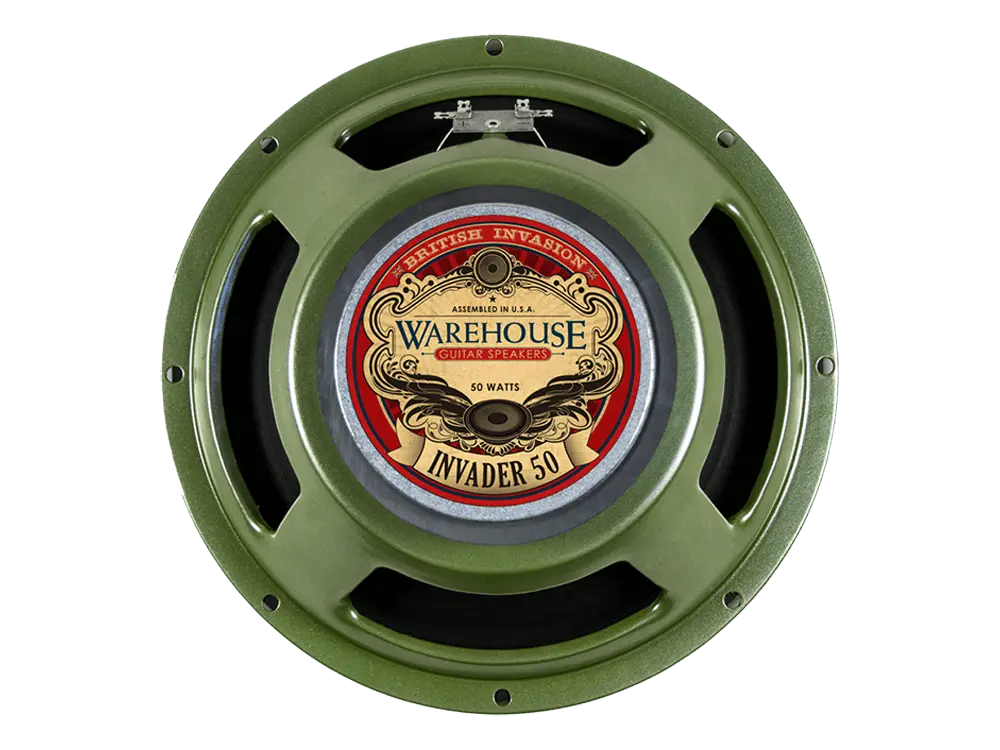

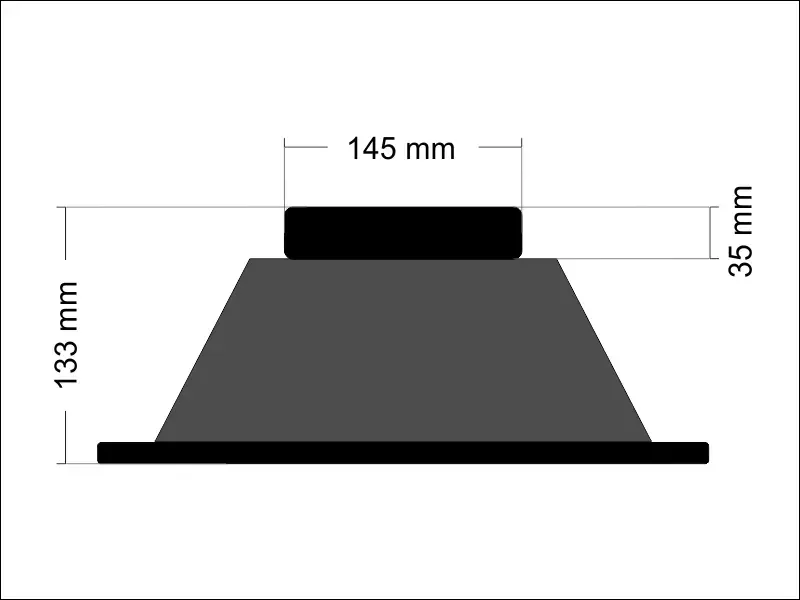

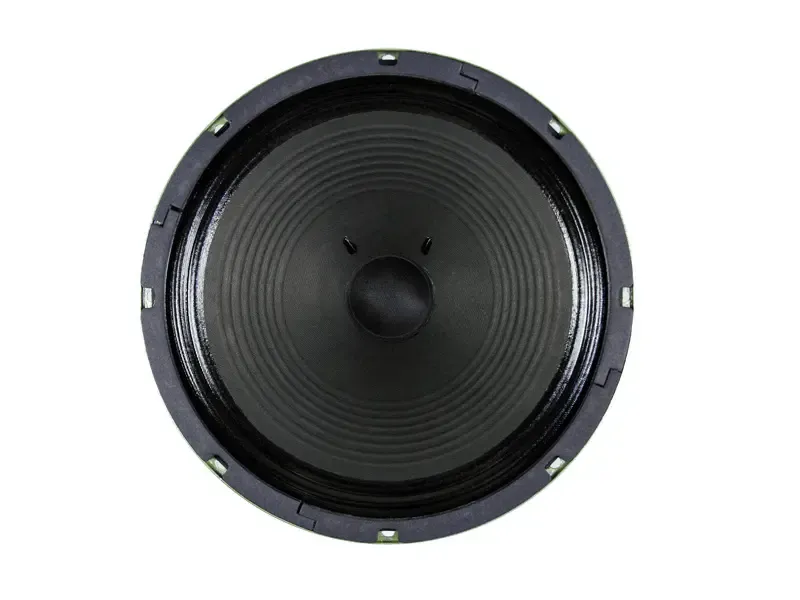

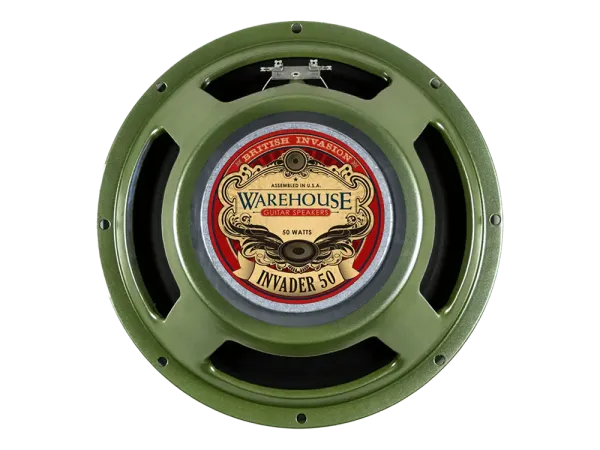

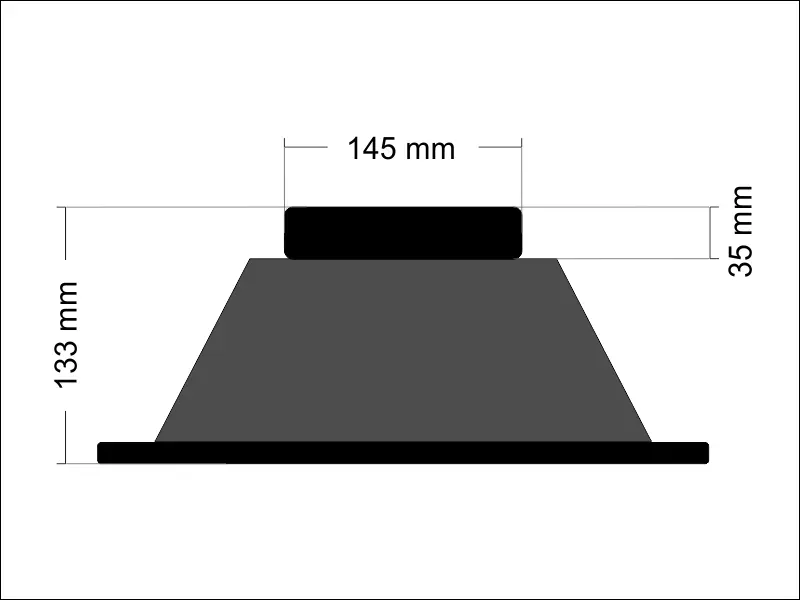

WGS Invader 12" / 50 W / 16 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

The Sovtek 12AX7WA is a defacto standard in 12AX7 tubes for many years yet because of its high dependability and its low noise floor.

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

Bourns PDA24 Potentiometer, SRT-Type (Standard Rotational Torque), smooth torque
This specialty potentiometer is commonly used in guitar and bass amplifiers. However, it is also suitable for use in electric guitars and basses. This product is designed with the features most widely requested by amplifier designers.

• Mounting: Panel
• Shaft Type: round, straight
• Terminal: Solder Terminal
• Power Rating:
  • Log: 250 mW (1/4W)
  • Lin: 500 mW (1/2 W)
• Max. Operation Voltage:
  • Log: 250 V
  • Lin: 500 V
• Standard Resistance Tolerance: 15%
• Operating Temperature: - 10 C bis +70 C
• Diameter Shaft:    6,35 mm
• LengthShaft: 19 mm
• Rotational Torque: Standard, 20 to 40 g-cm

2 tubes, matched as pair

The Sovtek EL84 series produces an unbeatable smooth, warm distortion sound. Excellent replacements in vintage VOX AC-30's and the like, very popular in Fender, Crate and Peavey amps.
