Bourns Potentiometer 1M Log SRT

• Material: #LG10 ProReverse Gold glossy lacquered
• Front + Back Panel
• This faceplate is for the TT chassis of the JT45 kit, NOT as replacement faceplate for an original JTM45 chassis.

Files:

• Template

• Type: Electrolytic can capacitor
• Capacitance: 10 µF
• Voltage Rating: 250 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 10 mm x 20 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

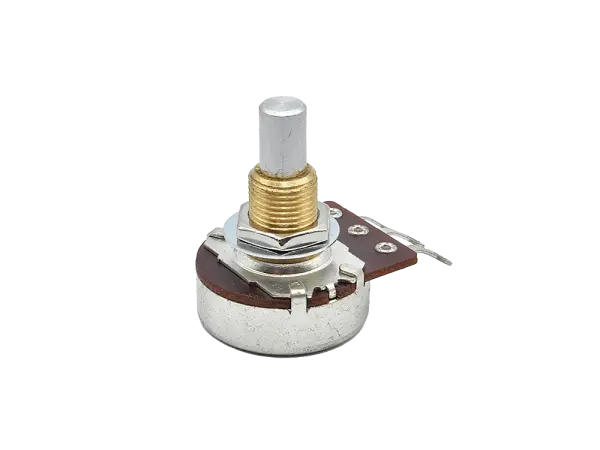

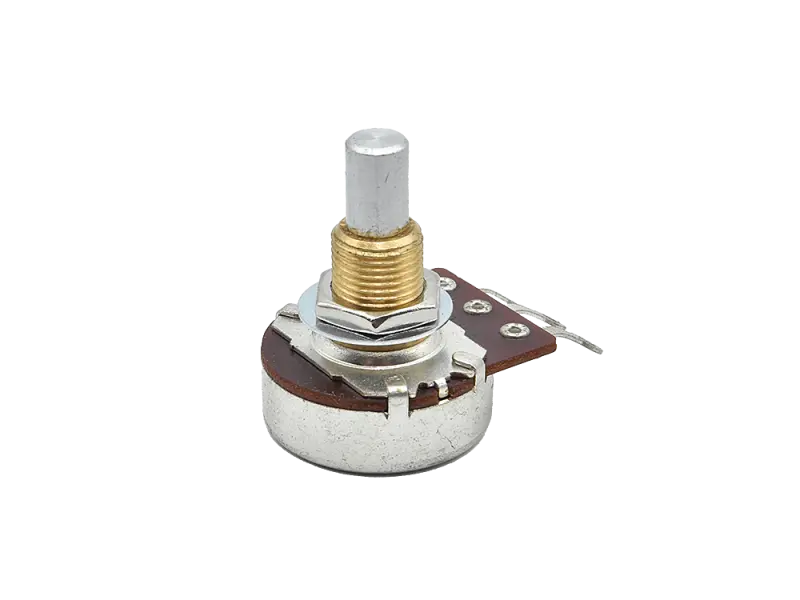

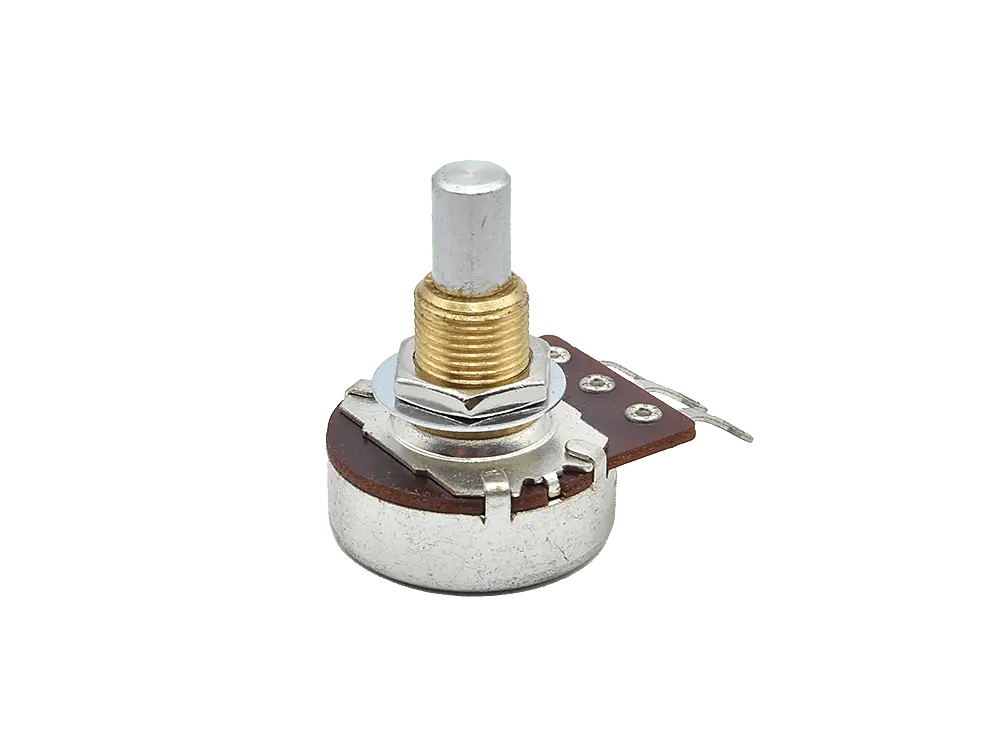

Bourns PDA24 Potentiometer, SRT-Type (Standard Rotational Torque), smooth torque
This specialty potentiometer is commonly used in guitar and bass amplifiers. However, it is also suitable for use in electric guitars and basses. This product is designed with the features most widely requested by amplifier designers.

• Mounting: Panel
• Shaft Type: round, straight
• Terminal: Solder Terminal
• Power Rating:
  • Log: 250 mW (1/4W)
  • Lin: 500 mW (1/2 W)
• Max. Operation Voltage:
  • Log: 250 V
  • Lin: 500 V
• Standard Resistance Tolerance: 15%
• Operating Temperature: - 10 C bis +70 C
• Diameter Shaft:    6,35 mm
• LengthShaft: 19 mm
• Rotational Torque: Standard, 20 to 40 g-cm

• Power Rating: 250 mW (1/4 W)
• Voltage Rating: 250 V
• Tolerance: 20 %
• Termination Style: Solder Lug
• Element Type: Carbon
• Shaft Diameter: 6,3 mm
• Shaft Type: Solid

• Power Rating: 250 mW (1/4 W)
• Voltage Rating: 250 V
• Tolerance: 20 %
• Termination Style: Solder Lug
• Element Type: Carbon
• Shaft Diameter: 6,3 mm
• Shaft Type: Solid

• Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
• Sec 1: 250 V @ 0,12 A (red / rot)
• Sec 2: 6,3 V @ 3 A (green / grün)
• Sec 3: 12,6 V @ 1 A (purple / lila)
• freie Enden / long leads ca 200 mm
• h= ca.52 mm d= ca.102 mm
• 50/60 Hz EN 61558

• Metalfilm Resistor RN70D
• Very low noise (- 40 dB)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 500 V
• Temperature Coefficient:: 25 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO
