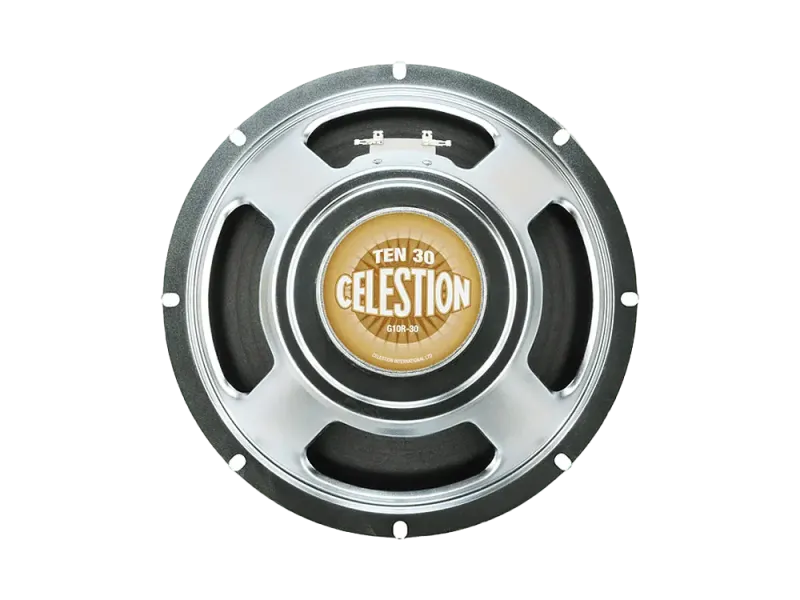

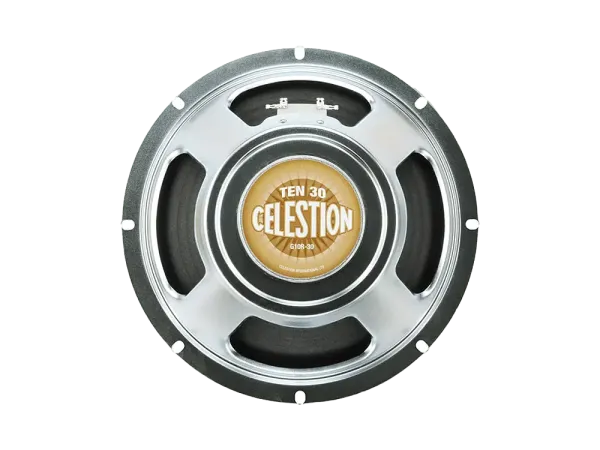

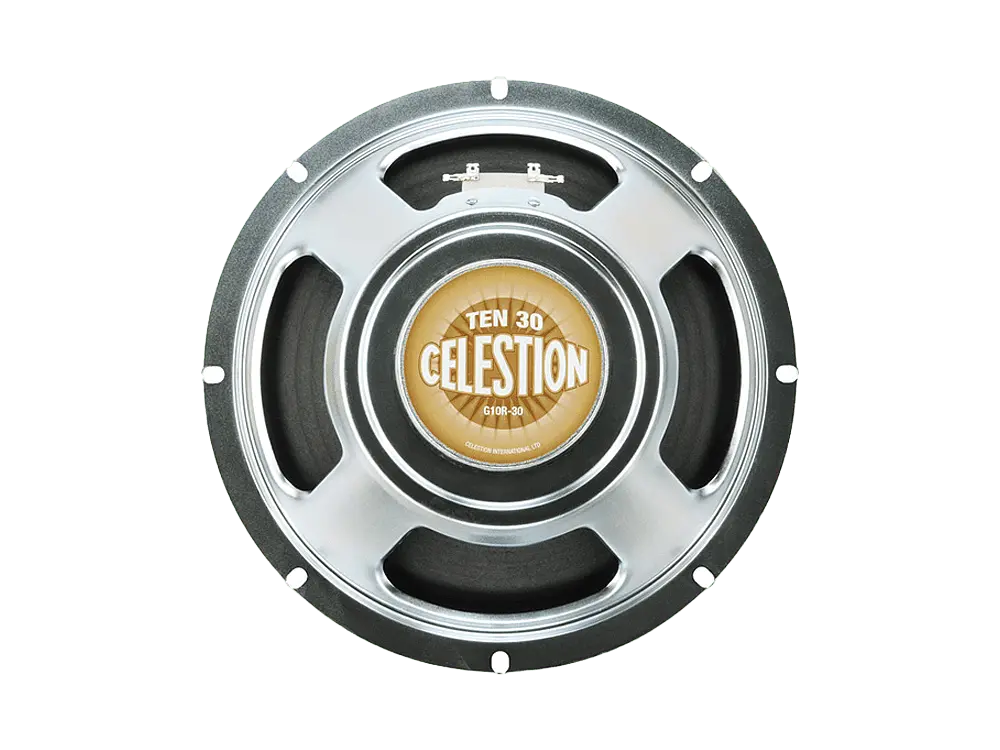

Ten 30
Rich and expressive, the Ten 30 combines warm lows with a vocal mid-range and an articulate top end. The clean sound is open and revealing; push hard and you're rewarded with full-blooded Celestion grind.
General specifications
- Nominal diameter: 10", 254mm
- Power rating: 30Wrms
- Nominal impedance: 8 Ohm
- Sensitivity: 95dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.25", 31.25mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 13oz, 0.37kg

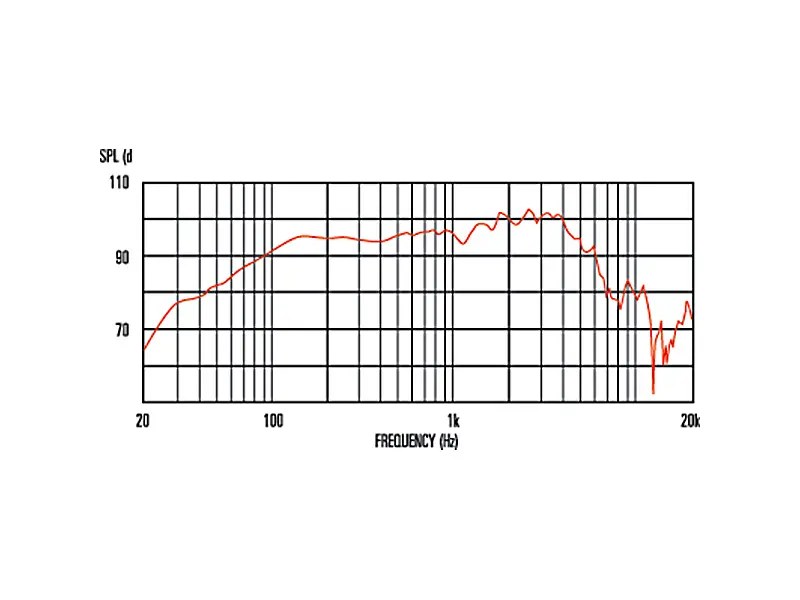

- Frequency range: 85-5000Hz
- Resonance frequency, Fs: 93.9Hz
- DC resistance, Re: 6 Ohm
Mounting Information
- Cut-out diameter: 9.0", 229mm
- Diameter: 10.1", 256mm
- Magnet structure diameter: 3.8", 96mm
- Mounting slot dimensions: 0.24 x 35", 6 x 9mm
- Mounting slot PCD: 9.6", 245mm
- Number of mounting slots: 8
- Overall depth: 3.8", 96mm
- Unit weight: 3.5lb, 1.6kg
