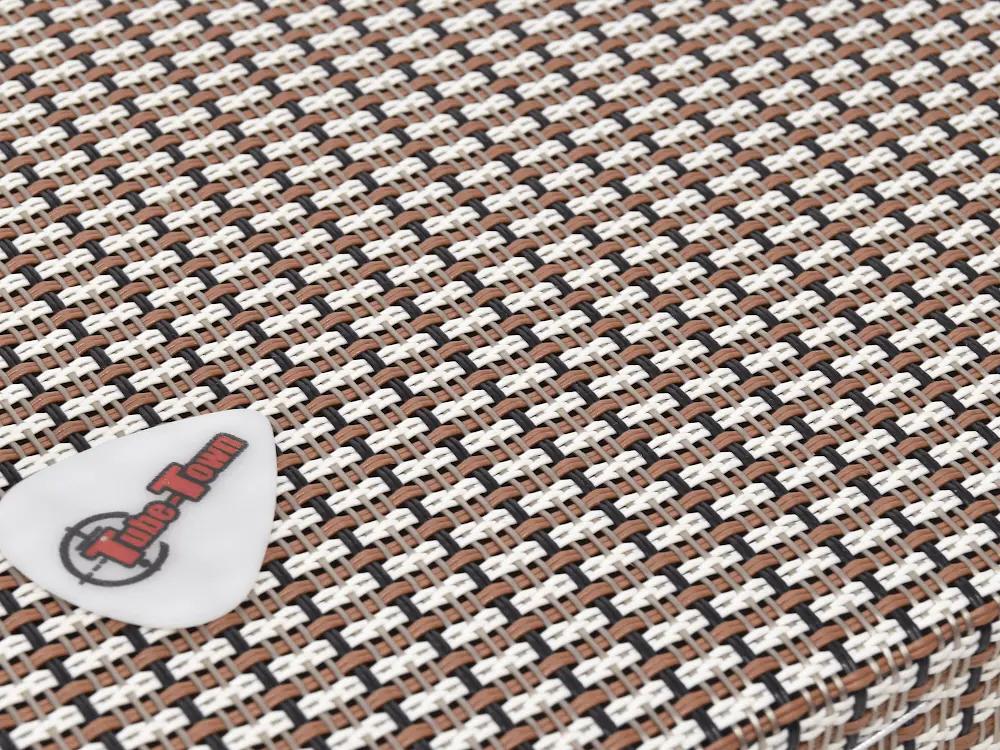

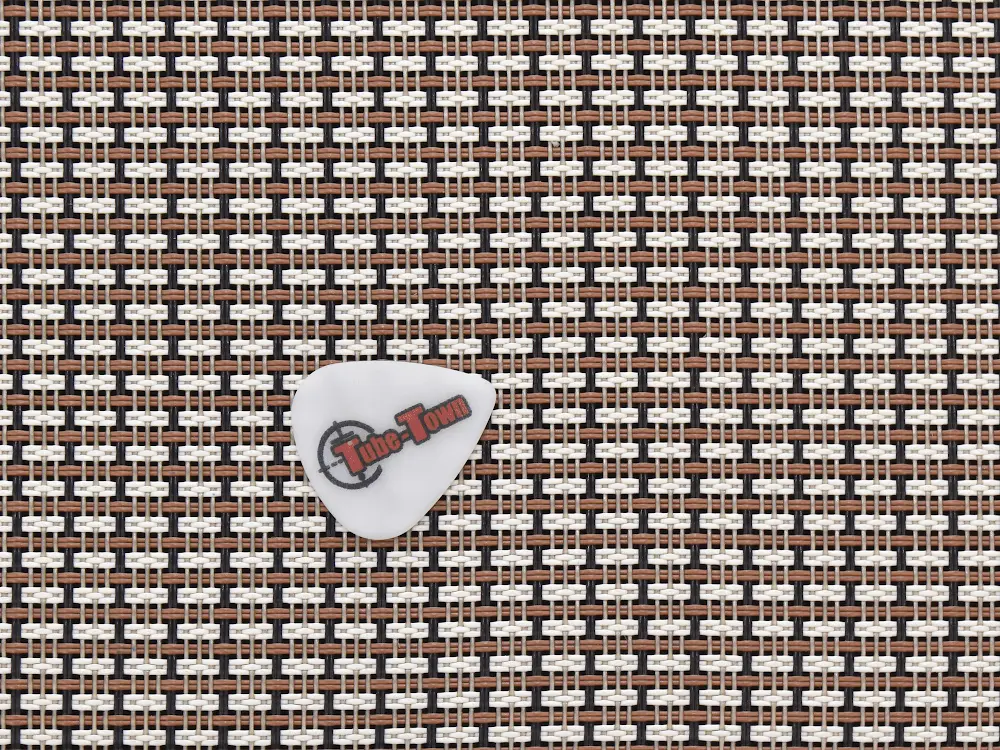

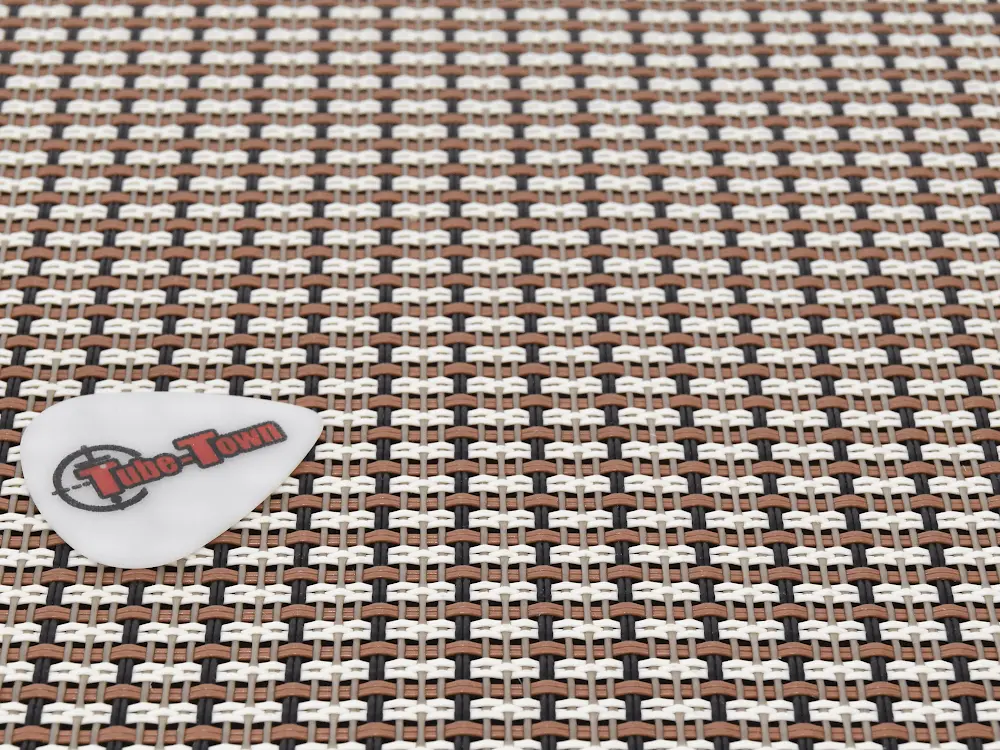

Grillcloth Tube-Town B2W - Black-Brown-White - 75 x 100 cm

• Color and texture like the "Marshall Bluesbreaker" Grillcloth, a little bit brighter
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Schuko plug Hybrid (Type E/F, CEE 7/7) 90° > Device socket C13 (cold device connection) 90°.
This universally applicable power cable has an angled cold device socket and an angled Schuko plug.

Ten 30

Rich and expressive, the Ten 30 combines warm lows with a vocal mid-range and an articulate top end. The clean sound is open and revealing; push hard and you're rewarded with full-blooded Celestion grind.

General specifications

• Nominal diameter: 10", 254mm
• Power rating: 30Wrms
• Nominal impedance: 8 Ohm
• Sensitivity: 95dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.25", 31.25mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 13oz, 0.37kg
• Frequency range: 85-5000Hz
• Resonance frequency, Fs: 93.9Hz
• DC resistance, Re: 6 Ohm

Mounting Information

• Cut-out diameter: 9.0", 229mm
• Diameter: 10.1", 256mm
• Magnet structure diameter: 3.8", 96mm
• Mounting slot dimensions: 0.24 x 35", 6 x 9mm
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 8
• Overall depth: 3.8", 96mm
• Unit weight: 3.5lb, 1.6kg

• Type: Toggle Switch
• Version: DPDT  ON-ON
• Assembly Ø: 12.2 mm
• Switching current: 1,5 A
• Rating: 1,5 A / 250VAC, 3 A / 125VAC
• Insulation resistance: Min. 500 V/DC/100 MΩ
• Contact Resistance: Max. 50MΩ
• Termination Style: solder-lugs

Case Handle imitation leather, Dog-Bone Style

• Mounting fittings: Steel, nickel plated
• Color: Black
• WITHOUT NUTS AND SCREWS

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023)
• Steel nickel plated
• Internal radius: 12 mm
• 16 x Screws with extra flat head, silver

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

• Rubber foot with steel insert
• Size: d = 38 mm, h = 20 mm
• Pack of 4
• Screws included

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

Files

• Datasheet

Set of metal corners for housing consisting of:

• 8 x Cabinet corner, silver (ah4020)
• 24 x Screws with extra flat head, silver
• 1 mm Steel, nickel plated coated.
• Internal radius: 12 mm

Black Speaker Grille with Lightweight Welded PVC Surround
8 mm Square Hole on 11.5mm Pitch Mesh

• Material: Steel
• Material Thickness: 0.7mm
• Weight: 366g
• Diameter: 30.9cm
• mounting brackets NOT included
