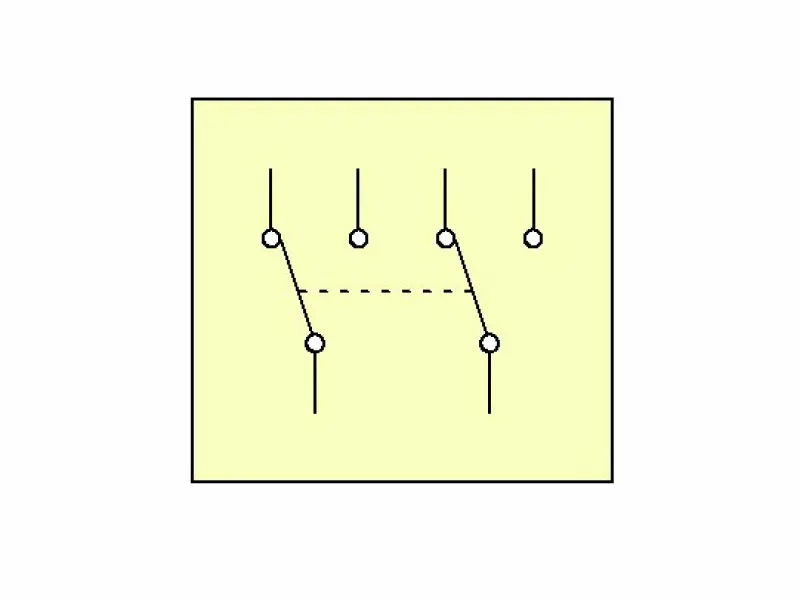

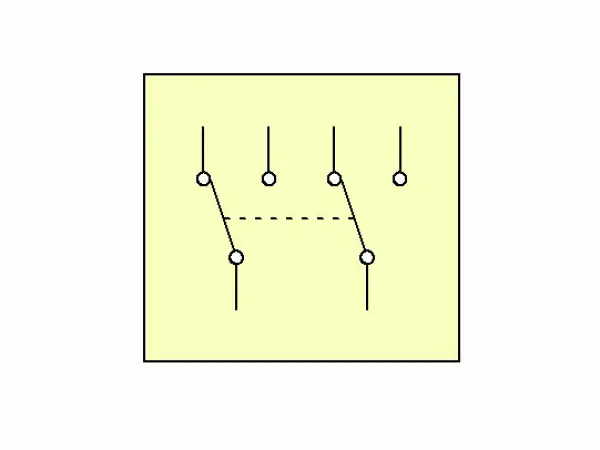

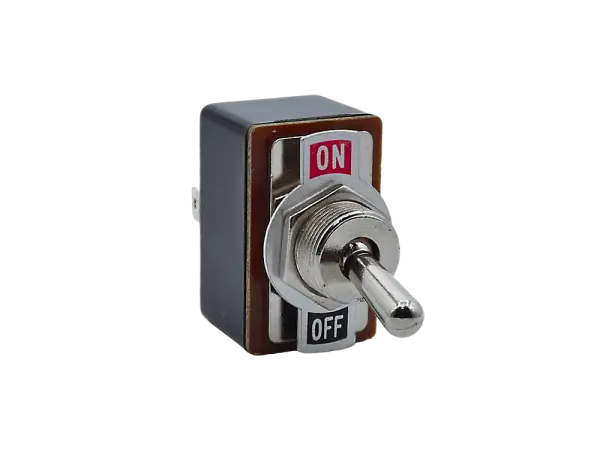

Toggle Switch DPDT - 2 position ON-ON

Mobile Preview: Toggle Switch DPDT - 2 position ON-ON

Description

Type: Toggle Switch
Version: DPDT ON-ON

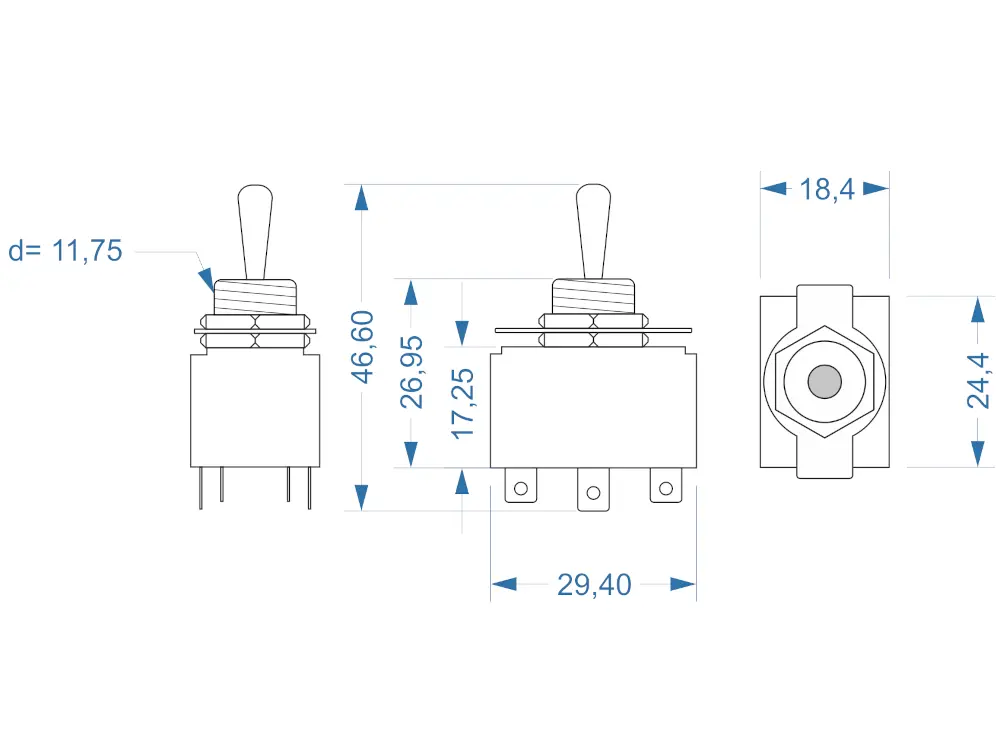

Assembly Ø: 12.2 mm
Switching current: 1,5 A
Rating: 1,5 A / 250VAC, 3 A / 125VAC
Insulation resistance: Min. 500 V/DC/100 MΩ
Contact Resistance: Max. 50MΩ
Termination Style: solder-lugs
