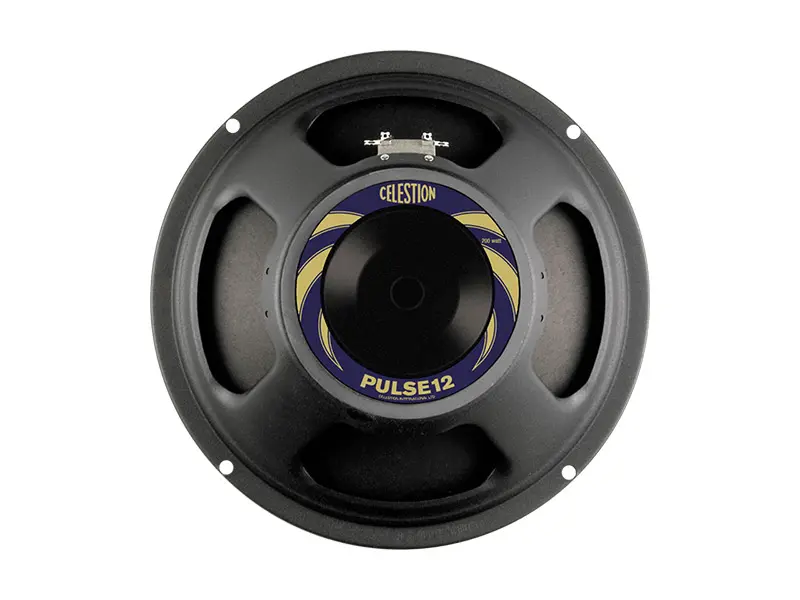

PULSE12
For bass players demanding well-defined clarity and stunning articulationtogether with a rich, full tone, PULSE12 bass speakers deliver an idealcombination of responsiveness and rock solid low end. The Kevlar-loaded conepulses with up to 200 watts of raw bass power. Expect each note to deliver athick, percussive attack along with the mid-range necessary to break through inany performance situation.
General Specifications
- Nominal diameter: 12", 304.8mm
- Power rating: 200W
- Nominal impedance: 8 Ohm
- Sensitivity: 94dB
- Magnet type: Ferrite
- Voice coil diameter: 2", 50.8mm
- Coil material: Copper
- Cone material: Kevlar loaded paper
- Former material: Polyimide
- Surround material: Cloth-sealed
- Frequency range: 45-3500Hz
- Xmax: 0.15", 4mm
- Gap depth: 0.31", 8mm
- Voice coil winding width: 0.62", 16mm
Small Signal Parameters
- D: 0.26m/10.2in
- Fs: 45Hz
- Mms: 47.6g/1.68oz
- Qms: 2.74
- Qes: 0.49
- Mmd: 40.7g/1.44oz
- Qts: 0.42
- Re: 5.88O
- Vas: 104.6lt/3.7cu.ft.
- BI: 12.71Tm
- Cms: 0.26mm/N
- Rms: 4.92kg/s
- Le (at 1kHz): 1.0mH
Mounting Information
- Cut-out diameter: 11.1", 283mm
- Diameter: 12.2", 309mm
- Mounting slot dimensions: 0.31", 7.9mm Ø
- Mounting slot PCD: 11.7", 297mm
- Number of mounting slots: 4
- Overall depth: 5.1", 130mm
- Unit weight: 7lb, 3.2kg
