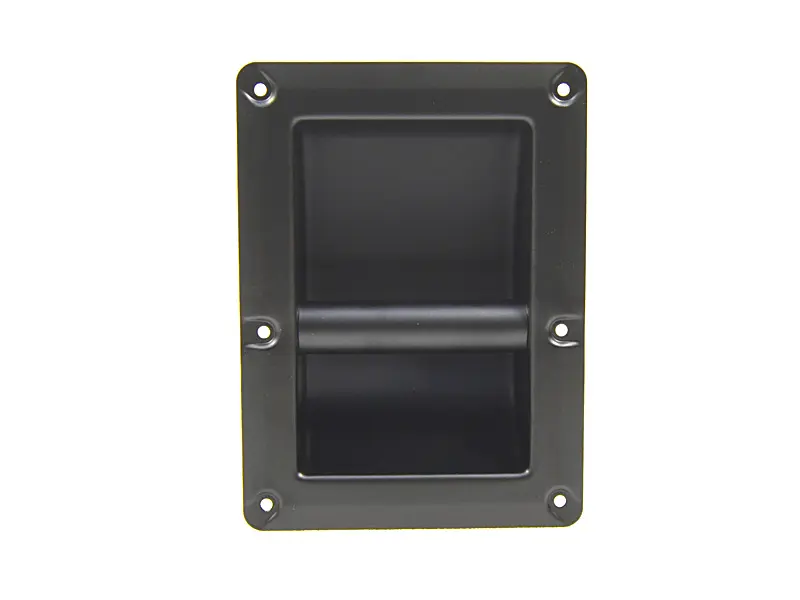

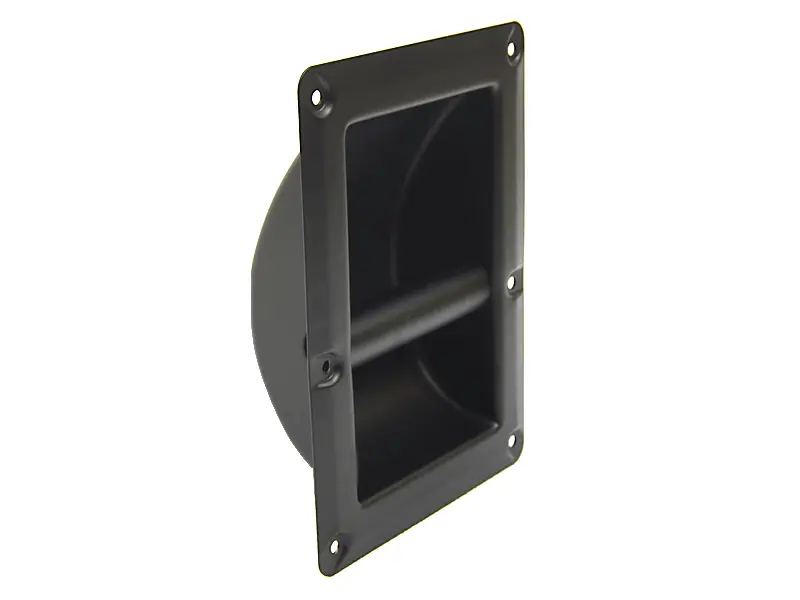

Steel bar handle black w/ rivet protection

• 1x internal and 1x external thread
• Thread size: M4
• External thread: 8.0 mm
• Internal thread: 8.0 mm
• Material: galvanised steel
• Length: 15 mm

• Reverb Driver 125A20B / 022921 Single-Ended
• Pri: 22800 Ohm
• Sec: 8 Ohm
• Power: 3,5 Watt

Files:

• Datasheet

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color dark gray

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

• Rubber foot with steel insert
• Size: d = 38 mm, h = 25 mm
• Pack of 4

• Rubber foot with steel insert
• Size: d = 38 mm, h = 20 mm
• Pack of 4
• Screws included

Soldering Lug M3

• brass, silver-plated
• Pack of 10

• Output Transformer 125A1A / 022640 Push-Pull
• for Deluxe, Deluxe Reverb
• Pri: 6,600 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 20 Watt

Files:

• Datasheet

• Type: Footswitch
• Version: 3PDT
• Rating: 2A / 250VAC, 4A / 125VAC
• Termination Style: solder-lugs
• LED ring
• LED colour: red
• LED: U=2,2 - 2,4V, I = ca. 7-10mA
• Mounting hole: 17,2 mm
• Lifetime: > 10000 cycles
• without cap

• Mounting fittings: Steel, nickel plated
• Color: Light brown
• WITHOUT NUTS AND SCREWS

Ring Tongue Cable lugs
for cables 1.5 - 2 mm²
Made of tinned electrolyte copper. With crimp terminal.
d = 5.3 mm

• Mounting fittings: Steel, nickel plated
• Color: Dark brown
• WITHOUT NUTS AND SCREWS
