Trim Strip black - Pack of 2 m

Double Relay Switcher for channel switching and similar applications.

The kits comes with all components incl. 6 V Finder relaise but without switches for the front panel.
Works with 6,3 V heater voltage.

Files:

• Datasheet

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet

Cliff 1160 mono jack

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

• Size 5 x 14 mm

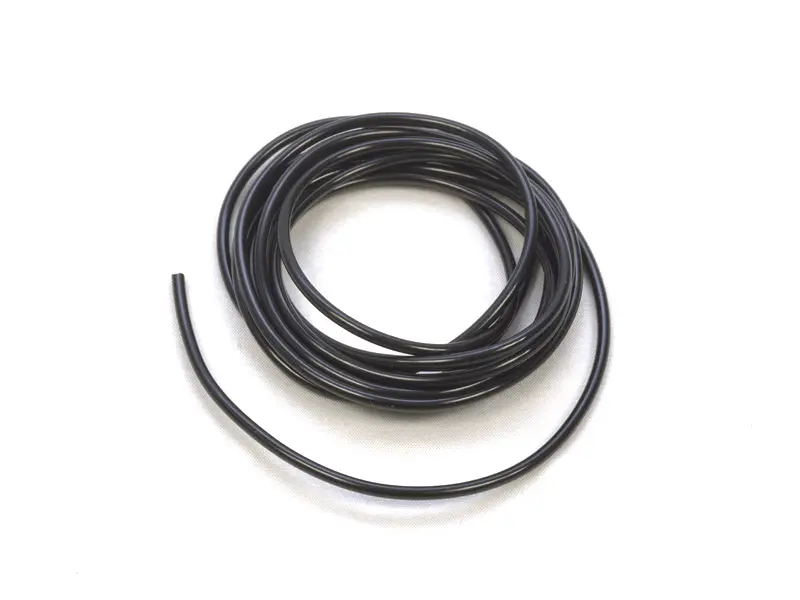

• 4 m piece

• Plastic covered with steel inner core
• End plates: Steel, nickel plated
• Color: Black
• WITHOUT MOUNTING HARDWARE
