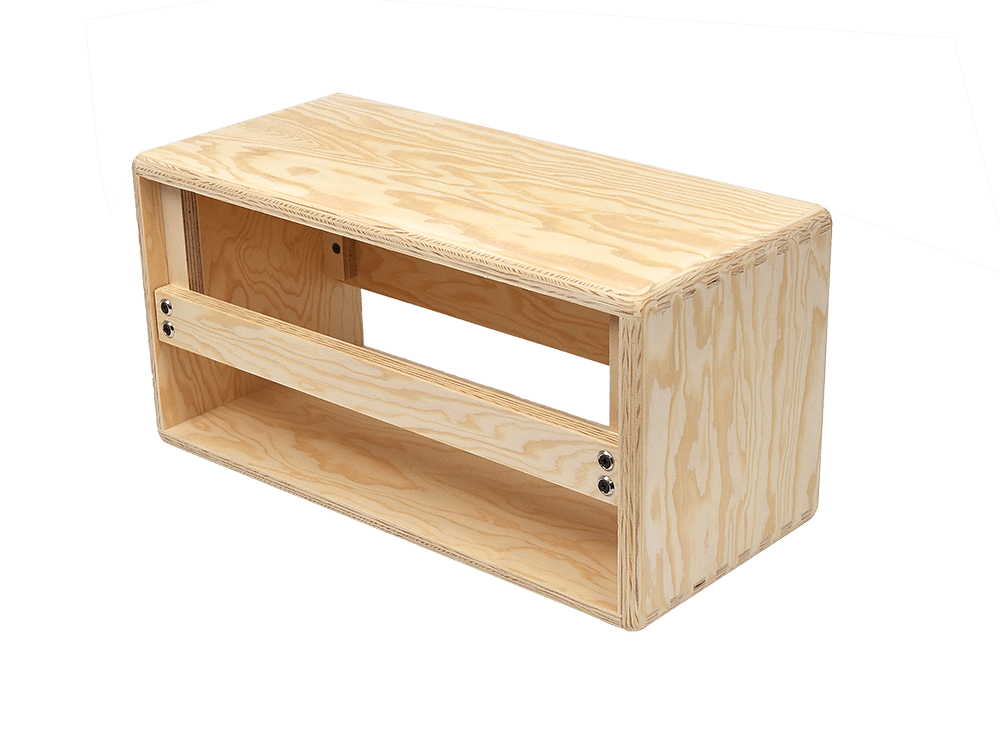

TTC Universal Headshell Lemberg 024

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

• Size: Custom Size
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth:  -
• Hardware: customer preference
• Back: Open-Back or Closed-Back
• Speaker: None

Note: This cabinet can also be ordered in a vertical / standing version. Example: if the cabinet should be 750 mm high and 660 mm wide, then enter the width of 660 mm for parameter A and the height of 750 mm for parameter B.

Please note:
The customer is responsible for the size. The minimum and maximum values for length, width and height are production-related specifications and have no significance with regard to the sonic behavior of the box.

There is no such thing as an ideal size or volume for a speaker cabinet. The sound is always a combination of various factors such as the volume, the speaker used, the construction and the amplifier, the guitar and the room.

[content:3210142]
[content:3210137]
[content:3210136]

Originally created in the late 70s using more modern materials and techniques for a higher power handling, the G12-65 is widely regarded as one of the best speakers ever produced for use in a 4x12 cabinet.With its fast attack and tightly controlled low- end, the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.

• Nominal diameter: 12", 305mm
• Power rating: 65Wrms
• Nominal impedance :Available 8Ω or 15Ω
• Sensitivity: 97dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg
• Frequency range:80-5000Hz
• Resonance frequency, Fs: 85Hz
• DC resistance, Re: Available 6.9Ω or 11.8Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.7", 145mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.0", 128mm
• Unit weight: 7.7lb, 3.5kg
