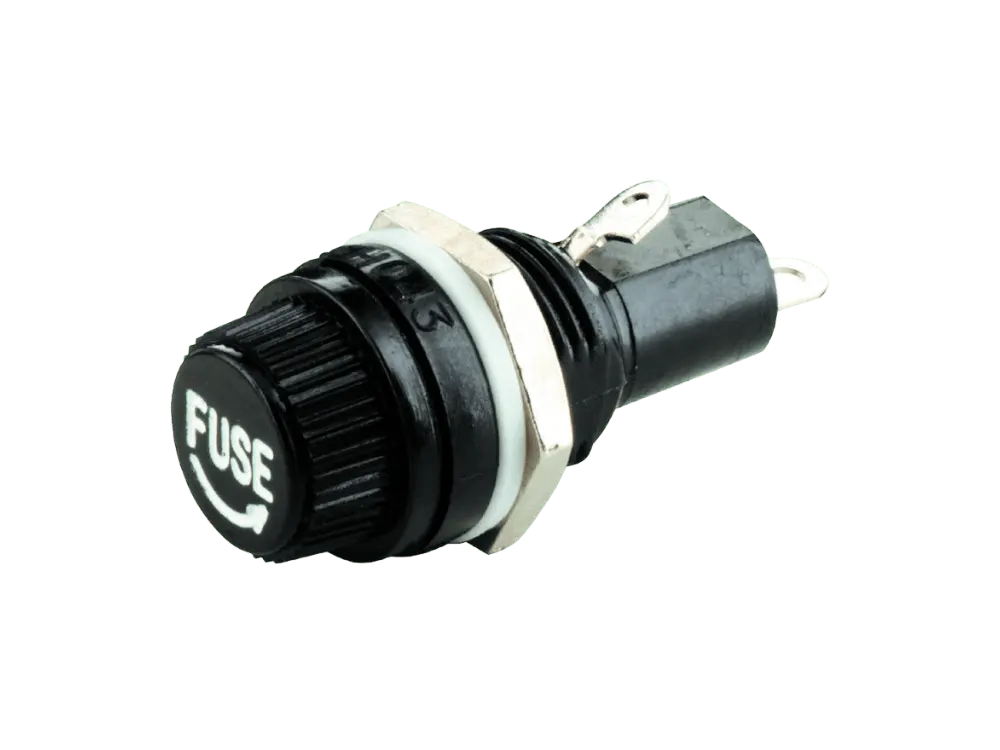

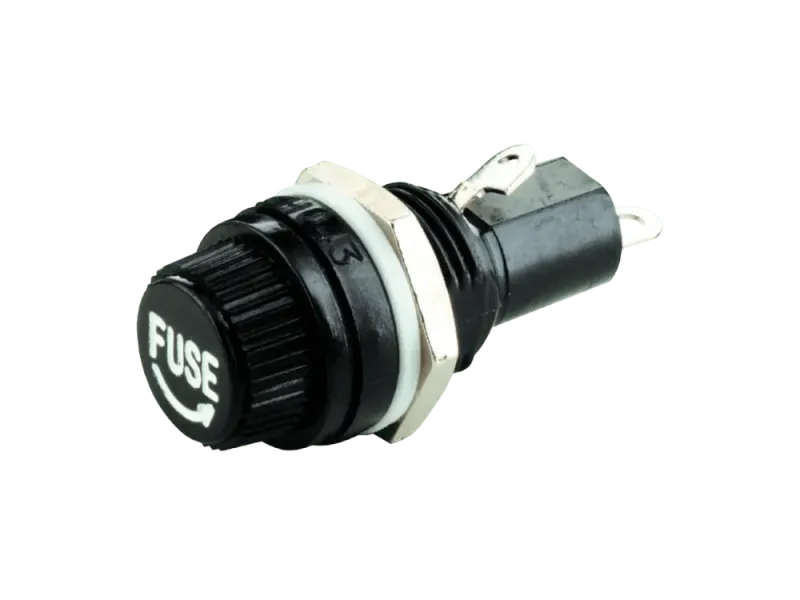

Fuseholder 5 x 20 mm, black

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

• Marshall 18 Watt Style Chassis - 1974
• for use in a combo
• Size: (WxHxD) 530 x 65 x 152 mm
• Material: 2 mm Aluminium (AllMg3)
• Mounting: with cage nuts (not included)

• Datasheet (PDF)
• Template Faceplate

TT-Chassis Fender Style 5E3
Dimensions: 369 x  67 x 106 mm (W x H x D)
Lettering: Standby - Fuse - ON - Tone - Volume - Bright - Normal

Attention:
The Hammond Powertransformer 290AEX / 291AEX does not fit onto this chassis. Please use
290BEX/291BEX instead. The platevoltage of the 290BEX is 10V higher and it has a bias tap too, but that is
no problem!

• Length: 117 mm
• Width: 38 mm
• Solder Lugs: 2 x 18
• Distance between Solder Lugs: 6 mm
• Laminated Paper

Aluminium Chassis 035 for the TT Surfmate Kit

• 2 mm Aluminium
• predrilled
• made for the TT Surfmate kit
• 3 x noval, 1 x octal
• Mounting: with cage nuts (not included)

• Datasheet

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

Fuseholder, Chassismount, for 6,3 x 32 mm fuses,

• US-Version
• Drill Ø: 15 mm
• 10A@250VAC
• 15A@125VAC

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 10 mm
• Pack of 4

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 3.0 mm
• Material: galvanised steel
• Length: 5 mm

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 10 mm

Set of componentes for building the TT Emma
Please visit the >>Project-Page for more Infos

INCLUDED:

• Mains Transformer universal for 120-230-240 V mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (1 x EH 12AY7, 1 x 12AX7,1 x ECC99)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.
