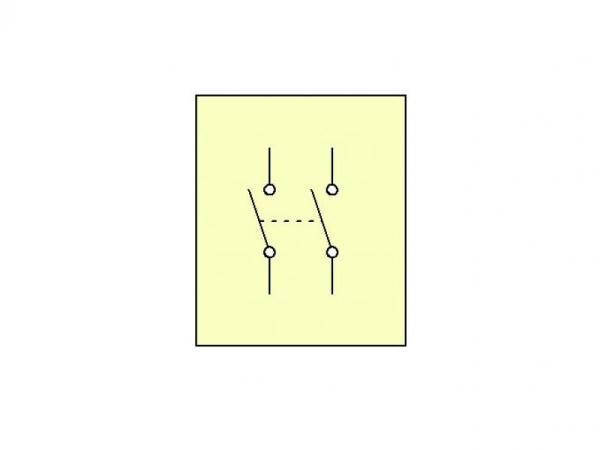

Toggle Switch APEM 641 H/2 DPST - ON-OFF

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

• Datasheet

• Extended JTM45 Chassis
• Size: (WxHxD) 432 x 65 x 170 mm
• PT cut-out: 70 x 69 mm
• Material: 2 mm Aluminium (AllMg3)
• Made in Germany

• Datasheet

• Extended JTM45 Chassis
• Size: (WxHxD) 432 x 63 x 170 mm
• PT cut-out: 70 x 69 mm
• Material: 1,5 mm Steel, galvanize
• Made in Germany

• Datasheet

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

• Faceplate Template

• Marshall 18 Watt Style Chassis - 1974
• for use in a combo
• Size: (WxHxD) 530 x 65 x 152 mm
• Material: 2 mm Aluminium (AllMg3)
• Mounting: with cage nuts (not included)

• Datasheet (PDF)
• Template Faceplate

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

Same as the Chassis 040 - PX18 but with with octal sockets for the powertubes, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 432 x 170 x 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)

• Datasheet

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

• Faceplate Template

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet

• Angled
• Extra flat housing
• 6.3 mm (1/4")
• 2-pin male

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Marshall Style
• Heavy Duty
• Plastic covered with steel inner core
• Black
• Screws and t-nuts included

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg - Dumble Style, silver
• Steel nickel plated
• Internal radius: 11 mm
• 16 x Screws with extra flat head, silver

• Operating voltage: 230 V~
• Power: 0,05 W
• Light/housing color: red
• Connection: soldering lugs
• Installation Ø: 10 mm
• Installation depth: 35 mm
• Overall dimensions (ØxL): 12x42 mm

• Type: Noval Socket Belton VT9-ST-C
• Version: Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• Solder lugs
• Power Rating: 2A@250VAC
• Contact Resistance: <10mΩ
• Insulation Resistance: 1000MΩ Minimum
• Dielectric Strength: 1000V RMS @ Sea Level
• Operating Temperature: -40°C ~ +85°C
• Electrical Life: 40,000 Cycles
• RoHS & Lead-free

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm
