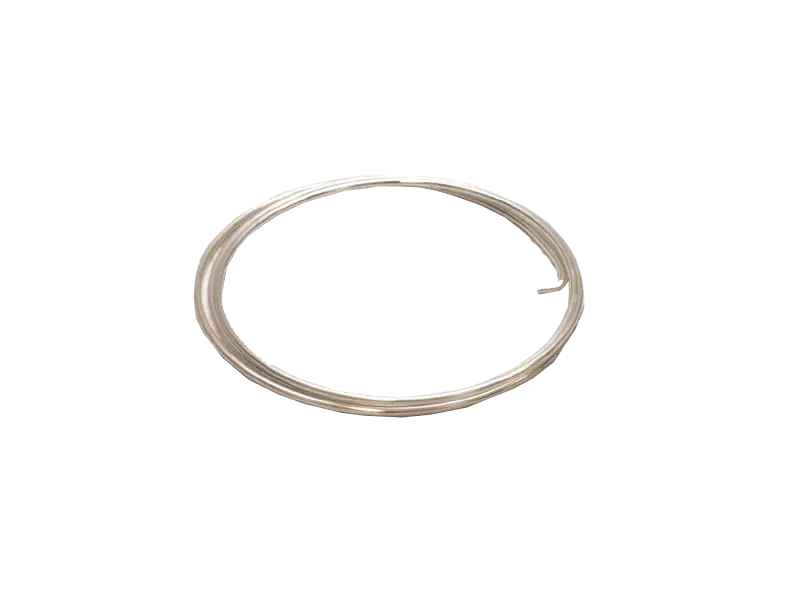

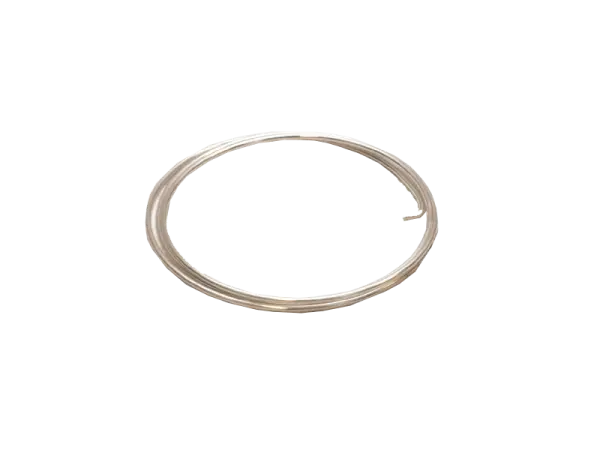

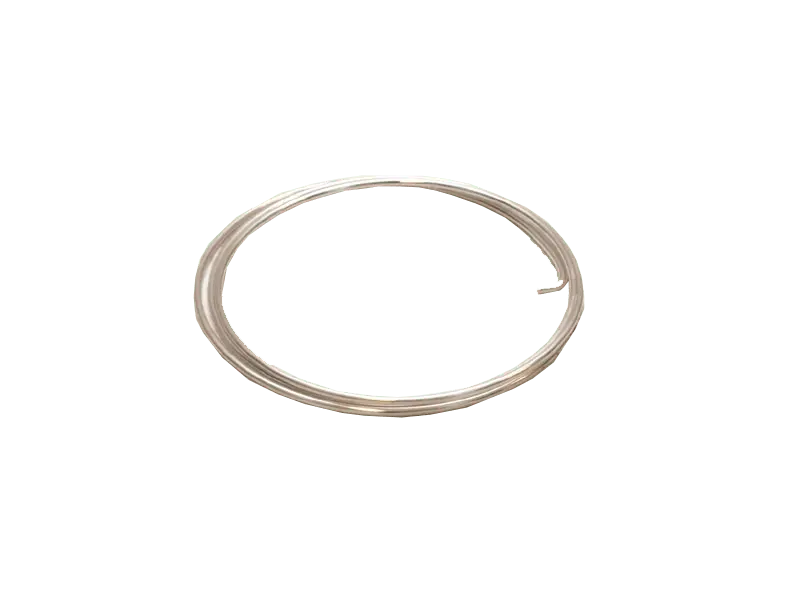

Silver-plated copper wire, 0,8 mm / 7 m

Socket Clamp / Tube Retainer fits for many octal base tubes.

• Output-Transformer Push-Pull
• for JCM800 / JMP 100 Watt
• Pri: 1700 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 100 Watt

Files:

• Datasheet

Soldering Lug M3

• brass, silver-plated
• Pack of 10

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

Width ca. 120 cm
Price per linear meter.
Also known as Mesa Emerald Bronco.

Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

PVC piping for baffles and front panels

• Clear with metal Tinsel
• Marshall style
• Size 3 x 8 mm
• 4 m piece

• Size 5 x 14 mm
• 4 m piece

TT-Chassis Aluminium - Typ 001 - Basic

• Size (Marshall Small Size):
  • Width: 430 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• WITHOUT CUTOUTS
• Made in Germany

• Datasheet Drawing Version 2019 (PDF)
• Tamplate for Faceplate
