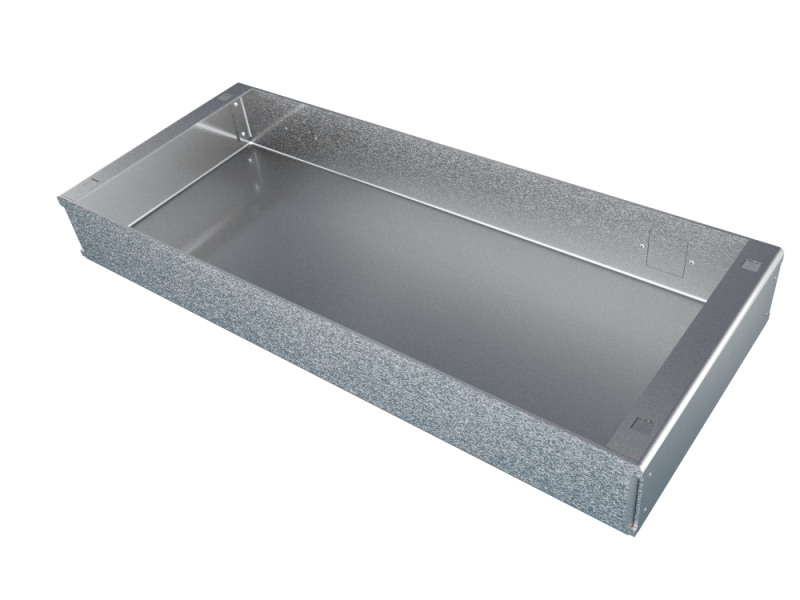

TT-Chassis 008 - Dumble Standard - 490 x 200 x 65

Specifications

Dumble Style Headshell

• Size: ca. 530 x 260 x 260 mm
• Chassis Cut-Out Height: 66 mm
• Made for Chassis with a size of: 490 x 200 x 65 mm
• Tolex: customer preference
• Hardware: customer preference
• Grillcloth: customer preference
• Weight: ca. 5 kg
• Wood: 18 mm Pine

[content:3210136]

Specifications

Dumble Style Combo    Based upon the original specs.

• Size: 530 x 530 x 260 mm
• Tolex: customer preference
• Grillcloth: customer preference
• Hardware: customer preference
• Back: Oval-Back
• Weight: ca. 13 kg
• Speaker: None
• Wood: 18 mm Poplar Plywood



[content:3210136]

The TTC 212 Dumble is an ideal cabinet for Dumble-style amplifiers and similar designs.
Its pronounced midrange and smooth, rounded low end make it a truly universal and versatile 2x12, well suited to a wide range of musical styles.
Built to the original TTC 212 Dumble specifications for authentic response, feel, and projection.

Specifications

• Size: 740 x 531 x 300 mm
• Tolex: customer preference
• Grillcloth: customer preference
• Piping: customer preference
• Hardware: customer preference
• Wood:
  • Body: 18 mm Poplar Plywood
  • Baffle: 12 mm Birch Plywood
• Weight: ca. 14 kg, shipping weight will be higher
• Speaker: None, we will install speakers for free if you order them together with the cabinet

[content:3210141]
[content:3210137]
[content:3210136]

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for snap-on mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

Ideal as extension cab for (Dumble) Combos, for Stereo Setups or smallgigs, studio or home use.
A strong low end and sweet mids are the main features of the TTC 112 Dumble which makes this cab suitable for many styles of music.
The TTC 112 Dumble is built to original specifications.

Specifications

• Size: 531 x 490 x 300 mm
• Tolex: customer preference
• Grillcloth: customer preference
• Piping: customer preference
• Hardware: customer preference
• Weight: ca. 10 kg
• Speaker: None
• Wood:
  • Body: 18 mm Poplar Plywood
  • Baffle: 12 mm Birch Plywood

[content:3210141]
[content:3210137]
[content:3210136]

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

Specifications

Dumble Style Combo, based upon the original specs.

• Size: 530 x 530 x 260 mm
• Tolex: Fender Style black
• Grillcloth: Fender Style black
• Hardware: Silver
• Back: Oval-Back
• Weight: ca. 13 kg
• Speaker: None
• Wood: 18 mm Poplar Plywood

[content:3210136]

Specifications

Dumble Style Combo    Based upon the original specs.

• Size: 530 x 530 x 260 mm
• Tolex: customer preference
• Grillcloth: customer preference
• Hardware: customer preference
• Back: Oval-Back
• Weight: ca. 13 kg
• Speaker: None
• Wood: 18 mm Poplar Plywood



[content:3210136]

• Size: L: 120 cm x W: 90 cm (only available in this size)
• Material: 100% Polypropylen
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

PVC piping for baffles and front panels

• Size 3.1 x 8.5 mm
• 4 m piece

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

Socket Clamp / Tube Retainer fits for many octal base tubes.

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

High Power Rotary Switch - Can be used as Voltage or Impedance selector

• 1 pole / 3 position
• Solder lugs
• Shaft Diameter 6 mm, D-Shaft
• Rating: 250 VAC 6(4) A
• Contact Resistance: 100MOhm Max
• Dielectric Intensity:
  • 1500VAC / 5S for terminal and terminal
  • 3000VAC / 5s for terminal and ground
• Withstand Voltage: 1500VAC / min
• Operating Temperature: -25~85°C
• Insulation Resistance: 500 VDC, 100MOhm Min
• Electrical Life: 10,000 cycles
• Housing material: PA66
• Ø: 22 mm
• h: 17,0 mm
• Ø Frontpanel drill: 10 mm

High Power Rotary Switch

• Can be used as Voltage or Impedance selector
• 1 pole / 3 position
• 3 A @ 250 VAC
• 6 A @ 125 VAC
• Solder lugs
• Size: 28 mm x 39,5 mm
• Frontpanel drill: 10,5 mm
• Shaft Diameter 6 mm, D-Shaft

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

Files:

• Datasheet

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
