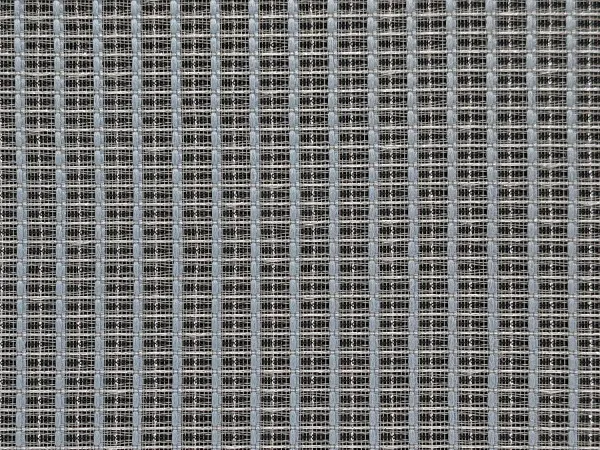

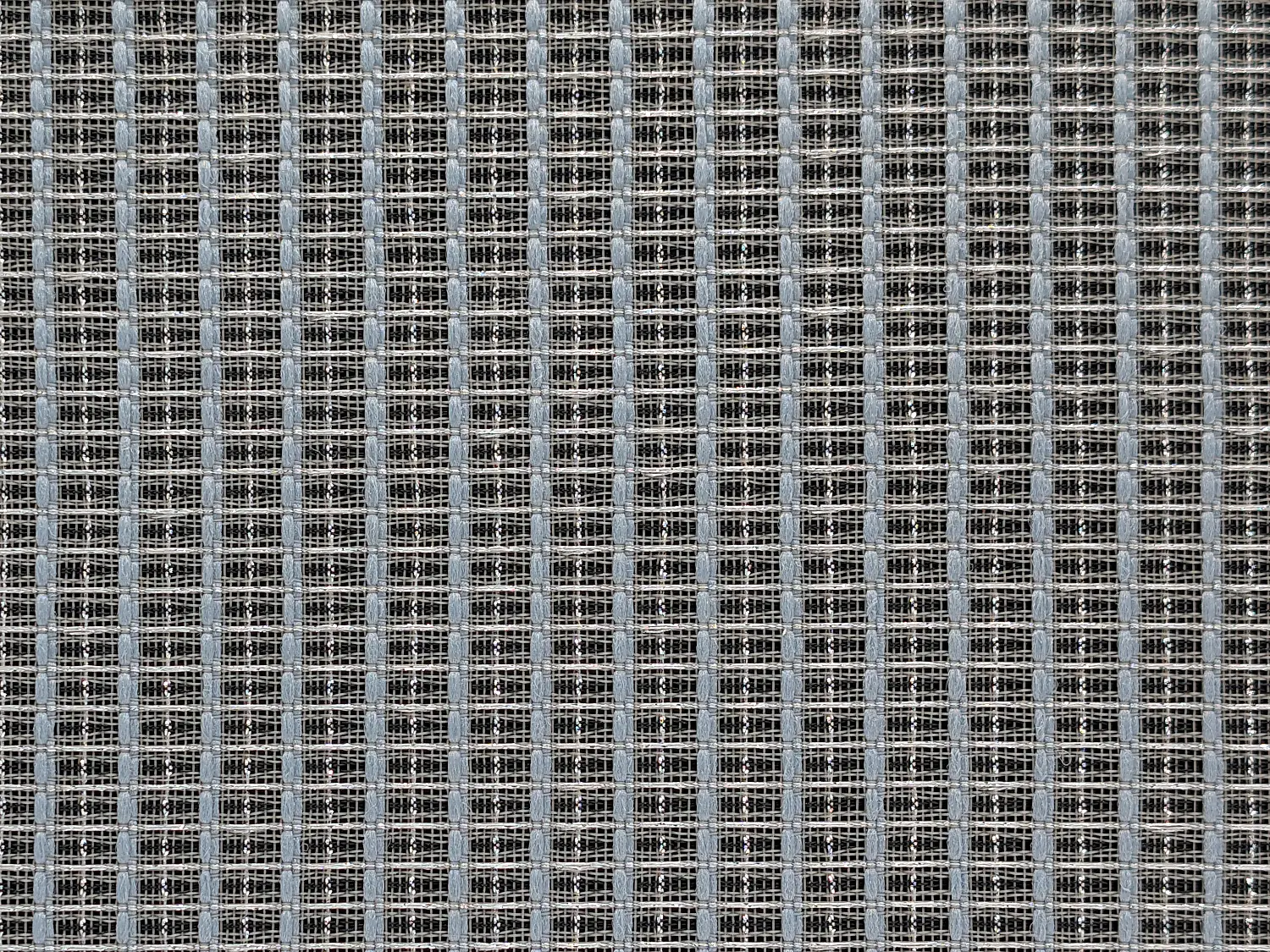

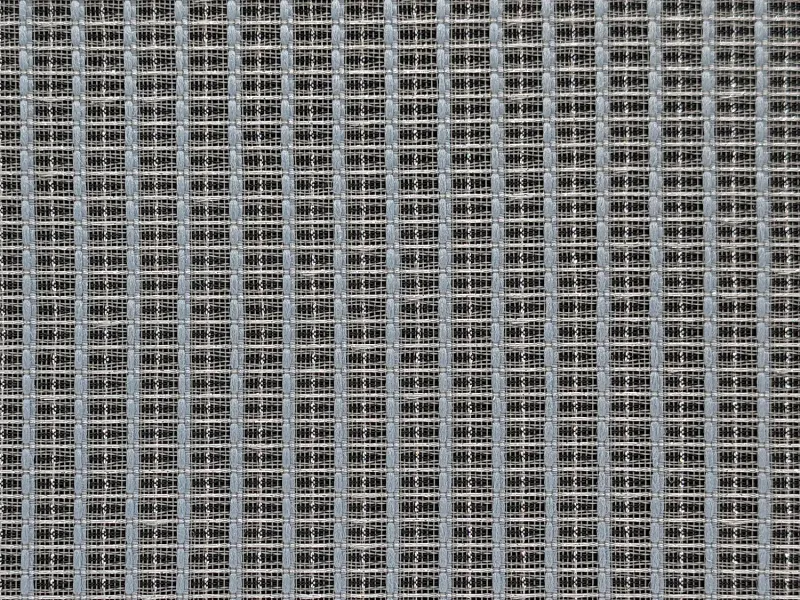

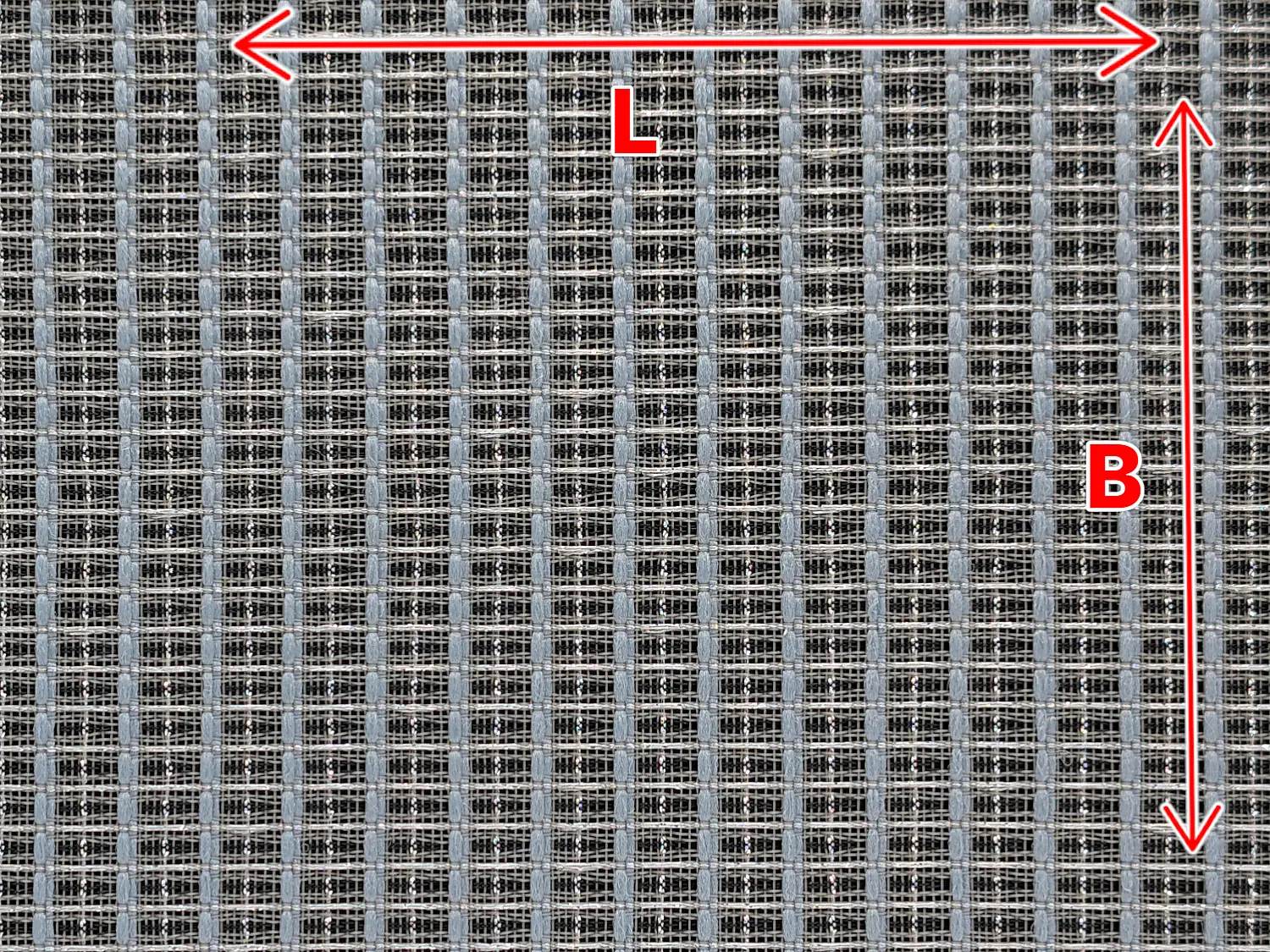

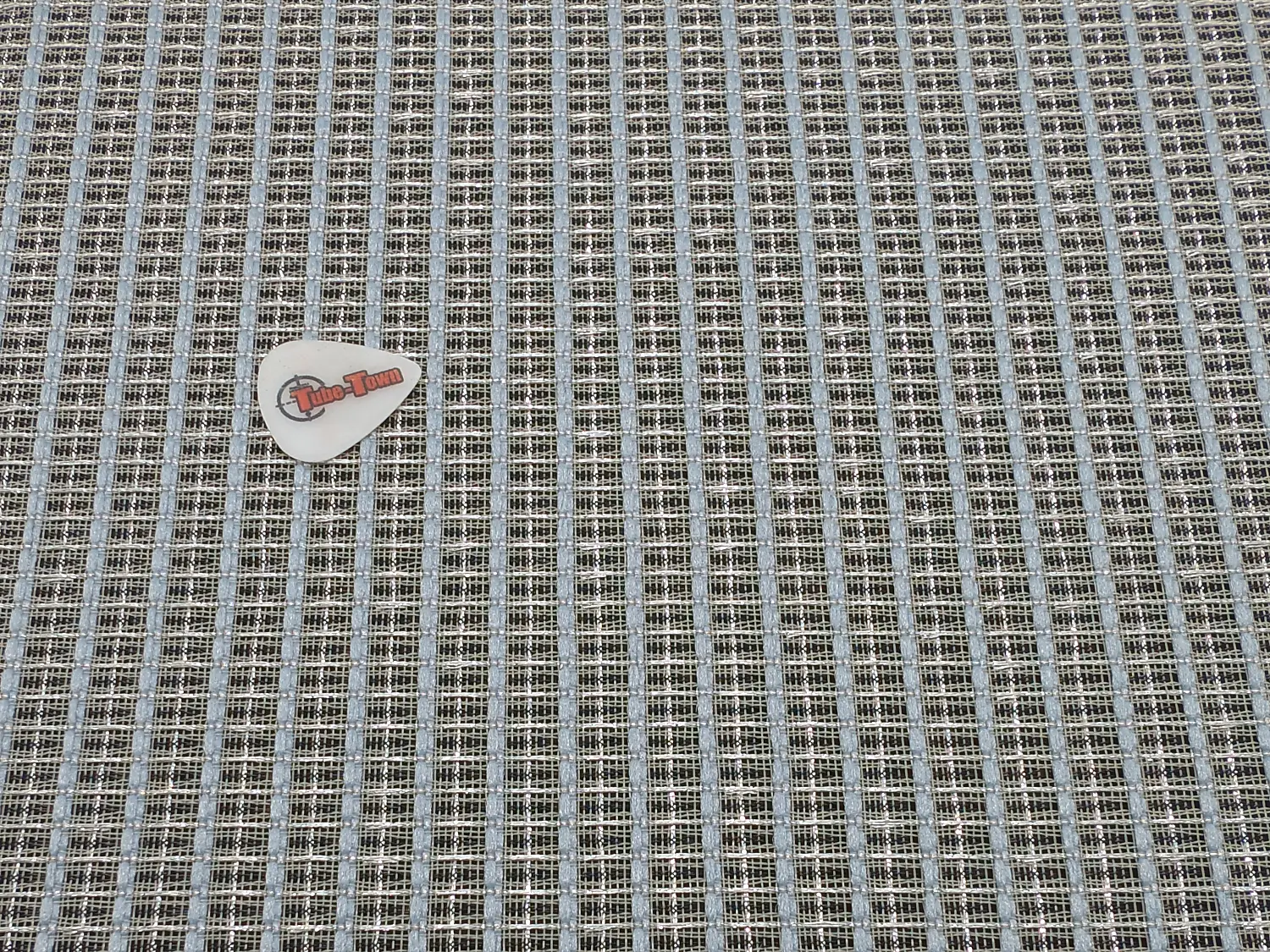

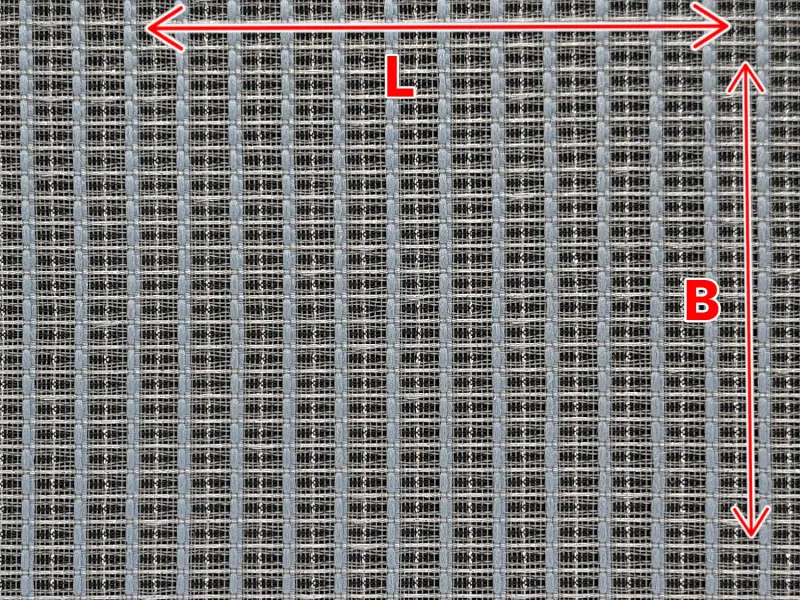

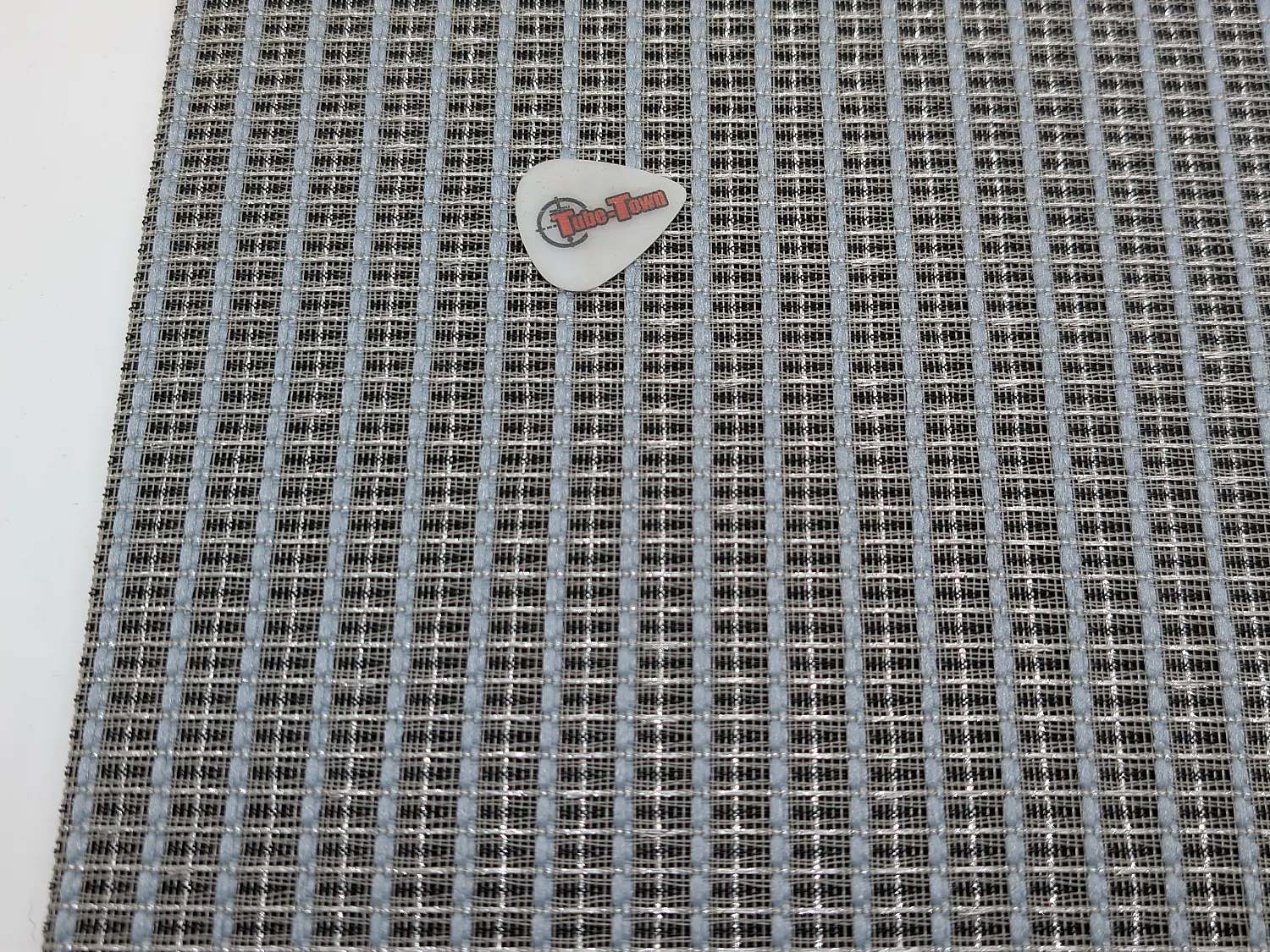

Grillcloth Fender-Style Blue-White-Silver - 74 x 100 cm

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

for Speaker mounting

• Type: Raised Head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 7985
• ISO: 7045
• Price: Pack with 25 pcs.

PVC piping thin, without lip

• Ø 2.5 mm
• 2 m piece

PVC piping for baffles and front panels

• Size 3.1 x 8.5 mm
• 4 m piece

Countersunk raised head with cross recess

• Material: Steel
• Strength class: 4.8
• Surface: nickel-plated
• DIN: 966
• ISO: 7047

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

TECHNICAL DATA:

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color black

ELECTRICAL DATA:

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

• Angled
• Extra flat housing
• 6.3 mm (1/4")
• 2-pin male

• for 4.0 mm laboratory plugs
• Connection Type: solder connection
• Mounting hole diameter: 8.3 mm
• Contact material: nickel-plated brass
• Rated voltage: 30 VAC / 60 VDC
• Rated current: max. 25 A
