Main page » Speaker » by manufacturers » Warehouse Guitar Speakers » WGS Retro 30 12" / 75 W / 16 Ohm

Preview: WGS Retro 30 12" / 75 W / 16 Ohm

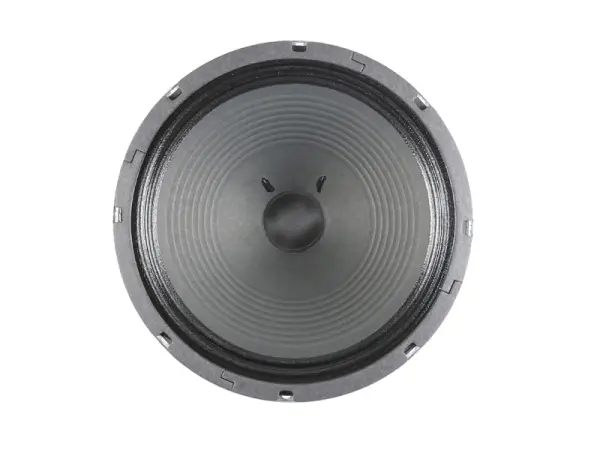

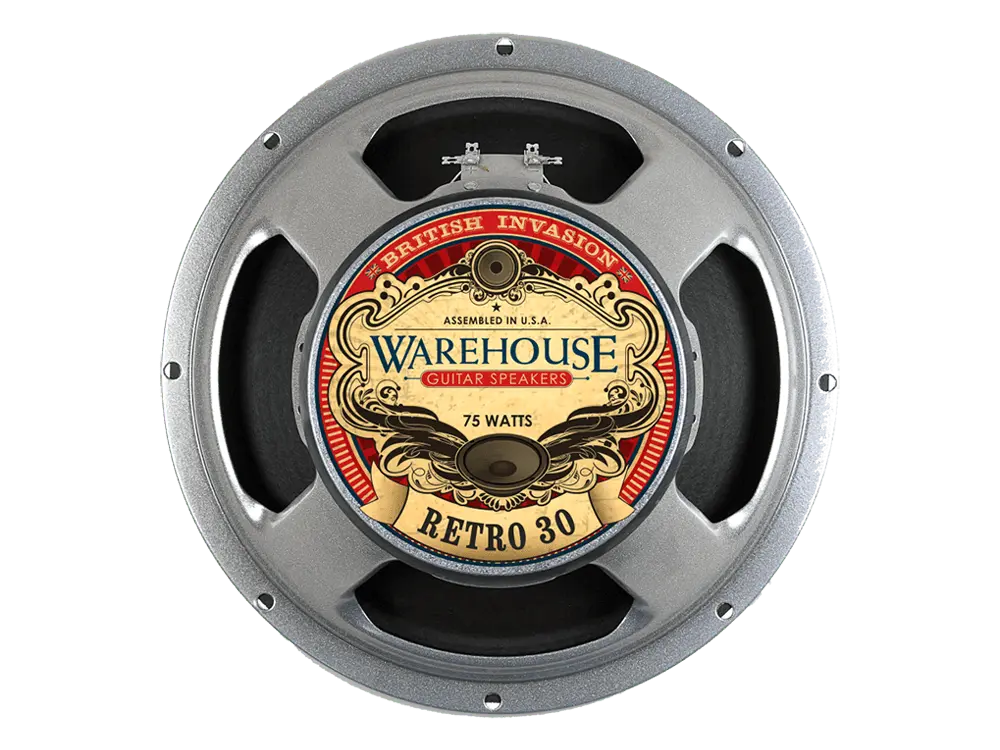

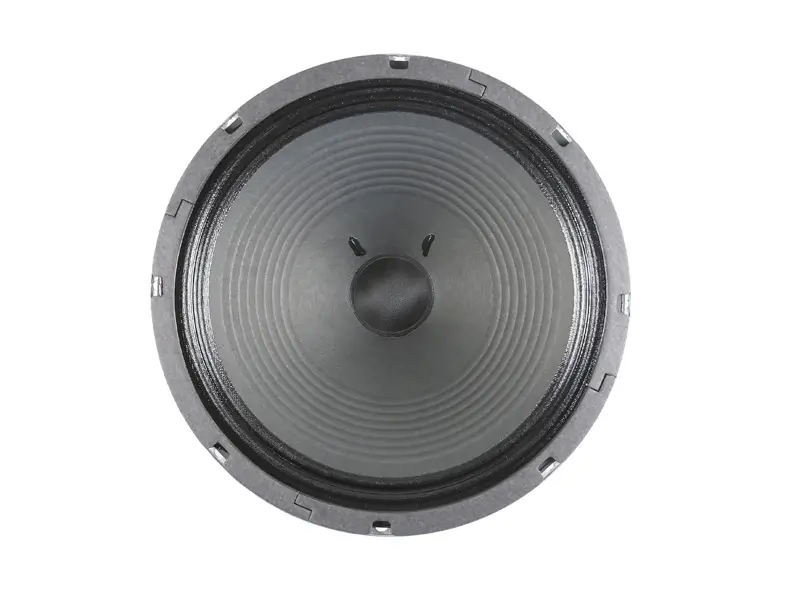

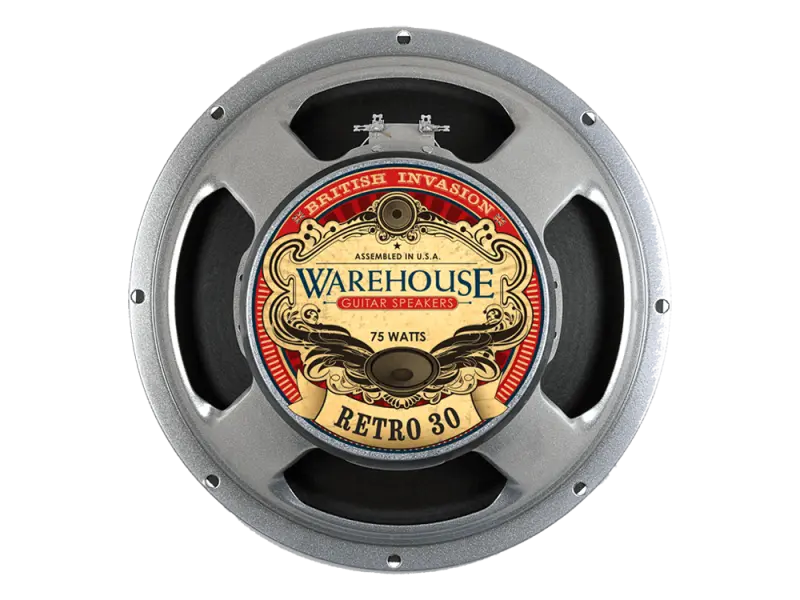

WGS Retro 30 12" / 75 W / 16 Ohm

Mobile Preview: WGS Retro 30 12" / 75 W / 16 Ohm

WGS Retro 30 12" / 75 W / 16 Ohm

Product No.:: wgs-3739
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: 5 piece
RoHs:: conform
Weight:: 5.4 kg per piece

129,00 €

incl. VAT excl. Shipping costs

piece:

Quantity

Bookmark

Ask Question

Description

The 12” Retro 30™ speaker is a brighter and more articulate version of the WGS Veteran 30™ speaker. The Retro 30™ also boasts deeper and tighter bottom end. This speaker is extremely versatile and comes alive on the dirty channel. For those who love to mix speakers, you should pair this with the Reaper™ or the ET65™.

Unit Weight: 10 pounds

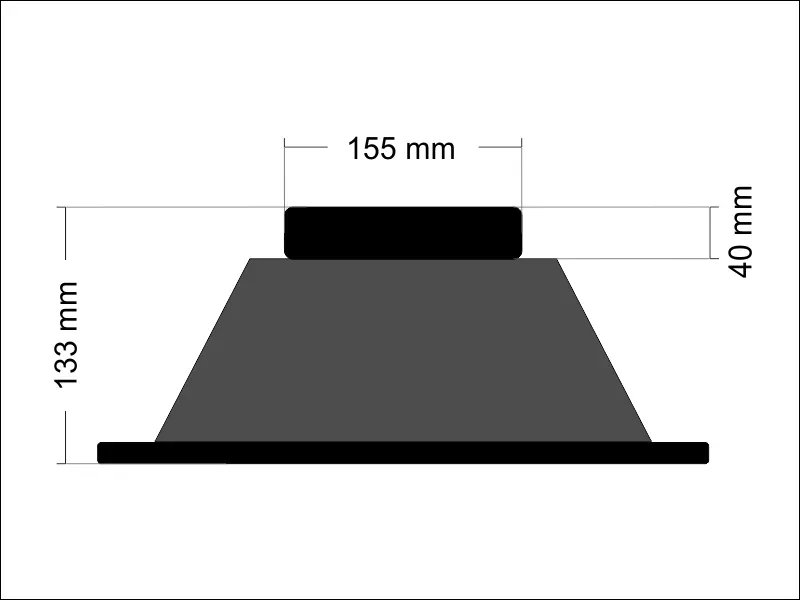

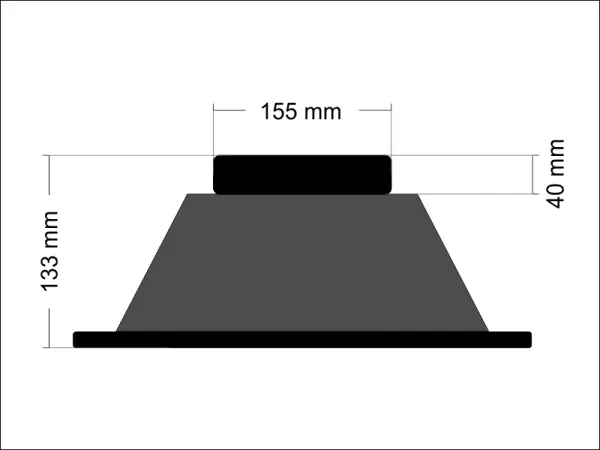

Mounting Information

Diameter: 12.2”
Overall depth: 5.3”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8

Thiele-Small Parameters (8 Ohm speaker)

Resonant Frequency (Fs): 103.76 Hz
DC Resistance (Re): 8.04 Ohm
Coil Inductance (Le): 0.33 mH
Mechanical Q (Qms): 9.73
Electromagnetic Q (Qes): 0.75
Total Q (Qts): 0.70
Compliance Equiv. Vol. (Vas): 16.28 cu ft
Mech. Compliance of Susp. (Cms): 0.09 mm/N
BL Product (BL): 13.85 T-M
Diaphragm Mass Inc. Airload (Mms): 27.48 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.63 db

Safety Information

Safety Instructions according to the Product Safety Act (ProdSG)

General Information

CE conformity is only guaranteed if the product is installed properly.
Warranty becomes void in case of improper use.
The operator is responsible for proper installation and safe operation.
Do not exceed the specified rated power.

Hazard Warnings

Risk of high sound levels: Prolonged exposure may cause permanent hearing damage.
Risk of overheating: Insufficient ventilation may lead to fire or product failure.
Risk of magnetic fields: May affect medical implants and electronic data carriers.

Manufacturer

Hersteller / Verantwortliche Person EU

Customer reviews (3)

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

MELODIE, 07/25/2013

MUCH BETTER THAN A VETERAN 30 THIS SPEAKER IS MORE VERSATILE AND HAVE MORE BASSES AT THE BOTTOM JUST CRISPY ENOUGH TO CUT TROUGH THE MIX AND PAIRED WITH SEVENTY EIGHTY OR ET 65 YOU GET A RICH BLEND POWERFUL AND BAD ASS WITH SEVENTY EIGHTY OR ET 65 YOU GET A RICH BLEND POWERFUL AND BAD ASS
go to post
