Decorative rosette, black, large - pack of 12

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

• Datasheet

PVC piping for baffles and front panels

• Clear with metal Tinsel
• Marshall style
• Size 4.8 x 10 mm
• 4 m piece

• Ø 2.5 mm
• 2 m piece

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

• Size: ca. 74 x 100 cm (only available in this size)
• Material: 94 % Polypropylen, 6 % Acrylic
• Price per pcs.
• Actual shades may vary.

• FAQ Grillcloth

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color dark gray

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

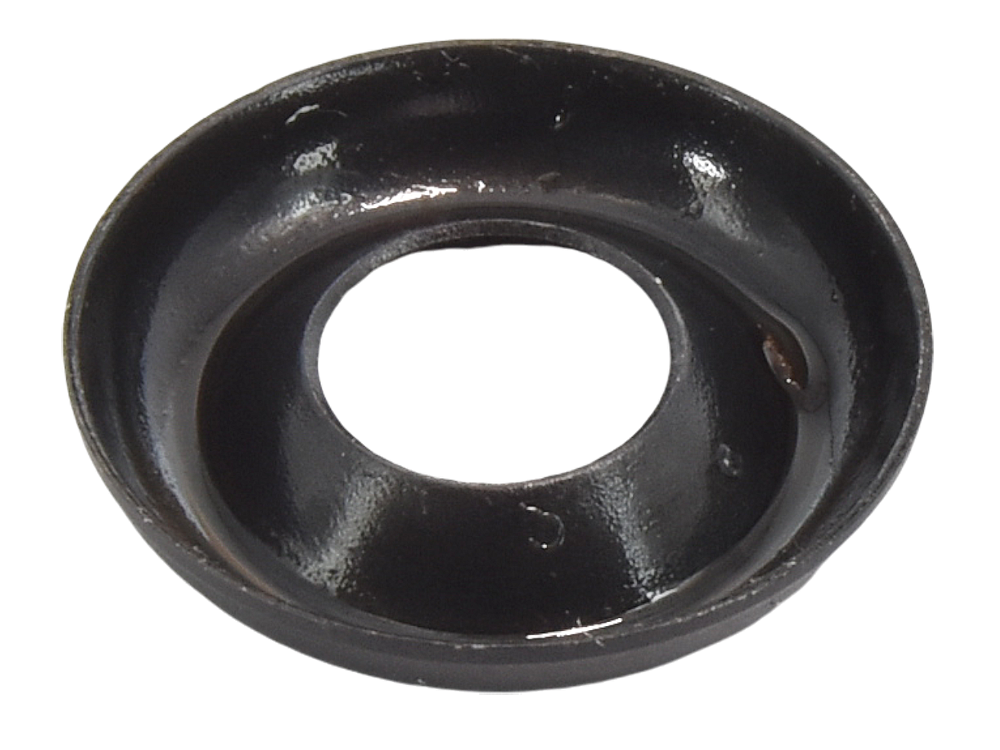

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws
