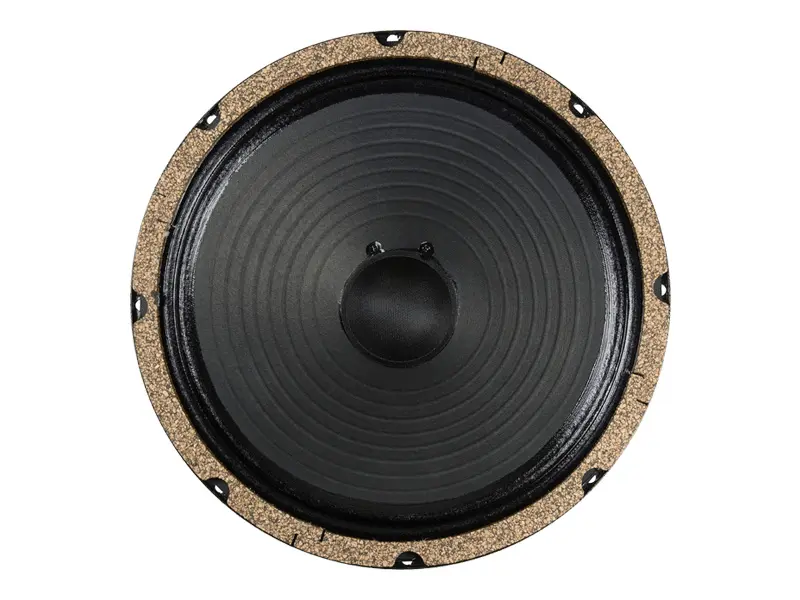

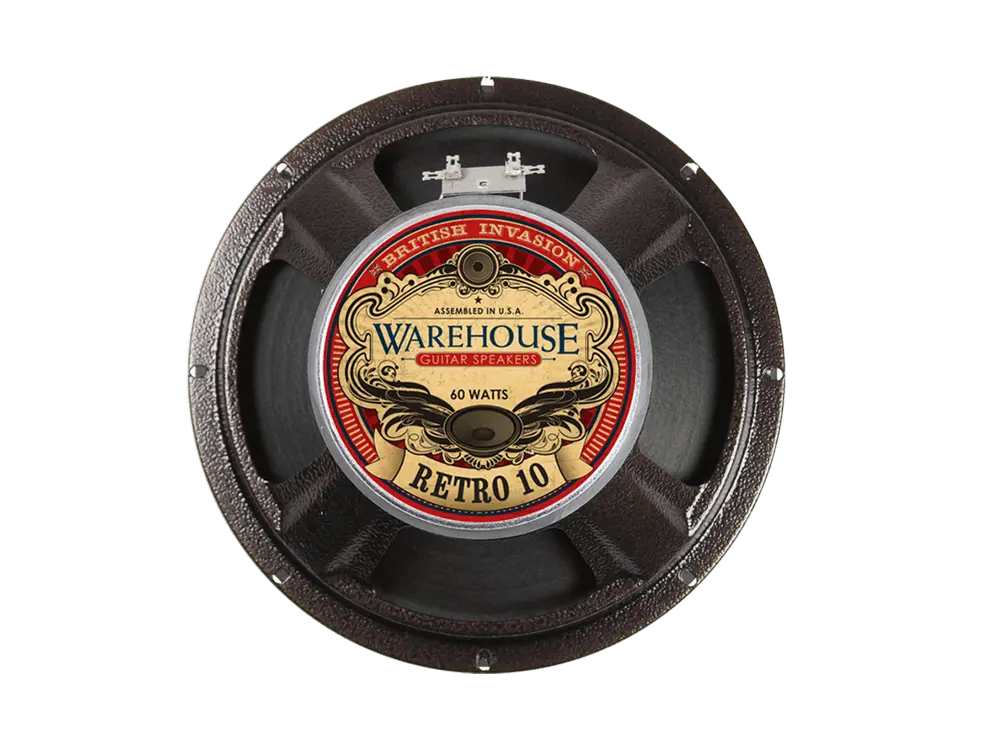

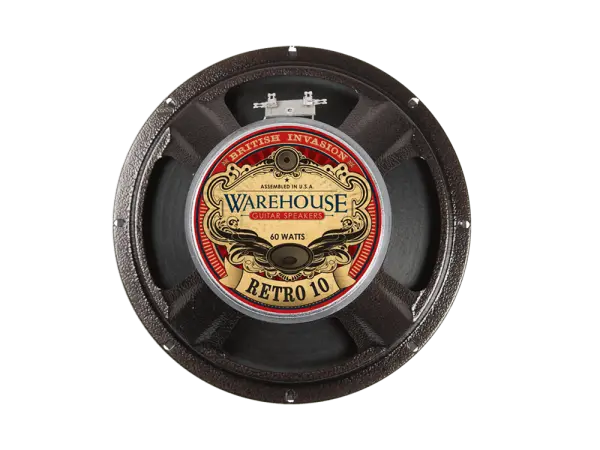

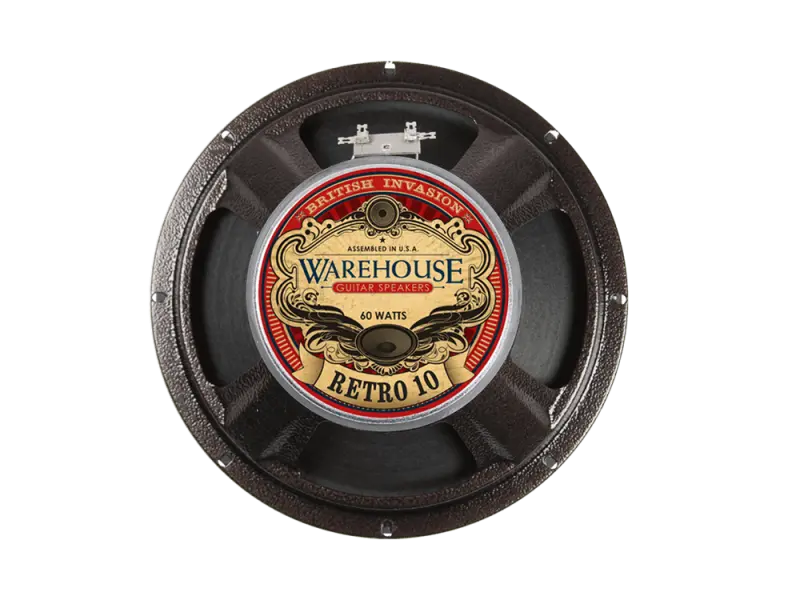

WGS Retro 10 10" / 60 W / 8 Ohm

Mobile Preview: WGS Retro 10 10" / 60 W / 8 Ohm

Description

With the Retro 10, we set out to build something with all the qualities we enjoy about our Retro 30 in a 10” speaker. It’s got a tight bottom, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.

Unit weight: 7.5 pounds

Thiele-Small Parameters

Resonant Frequency (Fs): 115.58 Hz
DC Resistance (Re): 6.27 Ohm
Coil Inductance (Le): 0.17 mH
Mechanical Q (Qms): 6.72
Electromagnetic Q (Qes): 0.66
Total Q (Qts): 0.6
Compliance Equiv. Vol. (Vas): 16.26 cu ft
Mech. Compliance of Susp. (Cms): 0.11 mm/N
BL Product (BL): 10.99 T-M
Diaphragm Mass Inc. Airload (Mms): 17.39 grams
Surface Area of Cone (Sd): 324.29 cm squared
Sound Pressure Level (spl): 100.62 db

Safety Information

Safety Instructions according to the Product Safety Act (ProdSG)

General Information

CE conformity is only guaranteed if the product is installed properly.
Warranty becomes void in case of improper use.
The operator is responsible for proper installation and safe operation.
Do not exceed the specified rated power.

Hazard Warnings

Risk of high sound levels: Prolonged exposure may cause permanent hearing damage.
Risk of overheating: Insufficient ventilation may lead to fire or product failure.
Risk of magnetic fields: May affect medical implants and electronic data carriers.

Manufacturer

Hersteller / Verantwortliche Person EU
