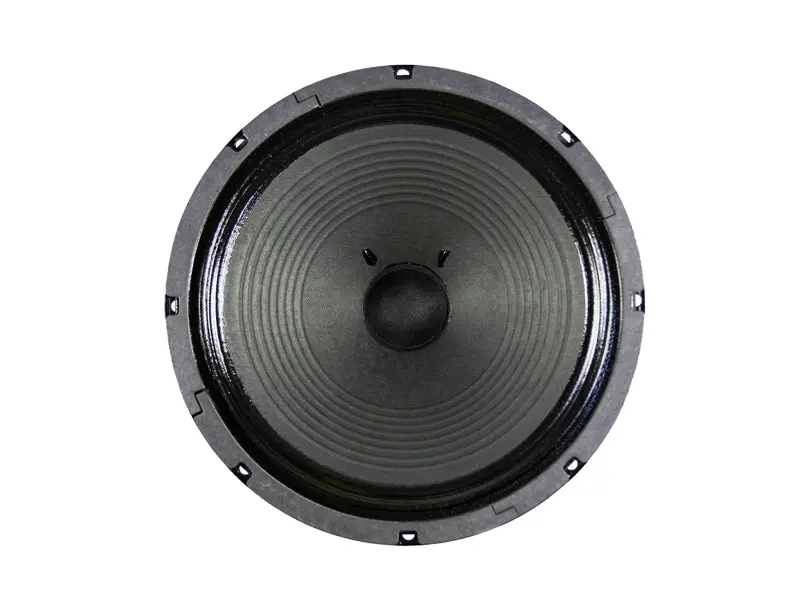

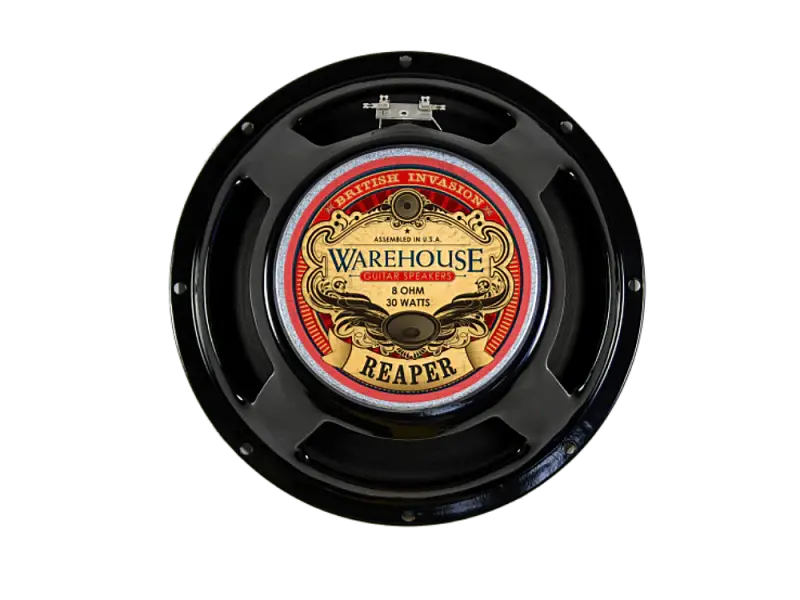

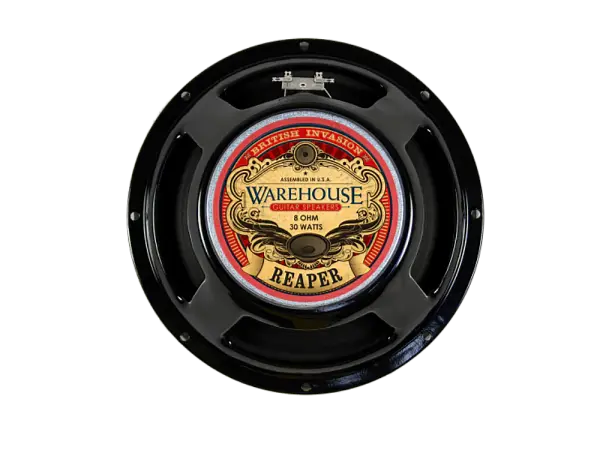

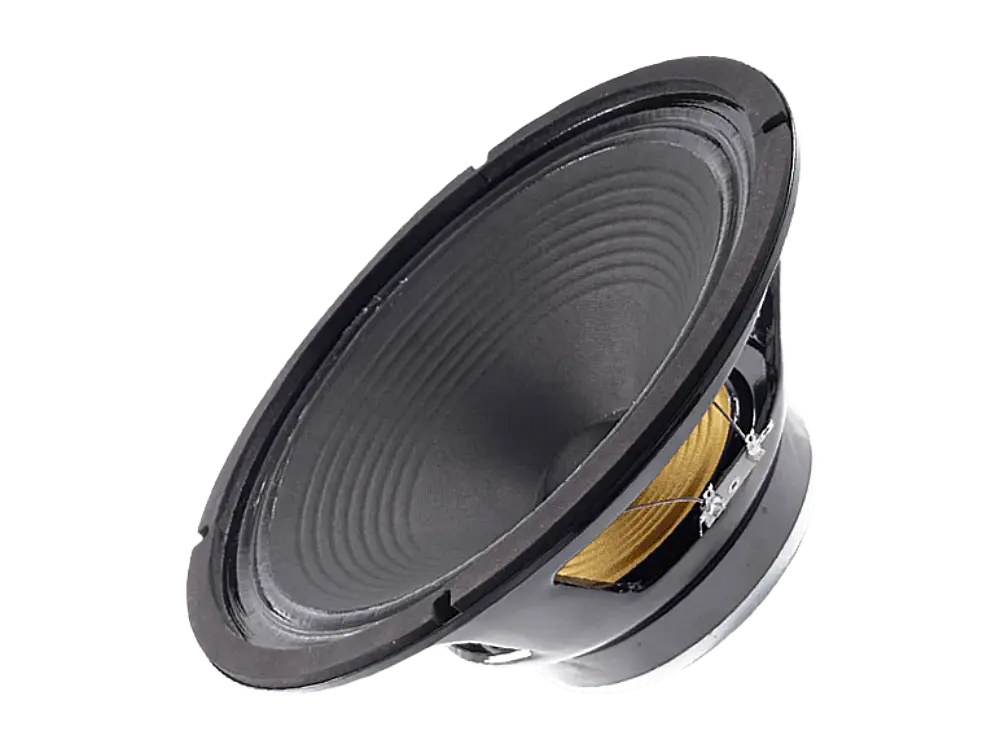

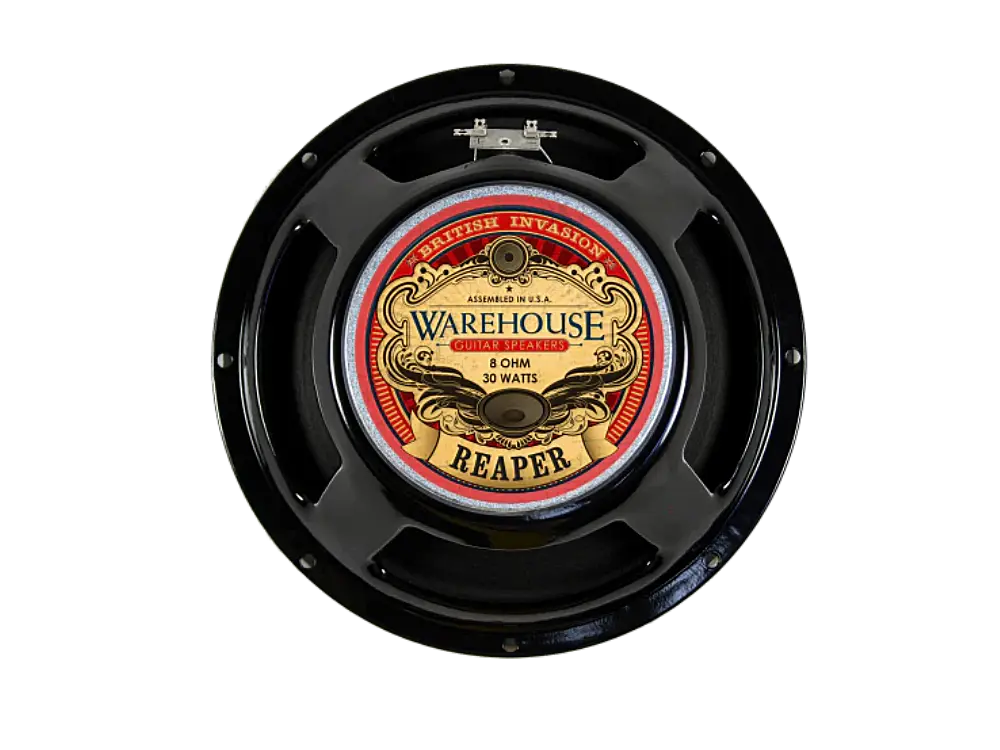

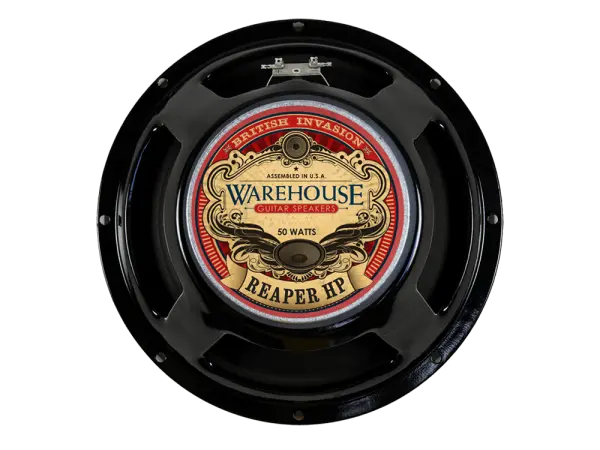

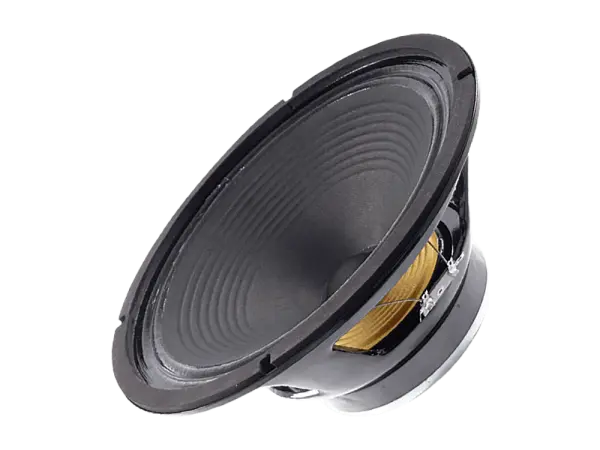

The 12” Reaper™ guitar speaker is a DROP IN REPLACEMENT for Celestion™ G12H30 Anniversary Edition.
This speaker sounds like a Green Beret on steroids.
Cone breakup does not occur as early as the Green Beret.
This speaker sounds great mixed with a Green Beret, Veteran 30, or by itself.
Unit Weight: 10 pounds

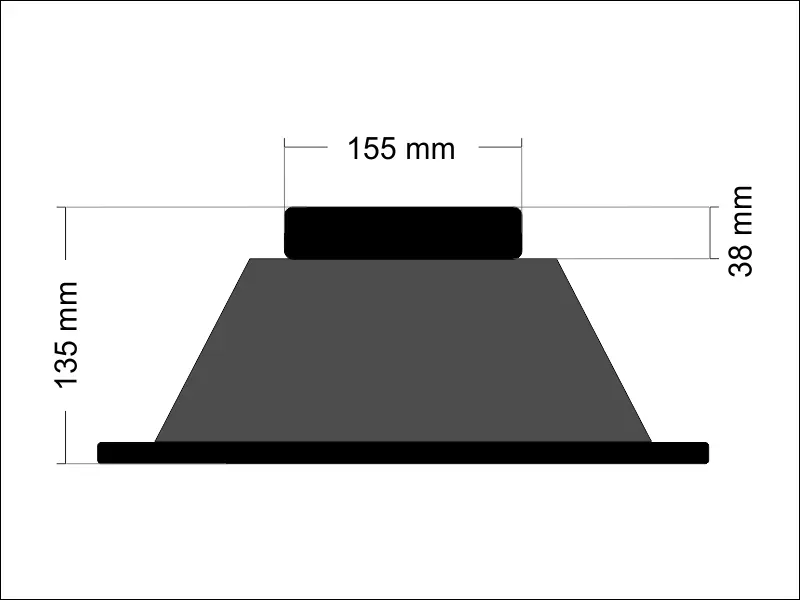

Mounting Information
- Diameter: 12.2”
- Overall depth: 5.3”
- Cut-out diameter: 11.1”
- Mounting slot dimensions: 0.31”
- Number of mounting slots: 8
Thiele-Small Parameters
- Resonant Frequency (Fs): 126.60 Hz
- DC Resistance (Re): 8.20 Ohm
- Coil Inductance (Le): 0.33 mH
- Mechanical Q (Qms): 8.56
- Electromagnetic Q (Qes): 1.01
- Total Q (Qts): 0.90
- Compliance Equiv. Vol. (Vas): 10.52 cu ft
- Mech. Compliance of Susp. (Cms): 0.06 mm/N
- BL Product (BL): 13.58 T-M
- Diaphragm Mass Inc. Airload (Mms): 28.57 grams
- Surface Area of Cone (Sd): 366.10 cm squared
- Sound Pressure Level (spl): 99.04 db
