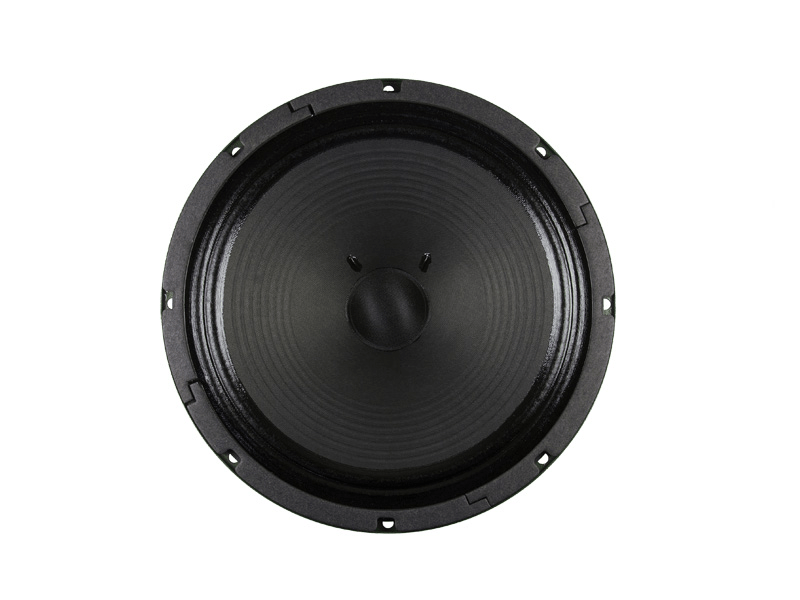

WGS Green Beret 12" / 25 W / 8 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Specification label. Self adhesive. 104 x 71 mm. Aluminium with satin black print. English text.

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 250 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Type: Rocker Switch
• Version: DPST  ON-OFF,Lighted red, labeled I/O
• Recess: 24 x 19,5 mm
• Chassis cut-out: 21,9 x 19,4 mm
• Mounting: Snap-in
• Rating: 250 V / 6 A
• Termination Style: solder lug / quick-connect terminals

• Potentiometer used in many Peavey amp and mixer models like Classic 30.
• Shaft diameter Ø: 4.6 mm
• Screw and washer not included


• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Tube-Town Black Weave has the same structure as the Marshall Cane grillcloth but in black.

• FAQ Grillcloth

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

Fast Avalanche Sinterglass Diode

Files:

• Datasheet

• Potentiometer used in many Peavey amp and mixer models like Classic 30.
• Shaft diameter Ø: 4.6 mm
• Screw and washer not included


• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO
