Main page » Speaker » by manufacturers » Warehouse Guitar Speakers » WGS G15C 15" / 75 W / 8 Ohm

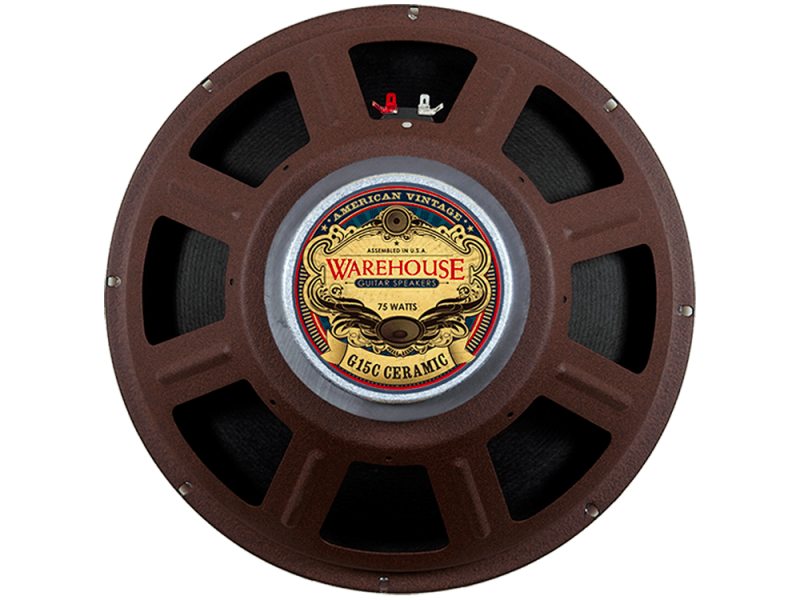

WGS G15C 15" / 75 W / 8 Ohm

Mobile Preview: WGS G15C 15" / 75 W / 8 Ohm

Description

We have created a truly awesome 15" speaker with the G15! Now you can play a 15" with quick, articulate response, aggressive mid-range, & fat low end.

Thiele-Small Parameters

Resonant Frequency (Fs): 100.45 Hz
DC Resistance (Re): 6.4 Ohm
Coil Inductance (Le): 8 mH
Mechanical Q (Qms): 12.3144
Electromagnetic Q (Qes): 1.188
Total Q (Qts): 1.0835
Compliance Equiv. Vol. (Vas): 2.165 cu ft
Mech. Compliance of Susp. (Cms): 50.169 mm/N
BL Product (BL): 11.64 T-M
Diaphragm Mass Inc. Airload (Mms): 50.0389 grams
Surface Area of Cone (Sd): 923.4744 cm squared
Sound Pressure Level (spl): 99.03 db
