Preview: WGS G12 C/S 12" / 75 W / 16 Ohm

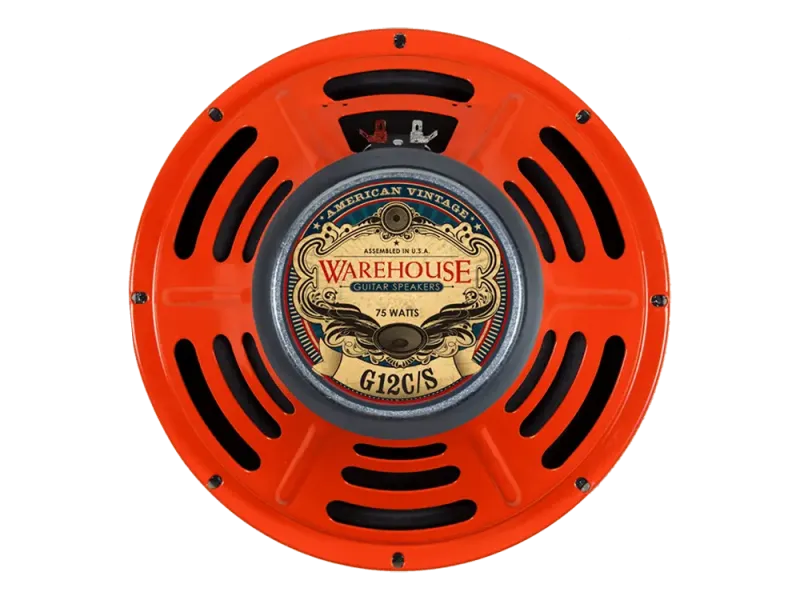

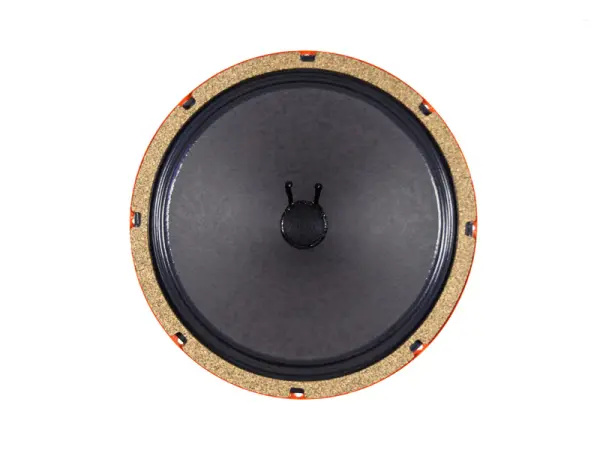

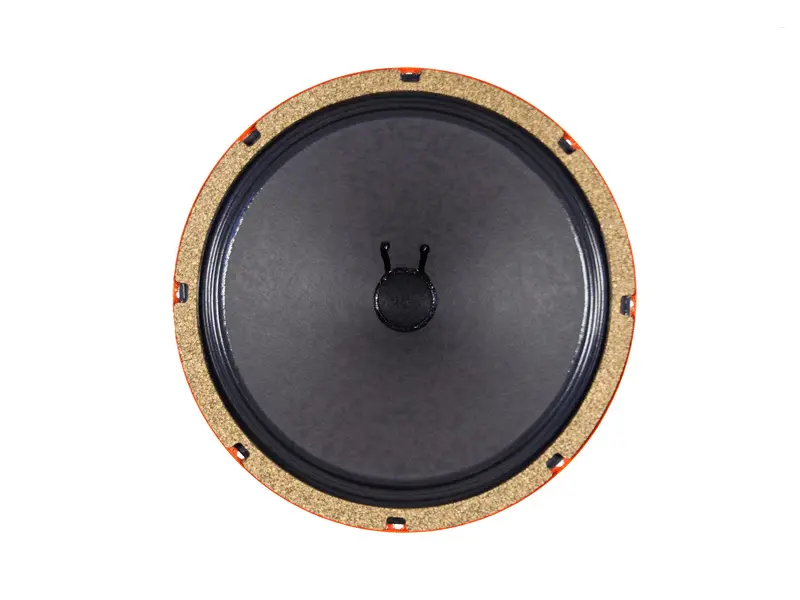

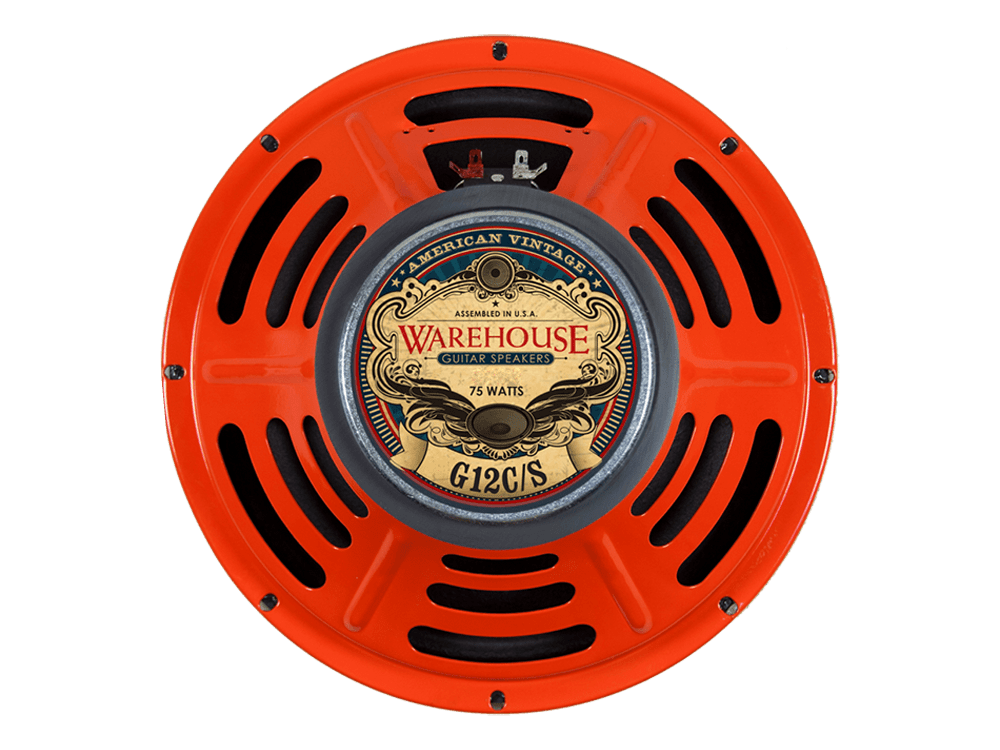

WGS G12 C/S 12" / 75 W / 16 Ohm

Mobile Preview: WGS G12 C/S 12" / 75 W / 16 Ohm

Description

If you are looking for a speaker with a classic American vibe, but need a smoother more soulful top end, look no further than the WGS G12C/S. This is based on our popular G12C, but with a smooth cone, felt dust cap and just the right amount of edge treatment. This speaker works great in amps where you are going for that big American clean but just need it a little softer up top. Destined to be another WGS classic!

Thiele-Small Parameters

Resonant Frequency (Fs): 95.68 Hz
DC Resistance (Re): 7.47 Ohm
Coil Inductance (Le): 0.28 mH
Mechanical Q (Qms): 14.56
Electromagnetic Q (Qes): 0.73
Total Q (Qts): 0.69
Compliance Equiv. Vol. (Vas): 19.70 cu ft
Mech. Compliance of Susp. (Cms): 0.10 mm/N
BL Product (BL): 12.83 T-M
Diaphragm Mass Inc. Airload (Mms): 26.70 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.54 db

Safety Information

Safety Instructions according to the Product Safety Act (ProdSG)

General Information

CE conformity is only guaranteed if the product is installed properly.
Warranty becomes void in case of improper use.
The operator is responsible for proper installation and safe operation.
Do not exceed the specified rated power.

Hazard Warnings

Risk of high sound levels: Prolonged exposure may cause permanent hearing damage.
Risk of overheating: Insufficient ventilation may lead to fire or product failure.
Risk of magnetic fields: May affect medical implants and electronic data carriers.

Manufacturer

Hersteller / Verantwortliche Person EU
