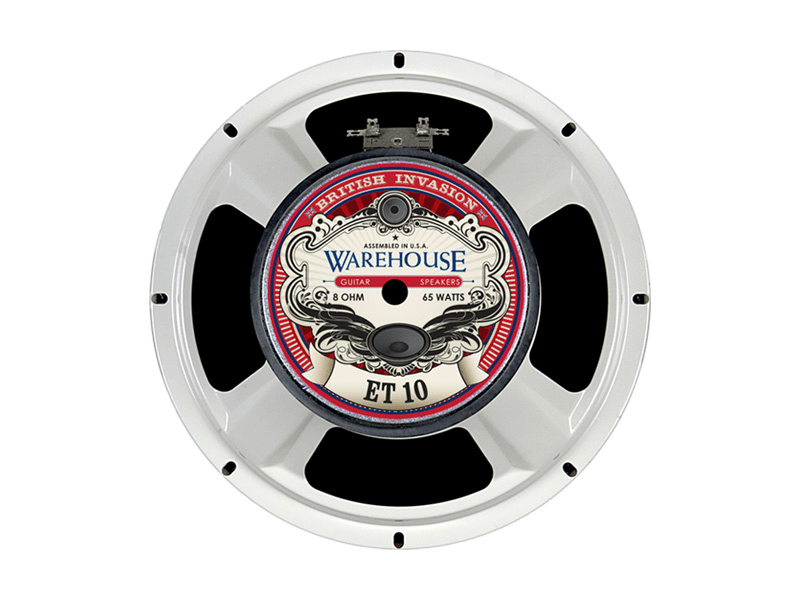

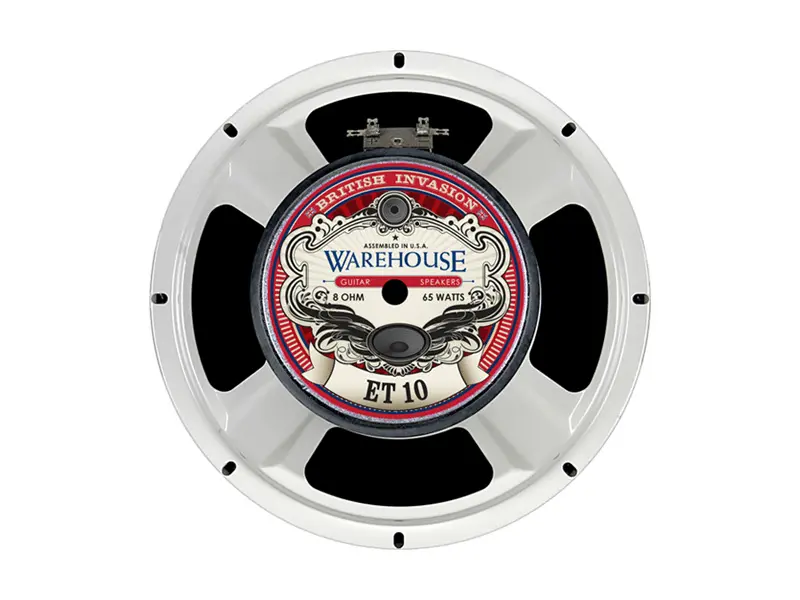

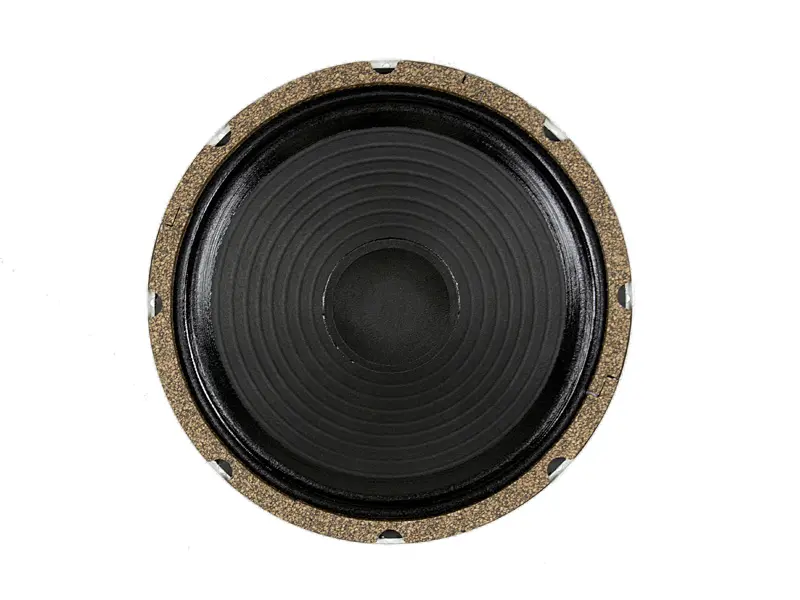

WGS ET10 10" / 65 W / 8 Ohm

Mobile Preview: WGS ET10 10" / 65 W / 8 Ohm

Description

The ET10 is the 10” version of one of our most popular speakers: the ET65. The ET10 boasts a tone reminiscent of its 12” counterpart, but with a bit more of a pronounced midrange. The low end from this 10 is surprisingly heady, but remains tight in all situations. Top it off with a smooth but articulate top end, and you have one of the most highly anticipated ten inch speakers to date.

Unit Weight: 6 lbs

Thiele-Small Parameters

Resonant Frequency (Fs): 113.32 Hz
DC Resistance (Re): 6.626 Ohm
Coil Inductance (Le): 0.16 mH
Mechanical Q (Qms): 6.72
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.65
Compliance Equiv. Vol. (Vas): 17.06 cu ft
Mech. Compliance of Susp. (Cms): 0.11 mm/N
BL Product (BL): 10.63 T-M
Diaphragm Mass Inc. Airload (Mms): 17.25 grams
Surface Area of Cone (Sd): 324.29 cm squared
Sound Pressure Level (spl): 100.17 db

Safety Information

Safety Instructions according to the Product Safety Act (ProdSG)

General Information

CE conformity is only guaranteed if the product is installed properly.
Warranty becomes void in case of improper use.
The operator is responsible for proper installation and safe operation.
Do not exceed the specified rated power.

Hazard Warnings

Risk of high sound levels: Prolonged exposure may cause permanent hearing damage.
Risk of overheating: Insufficient ventilation may lead to fire or product failure.
Risk of magnetic fields: May affect medical implants and electronic data carriers.

Manufacturer

Hersteller / Verantwortliche Person EU
