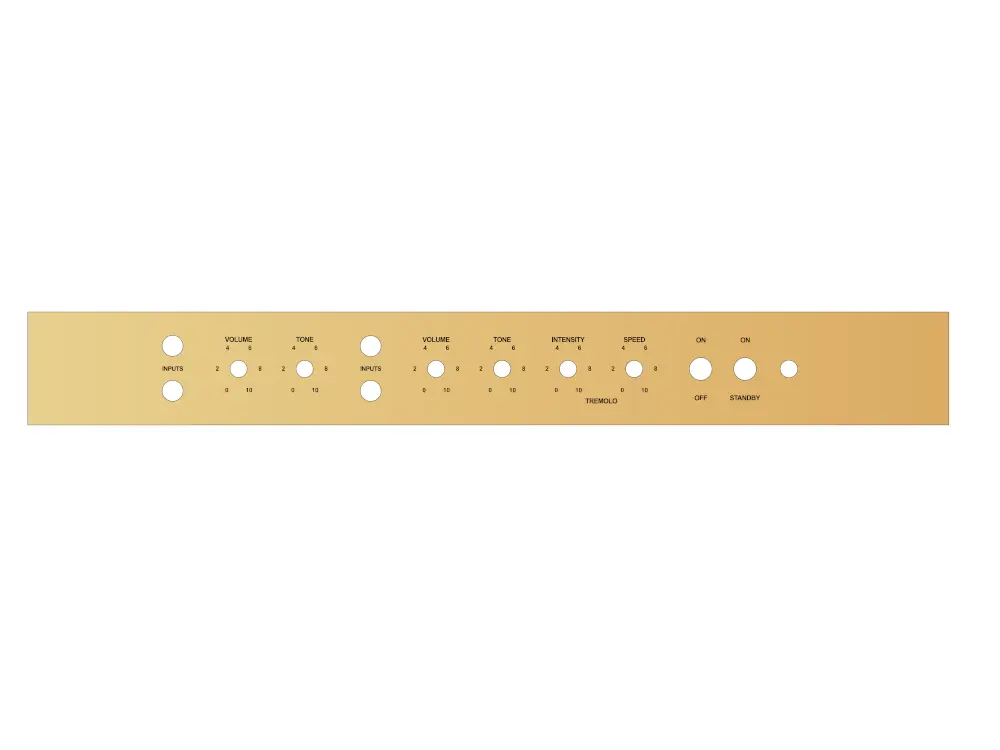

Faceplate for TT Amp-Kit 18Watt Combo - Gold GLOSSY

• Marshall 18 Watt Style Chassis - 1974
• for use in a combo
• Size: (WxHxD) 530 x 65 x 152 mm
• Material: 2 mm Aluminium (AllMg3)
• Mounting: with cage nuts (not included)

Files:

• Datasheet (PDF)
• Template Faceplate

• Texture and color like the original Marshall Bluesbreaker 1974x Weaves, same manufacturer
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Marshall® Style 18W Amp Kit, Point-to-Point

Set of componentes for building the TT 18W Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout and if you want to build a 18 Watt combo than check the >>Project page of the Combo too

INCLUDED:

• Transformers (Power and Output, tt-ma18pw-INT and Hammond 1750PA)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis - please order the chassis which you want. The chassis tt-ch024 should be used for a head version of the amp and the chassis tt-ch026 for a combo build.
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Marshall Style Knob, Gold

• Material: Phenolic
• Shaft Size: 6 - 6,4 mm
• Size: 19,5 x 15,3 mm
• Mounting: Set-Screw, hexagon

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

• Marshall 18 Watt Style Chassis - 1974
• for use in a combo
• Size: (WxHxD) 530 x 65 x 152 mm
• Material: 2 mm Aluminium (AllMg3)
• Mounting: with cage nuts (not included)

Files:

• Datasheet (PDF)
• Template Faceplate

Clamping cage nut for round holes, incl. screw

• Thread: UNC 10-32
• Screw: Hammond 1421F25
• Galvanized
• Set of 4

Socket Clamp / Tube Retainer fits for many octal base tubes.

Panel Mount Potentiometer - 3/8"

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

Octal Socket Belton VT8

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.
