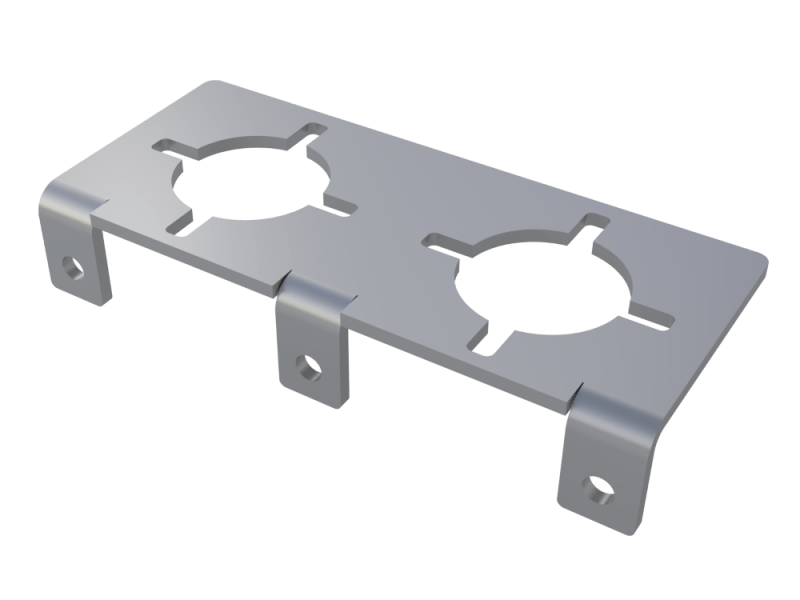

Mounting Bracket Noval, double

• Audio: 10 W
• Max. Bias: 70 mA DC

• Datasheet

• Inductance (+/- 15%): 8 H
• Resistance (+/- 15%): 259 Ohm
• max Current DC: 100 mA
• max Voltage DC: 400 V
• Leads: min 12 cm
• Hipot tested (100%) mit 1500 VAC

• Datasheet

• Pri: 0-120-230-240 V (black-yellow-purple-red)
• Sec 1: 200 V @ 0,085 A (red)
• Sec 2: 6,3 V @ 2 A (green)
• long leads ca 200 mm
• h=35mm d=70mm
• 50/60 Hz EN 61558

Screw set for Torodial-Transformers

1 x Screw M5*40 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t30
tt-t50

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 10 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial
