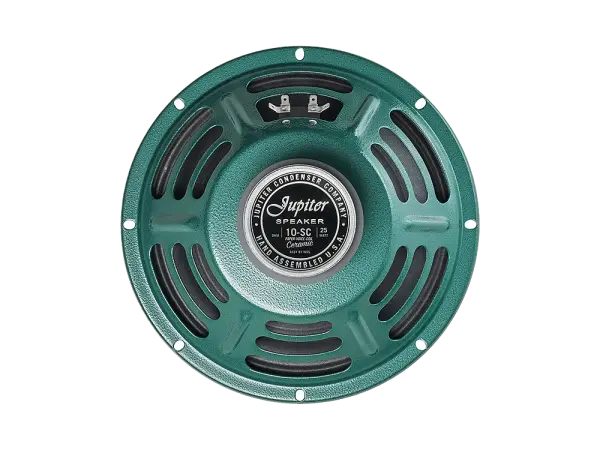

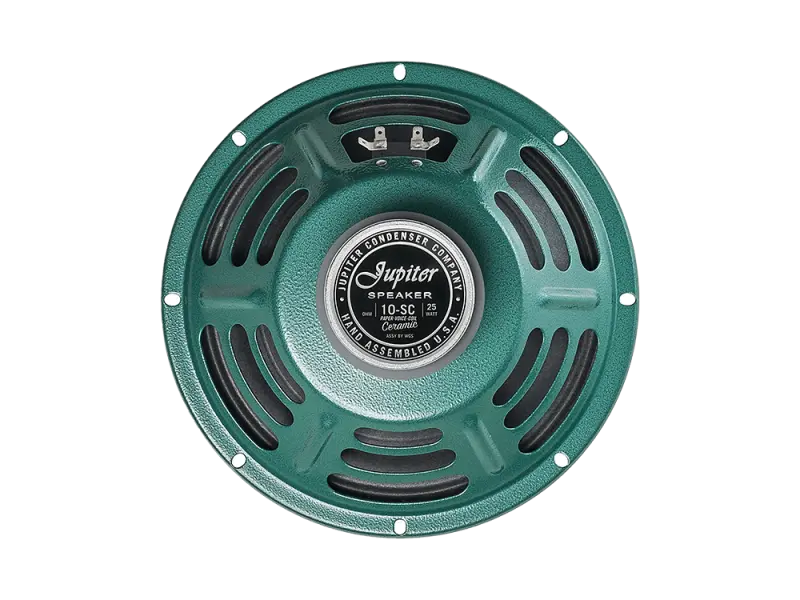

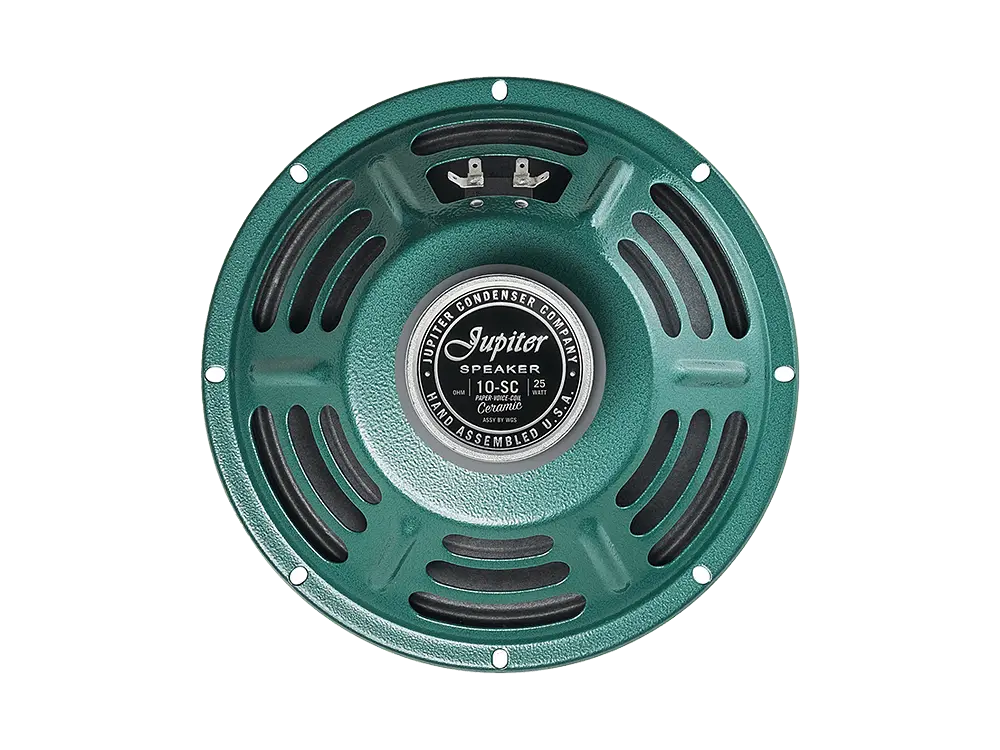

Jupiter 10SC-P 10" / 15 W / 8 Ohm - Paper Coil

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

TT Cable Speaker Cable

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

[content:3210136]

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

Speaker-Cable

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

Screw set for loudspeaker mounting

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Piece of Tolex with a minimum size of 100 x 40 cm
Actual shades may vary

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Features

• with wedge tip

- water-based
- matt drying
- high color intensity and brilliant luminosity
- contains lightfast pigments
- good opacity values
- weatherproof on absorbent substrates

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Metalfilm Resistor - Pack of 5
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

Polyester Film Capacitors

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
