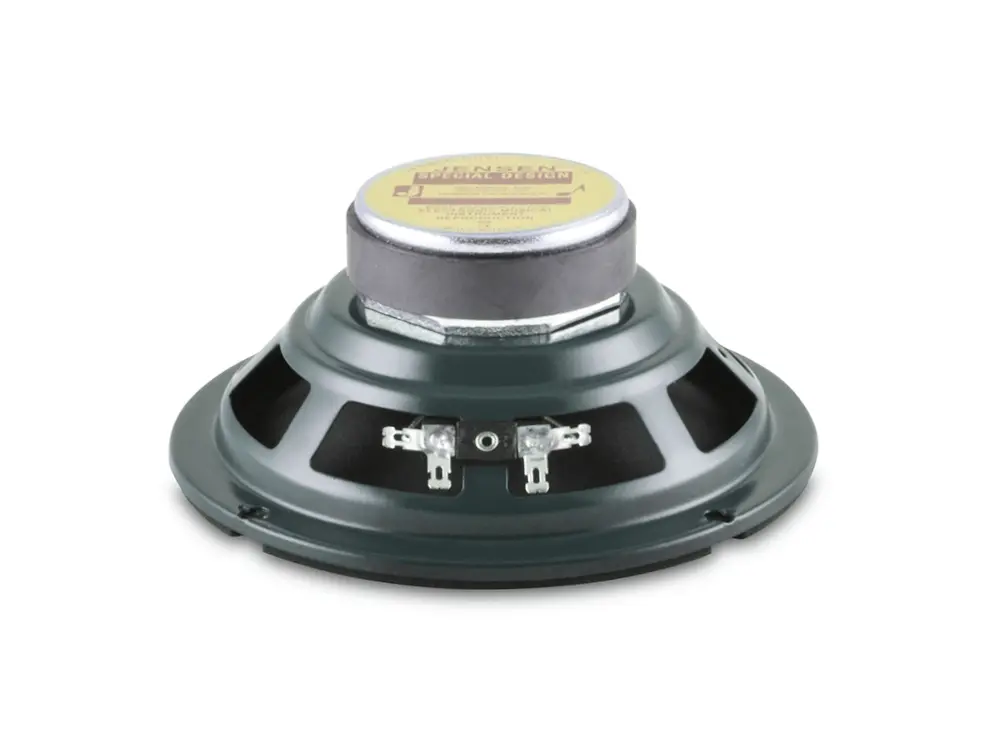

Jensen C6V / 20W / 8 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

TT Cable Speaker Cable

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

[content:3210136]

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

Speaker-Cable

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

Screw set for loudspeaker mounting

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

COMBINATED DOUBLE TRIODE
ECC832 is 12DW7 pre-amplifying double triode. It combines 12AX7 and 12AU7, where the 12AX7 is used as 1st stage and the 12AU7 as 2nd stage.

Files:

• Datasheet

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

Superior large plate format Twin Triode, ideal for use in driver and reverb circuits. Offers superior dissipation compared to NOS versions of this tube.
Excellent 12AT7 choice choice for HiFi and guitar amp circuits.
Electro-Harmonix tubes are all new designs and are of excellent quality. Many OEMs use relabeled Electro-Harmonix vacuum tubes in their amplifiers. If you want great sounding tubes at a very reasonable price, then Electro-Harmonix tubes should be on your list.

Files:

• Datasheet

• Solder with flux core
• Ideal for fine soldering and contact soldering jobs requiring corrosion-resistance and high production working speed.
• DIN EN ISO 9453: Sn60Pb39Cu1
• DIN EN 61190: Sn60Pb38Cu02
• Melting range: 183 to 190 °C
• Solder diameter: 1,0 mm²
• Spool size: 100 g
